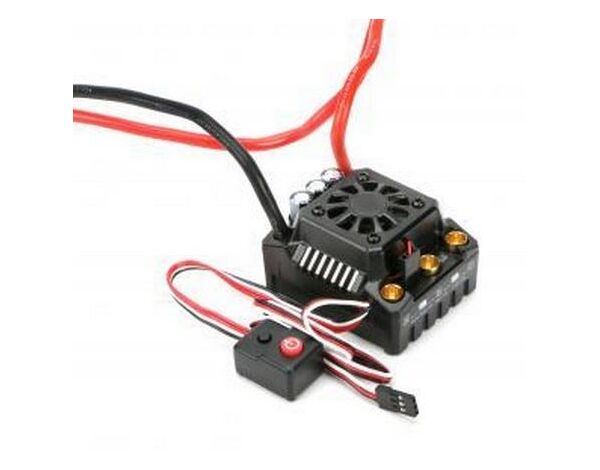

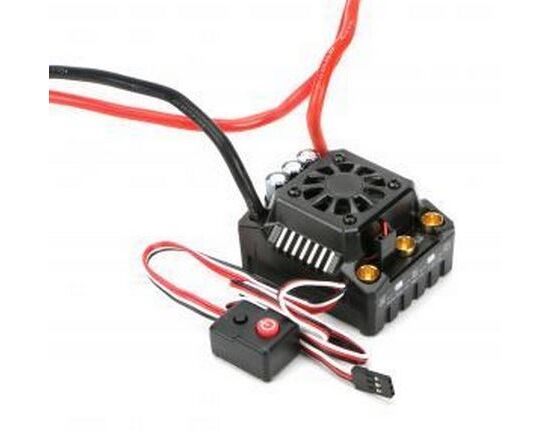

TM191009 Team Magic Elektronisch Fahrtregler - Brushless - Thor - MAX-8 - Wasserdicht - 150A - 14.8-22.2V
Original ESC of E6 BES RTR
Technische Daten:
Steckersystem Akku: XT90 Stecker
Buchsensystem Motor: 6,5mm Goldkontakt
Kont. / Spitzenstrom: 150A/950A
Motortyp: Sensorless Brushless
Anwendungen: 1/8th Touring Car, Buggy, Truggy und Monster Truck mit Highend Konfiguration ür Rennen
Motor Limits Brushless: ◾4S LiPo/12S NiMH: KV=3000 (4274 Größe)
6S LiPo/18S NiMH:KV=2400 (4274 Größe)
LiPo/NiMH Zellen: ◾6-18S NiMH
2-6S LiPo
Innenwiederstand: 0,002 Ohm
BEC Ausgang: 6V/7.2V mit 6A (schaltbar)
Lüfter: Ja (Versorgung über eingebautem BEC)
Größe (LxBxH): 59.8 x 48 x 36.8mm
Gewicht: 173g
Programmier-Eingang: Lüfter / PRG Eingang
ESC Programmierung:
LCD Program Box
LED Program Box
Set-Up Knopf
Programmable (external):
Ja
Manufacturer:
Team Magic
Battery
Application:
- Hobby Racer / Basher
Width mm approx.:
- 48
Height mm approx.:
- 37
Weight g approx.:
- 173
Speed controller
Max. Operating voltage:
- 22.2 Volt
Lipo cell count max.:
- 6
Motors electric
Max. BEC ampere:
- 6
Motor connection:
- 6.5 mm
Brushless kit
Connections:
- Plug and Drive (ohne Lötarbeiten)
BEC tension:
- 6.0 Volt
- 7.2 Volt
Fan/heatsink
Fan:
Ja
Tires
ESC Controller Type:
- Brushless Sensorless
Rims
Color:
- Schwarz
Bodies
Size scale:
- 1:8
Vehicle type:
- Buggy Offroad
- Stadium Truck / Truggy Offroad
- Monster Truck Offroad
- GT Onroad
- Pan Car - 1/8 - Flachbahner Onroad
Remote control
Scope of application:
- Fahrzeuge
Recipient
Max. Continuous current ampere:
- 150
Servo horns
Length mm approx.:
- 60
Balancer extensions
Fits for model:
- Team Magic B8ER - 6S
- Team Magic E6 III BES - 6S
- Team Magic E6 J-Star - 6S
- Team Magic E6 Raptor - 6S
- Team Magic SETH - 6S
Battery connector
Plug:
- XT90
Tool
Waterproof:
Ja
