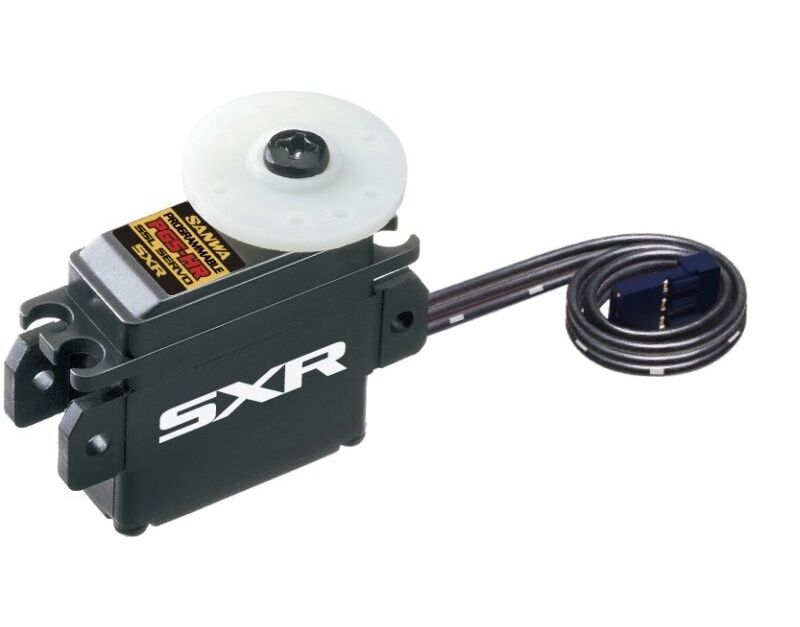

Sanwa PGS-HR Mini Digital Servo 0,1sec/3,8kg

Sanwa PGS-HR Mini Digital Servo 0,1sec/5,8kg (programmierbar)

FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE

●SSL-COMPATIBLE PROGRAMMABLE SERVO

# Compatible with CODE 10 (M12S, EXZES ZZ, MT-44)

Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)

●PGS SETTING GEAR-COMPATIBLE

●Specialized for 1/12 models

●LiPo (1 & 2cell) Battery Support

●Digital Servo

●Coreless Motor

●Full metal gear

Speed

0.10 sec / 60° (6.0 V)

0.16 sec / 60° (3.7 V)

Torque

5.8 kg・cm (6.0 V)

3.8 kg・cm (3.7 V)

Dimensions

27.0 x 21.1 x 30.5 mm

Weight

24 g

●Programmable Servo to be compatible with SSL & Telemetry at Launch

●Setting Adjustment by wireless from Radio

●Setting Adjustment to connect Servo with Setting Gear

●Regarding Temperature, Current, Voltage and Volume Position on Servo inside,

Telemetry-transmission can be passed to Radio.

# Initial Setting on Setting Gear is necessary.

★Setting Items

●SSL-CH (SSL Channel Setting) ●STRETC (Stretcher Adjustment) ●BOOST (BOOST Adjustment)

●D-Band (Dead Band Adjustment) ●MV-MID (Middle Torque Adjustment)

●MV-END (Later Torque Adjustment) ●BREAK (Break Adjustment)

◎MV-HOLD (Power Adjustment at whole area) ◎MV-FRQ (Feeling Adjustment at whole area)

◎MAX-PW (MAX Duty Adjustment)

※ Setting Gear is necessary for ◎setting.

●PGS-Servo Explanation
