HRC 68018C Servo - Analog - Micro - 22.8x11.5x20.8mm / 8g - 1.6kg/cm - Coreless
- Order by 4 PM, delivered tomorrow! (stock items)
- 30 years of RC model building experience
- Top service by professional model builders
- Over 500 manufacturers - 200,000 products
Please sign in so that we can notify you about a reply

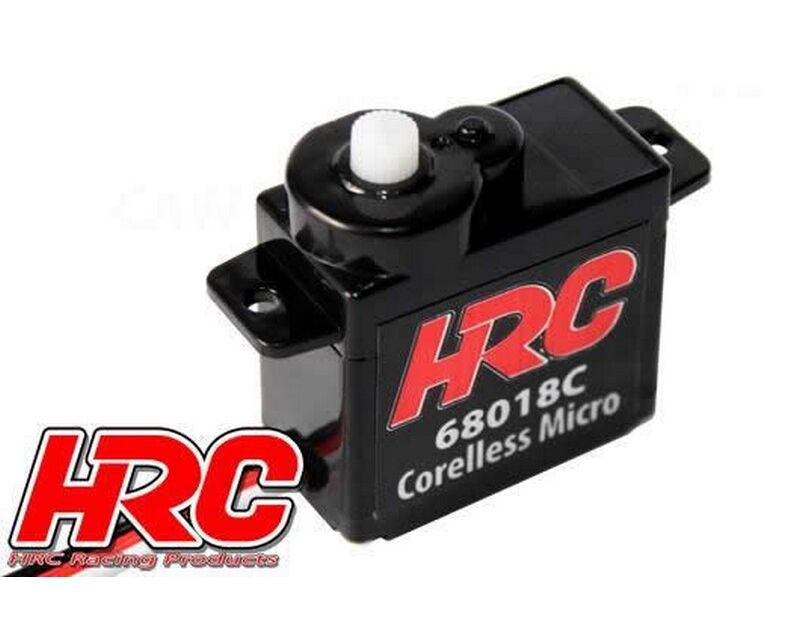

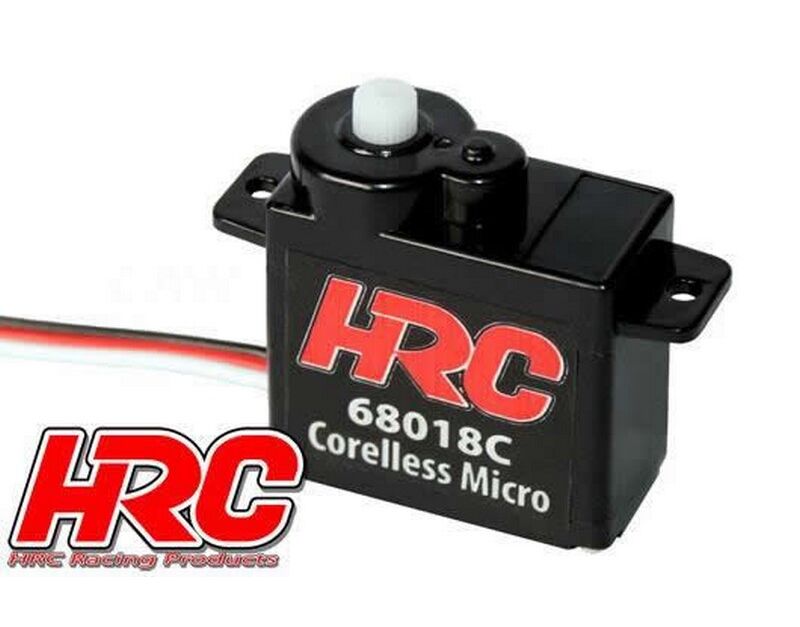

HRC Servo - Analog - Micro - 22.8x11.5x20.8mm / 8g - 1.6kg/cm - Coreless
Analog Micro Servo - Coreless Motor.
Our new High Quality 68018C Micro Servo as been especially designed for airplane models and is able to provide you entire satisfaction in many other usages.
Light and Compact Design (8.0g), Fast and Precise Response, Coreless Motor.
Technical Datas:
Voltage: 4.8 ~ 6.0 Volts
Signal type: Analog
Motor Type: Coreless
Bearings: None
Gear: Plastic Gear
Torque: 1.6kg/cm @ 4.8V // 1.8kg/cm @ 6.0V
Speed: 0.12s/60° @ 4.8V // 0.10s/60° @ 6.0V
Dimensions: 22.8 x 11.5 x 20.8mm
Weight: 8.0g
Case: Nylon Fiber
Cable: 150mm 26AWG
Connector: UNI Plug
Positioning time sec.:
- 0.10
Manufacturer:
HRC Racing Products
Battery
Application:
- Hobby Einsteiger
Width mm approx.:
- 23
Height mm approx.:
- 12
Weight g approx.:
- 8
Chargers
Max. Input voltage:
- 6.0 Volt
Housing material:
Kunstoff
Motors electric
Motor type:
Coreless
Tires
Modulation:
Analog
Remote control
Scope of application:
- Flugmodelle
Servos
Housing size:
- Micro Servo
Positioning force kg:
- 1.8
Transmission:
Kunstoff

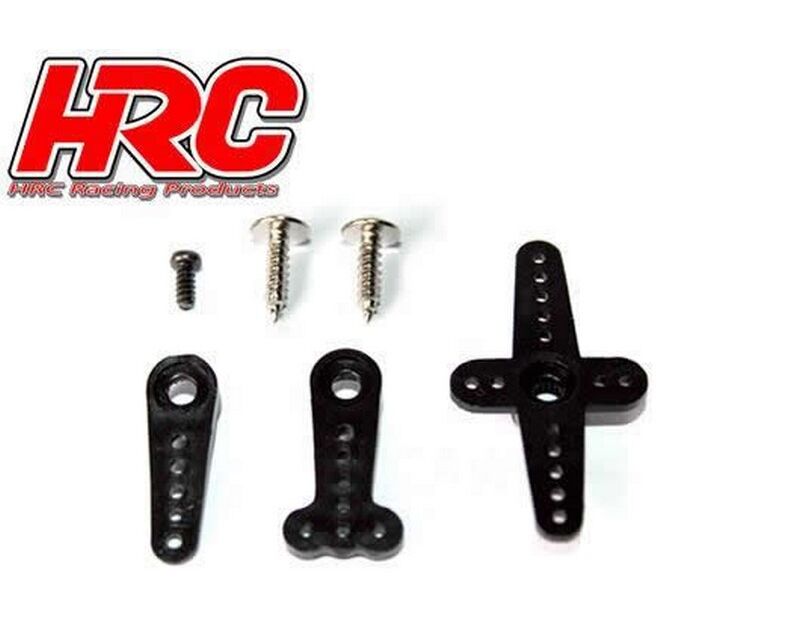

Servo horns
Length mm approx.:
- 21
Battery connector
Plug:
- JR Uniplug
Tool
Waterproof:
Nein
Servo horn recording:
Andere
