FURITEK STINGER BRUSHLESS POWER SYSTEM FCX24

FURITEK STINGER BRUSHLESS POWER SYSTEM FOR FCX24

Support:

- FMS 1:24 FCX24 Power Wagon RTR

- FMS 1:24 FCX24 Chevrolet K5 Blazer RTR

- FMS 1:24 FCX24 Smasher V2 Monster Truck RTR

Features:

• A smaller and lighter brushless motor Micro Komodo for low C.G. setup same like stock

• High performance and powerful 30A/50A brushless ESC with FOC technology

• Built-in Bluetooth module for wireless connection

• Precision CNC Steel pinion for long-lasting operation

• Powerful at low speed but also more powerful and fast at high speed

• High torque at low speed crawling

• Super smooth without any cogging at both low and high speed operation¬

• Lifetime FREE firmware upgrade!

• Drop in replacement for stock brushed system and skid plate.

(Not compatible with STOCK RX board)

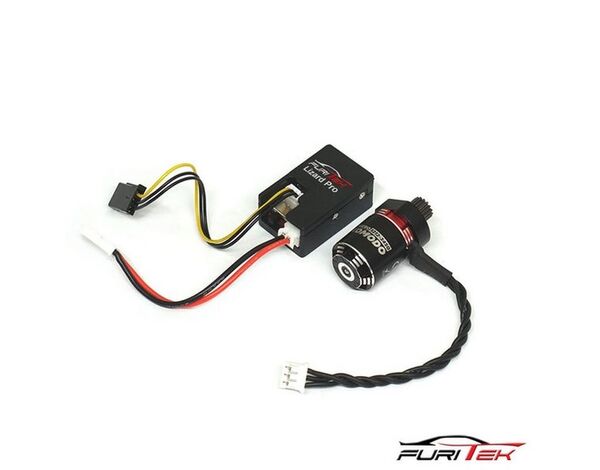

Package includes:

• 1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC WITH FOC TECHNOLOGY

• 1 x built-in Bluetooth module

• 1 x Micro Komodo 1212 3450KV brushless motor

• 1 x 16T CNC STEEL Pinion

• 1 x CNC aluminum motor mount

Motor Features and Specs

Features:

12 Pole hi-torque motor design.

Super thin (0.2 mm) stator laminations---lower eddy losses---maximizes efficiency.

Japansese NMB --High RPM ABEC5 bearings.

Precision balanced rotor, smoothness for best reliability and maximum RPM.

CNC machined 6061 T6 billet aluminum heatsink can.

Precision engineered for maximum energy conversion.

High purity and higher temperature single copper windings ---lower copper losses,

very good heat dissipating--maximizes efficiency.

Specifications:

• KV (RPM/Motor) – 3450

• No-load current @10V – 0.7A

• Watt – 120W

• Battery – 2-3S

• Resistance – 0.16 Ohms

• Max Current – 10A

• Slot/Pole – 12

• Motor size (mm) – 15.5x20.6

• Shaft (mm) – 1.5x6

• Weight (g) – 17.5

ESC Features and Specs

Features:

- Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)

- FOC (Field-oriented control) technology

- Plug & Play designed for AXIAL AX24 crawlers

- 5V/ 6.5V 2.5A Built-in BEC (config via app)

- Support 2S-3S lipo battery - Mini size and lightweight

- Super easy programming via App on both Android and IOS

- Firmware update available (Bluetooth module required)

- Real-time telemetry up to 10Hz - Ability to run with stock TX/RX or any other TX/RX

Specifications:

- Support 2S-3S lipo battery

- Constant current: 30A

- Burst current: 50A

- Built-in Switch power

- Dimension (mm): 28(L)x 15.5(W)

- Weight: 3.7 gram
