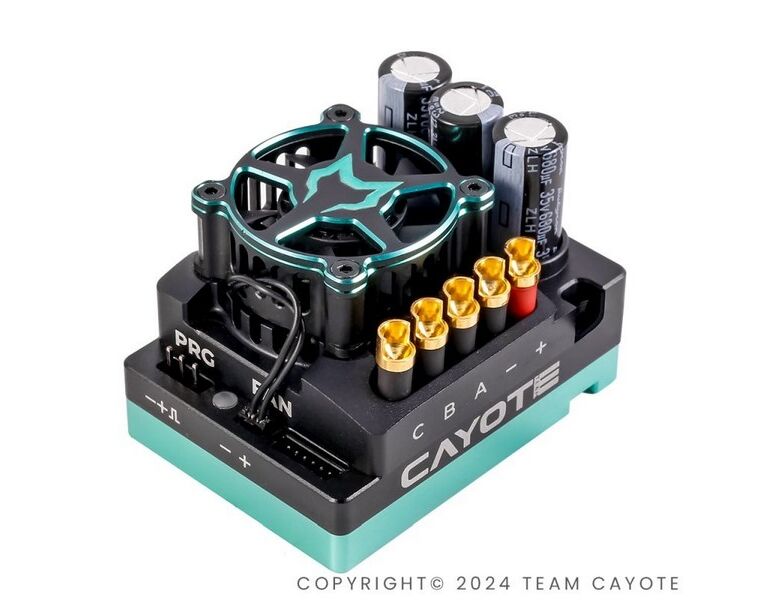

CAYOTE Racing ESC CREST 8 200A/1080A 2-4S LiPo
- Order by 4 PM, delivered tomorrow! (stock items)
- 30 years of RC model building experience
- Top service by professional model builders
- Over 500 manufacturers - 200,000 products
Please sign in so that we can notify you about a reply
CAYOTE Racing ESC CREST 8 200A/1080A 2-4S LiPo BEC 6.0V/7.4V 8A
Scale: 1/8
Mode: Sensor/Sensorless
Continuous Current: 200A
Peak Current: 1080A
Battery: 2-4S Lipo
BEC Output Voltage: 6.0/7.4V
BEC Output Current: 8A Cont. / 12A Peak
Firmware Upgrade: Supported
Data Recording: Extreme value, Real-time Data
Size: 56.8x41.6x40mm
Weight: 122g
Basic Information
Compatibility
Motor: 4268/4274≤3000KV with 4S Lipo
1/8th Vehicle: Buggy/Truck(Truggy)/Etc.
1/8th Vehicle: Short Truck/Big Foot/Etc.
Wiring and Cooling
Output Wires: Black-10AWG-180MMx3
Input Wires: Red-13AWG-180MMx1, Black:-13AWG-180MM
Cooling Fan: 30 x 30 x 10 mm, 5-8.4V BEC
ESC Programming Via
Xlink Program Box Compatible
B-Tune Connect (Optional)
Internal Program (Port)(APP Control)
Scale: 1/8
Mode: Sensor/Sensorless
Continuous Current: 200A
Peak Current: 1080A
Battery: 2-4S Lipo
BEC Output Voltage: 6.0/7.4V
BEC Output Current: 8A Cont. / 12A Peak
Firmware Upgrade: Supported
Data Recording: Extreme value, Real-time Data
Size: 56.8x41.6x40mm
Weight: 122g
Basic Information
Compatibility
Motor: 4268/4274≤3000KV with 4S Lipo
1/8th Vehicle: Buggy/Truck(Truggy)/Etc.
1/8th Vehicle: Short Truck/Big Foot/Etc.
Wiring and Cooling
Output Wires: Black-10AWG-180MMx3
Input Wires: Red-13AWG-180MMx1, Black:-13AWG-180MM
Cooling Fan: 30 x 30 x 10 mm, 5-8.4V BEC
ESC Programming Via
Xlink Program Box Compatible
B-Tune Connect (Optional)
Internal Program (Port)(APP Control)
Alle Modelle Arten
Motor turn max.:
Bis max. 3000kv
Akku
Application:
- Competition Wettbewerb
Width mm approx.:
- 42
Height mm approx.:
- 40
Weight g approx.:
- 122
Fahrtenregler
Max. Operating voltage:
- 14.8 Volt
Lipo cell count max.:
- 4
Motoren Elektro
Max. BEC ampere:
- 6
Brushless Set
Connections:
- Lötarbeiten Erforderlich
BEC tension:
- 6.0 Volt
- 7.4 Volt
Lüfter / Kühlkörper
Fan:
Ja
Reifen
Controller type:
- Brushless Sensored
Karosserien
Size scale:
- 1/8
Vehicle type:
- Buggy Offroad
- Stadium Truck / Truggy Offroad
- Monster Truck Offroad
- GT Onroad
- Pan Car - 1/8 - Flachbahner Onroad
Fernsteuerung
Scope of application:
- Fahrzeuge
Empfänger
Max. Continuous current ampere:
- 200
Servohörner
Length mm approx.:
- 57
Balancer Verlängerungen
Fits for model:
- ARC R8E 1/8 Elektro Onroad
- Asso RC8B3 E
- HB E817T 4WD Truggy - 1/8
- HB E819 4WD Buggy - 1/8
- HB E8T 4WD Truggy - 1/8
- Kyosho INFERNO GT2 - 4S
- Kyosho Inferno MP10E Buggy
- Kyosho Inferno MP9E Buggy
- Mugen MBX-8 ECO
- Mugen MBX-8T ECO
- Mugen MGT7 E
- Serpent SRX8 GTE - 1/8
- Serpent SRX8 Truggy-E - 1/8
- Serpent SRX8-E Buggy - 1/8
- Sworkz S350
- Sworkz S35
- Sworkz S35 E
- Sworkz S35 GT
- Team Corally SSX-8 - 1/8 Pan Car
- WRC GT4E - 1/8 GT Onroad
- WRC GTXEP - 1/8 Onroad Pan Car
- WRC SBXE - 1/8 Buggy
- Xray GTXE
- Xray RX8E
- Xray XB8E
- Xray XT8E
Akkustecker
Plug:
- Kein Stecker vormontiert
Werkzeug
Waterproof:
Nein
