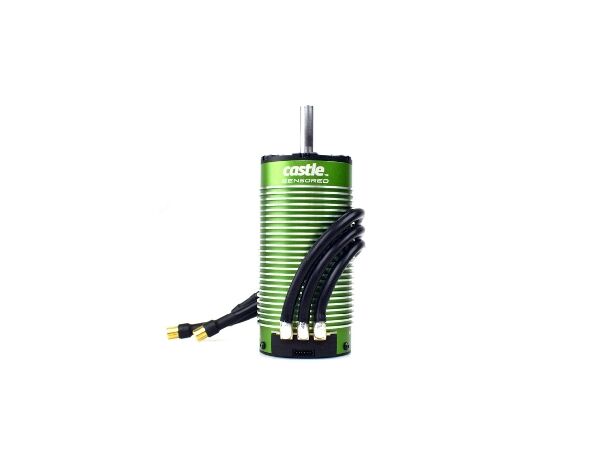

Castle MOTOR EXTREME 2028 800kv BL
Motor Specs
Input Voltage Range:
12S max (8s max with XLX2)
Kv: 800
Max. RPM: 45,000
Motor Size: Length: 4.4" (113.2mm)
Diameter: 2.2" (57mm)
Shaft Size:
Length: 30mm
Diameter: 8mm
Weight (w/wires): 44 oz. / 1.25kg
Mounting Hole Specifications: 4mm @ 30mm spacing
Cooling Fan: Available, but not included (011-0019-00)
Connectors: 8.0mm male bullets.
Items Needed for Operation: N/A
Product Use Statements:
Do not use mounting screws that extend more than 5mm into the front of the motor. Using too long of a screw can result in damage to the motor's windings and will not be covered by the warranty.
Application Guidelines: N/A
Max. Recommended Vehicle Weight:
Vehicles weighing less than 30lbs (13,6kg)
Tech Notes:
Running modes: Sensorless and Sensored
Water Resistant Design:
The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal lo
Manufacturer:
Castle Creations
Akku
Application:
- Hobby Racer / Basher
Weight g approx.:
- 1250
Fahrtenregler
Max. Operating voltage:
- 44.4 Volt
Fan size:
- 1/5 - 1/6 Big Block
Lipo cell count max.:
- 12
Motoren Elektro
Motor type:
Brushless
Shaft diameter mm:
- 8 mm
Speed KV per volt:
800
Number of poles:
- 4
Motor connection:
- 8 mm
Reifen
Controller type:
- Brushless Sensored
- Brushless Sensorless
Diameter mm approx.:
- 57
Fernsteuerung
Scope of application:
- Fahrzeuge
Output max. Watt approx.:
- 7000
Servohörner
Length mm approx.:
- 113
