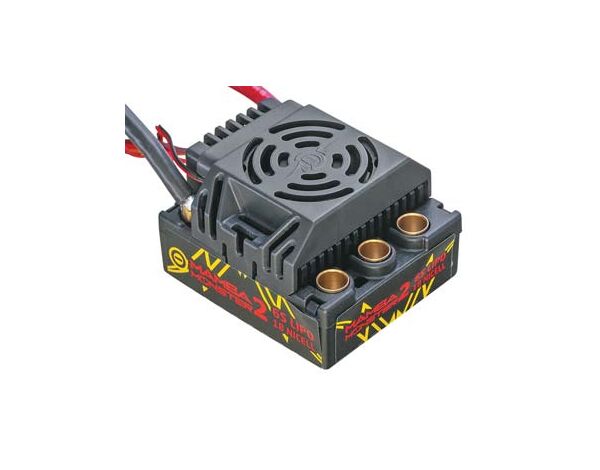

Castle Creations 1/8 Mamba Monster 2 ESC WP
- Order by 4 PM, delivered tomorrow! (stock items)
- 30 years of RC model building experience
- Top service by professional model builders
- Over 500 manufacturers - 200,000 products
Please sign in so that we can notify you about a reply
Mamba Monster Brushless Regler 1/8
(Waterproof)
Kann mit bis zu 6S Lipos betrieben werden....
Mamba Monster 2 ESC Specs
Input voltage
MIN: 2s LiPo; MAX: 6s LiPo
Max continuous amperage
120A (full throttle continuous operation with cooling airflow)
BEC specifications User selectable output between 5 and 7 volts
Operating environment Waterproof* design allows for use in nearly any environment.
Brake Proportional
Reversible Yes - with lockout
Size L: 1.86" (47mm) W: 2.19" 56mm) H: 1.33" (34mm)
Weight (without battery connector soldered to ESC) 3.93 oz 111.5 g
*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit. Fan is not water resistant. Remove fan from ESC before exposing vehicle to liquids.
Programmable (external):
Ja
Manufacturer:
Castle Creations
All models types
Motor turn max.:
Bis max. 2500kv
Battery
Application:
- Hobby Racer / Basher
Width mm approx.:
- 46
Height mm approx.:
- 34
Weight g approx.:
- 111
Speed controller
Max. Operating voltage:
- 22.2 Volt
Lipo cell count max.:
- 6
Motors electric
Max. BEC ampere:
- 3
Motor connection:
- 6.5 mm
Brushless kit
Connections:
- Lötarbeiten Erforderlich
BEC tension:
- 5.0 Volt
- 7.2 Volt
Fan/heatsink
Fan:
Ja
Tires
ESC Controller Type:
- Brushless Sensorless
Bodies
Size scale:
- 1:8
Vehicle type:
- Buggy Offroad
- Stadium Truck / Truggy Offroad
- Monster Truck Offroad
- Short Course Truck
Remote control
Scope of application:
- Fahrzeuge
Recipient
Max. Continuous current ampere:
- 120
Servo horns
Length mm approx.:
- 57
Battery connector
Plug:
- Kein Stecker vormontiert
Tool
Waterproof:
Ja
