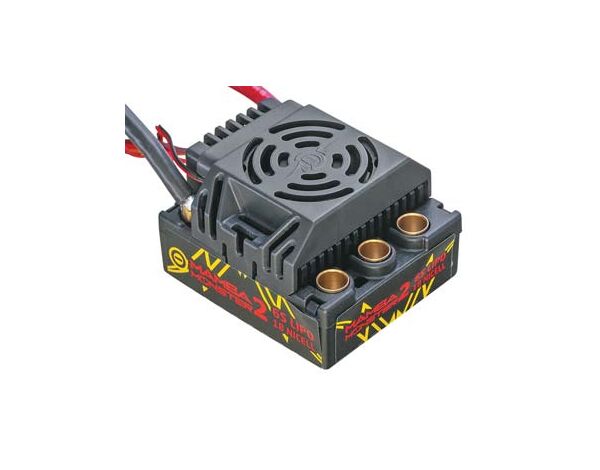

Castle Creations 1/8 Mamba Monster 2 ESC WP
- Order by 4 PM, delivered tomorrow! (stock items)
- 30 years of RC model building experience
- Top service by professional model builders
- Over 500 manufacturers - 200,000 products
Please sign in so that we can notify you about a reply
Mamba Monster Brushless Regler 1/8
(Waterproof)
Kann mit bis zu 6S Lipos betrieben werden....
Mamba Monster 2 ESC Specs
Input voltage
MIN: 2s LiPo; MAX: 6s LiPo
Max continuous amperage
120A (full throttle continuous operation with cooling airflow)
BEC specifications User selectable output between 5 and 7 volts
Operating environment Waterproof* design allows for use in nearly any environment.
Brake Proportional
Reversible Yes - with lockout
Size L: 1.86" (47mm) W: 2.19" 56mm) H: 1.33" (34mm)
Weight (without battery connector soldered to ESC) 3.93 oz 111.5 g
*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit. Fan is not water resistant. Remove fan from ESC before exposing vehicle to liquids.
Programmable (external):
Ja
Manufacturer:
Castle Creations
Alle Modelle Arten
Motor turn max.:
Bis max. 2500kv
Akku
Application:
- Hobby Racer / Basher
Width mm approx.:
- 46
Height mm approx.:
- 34
Weight g approx.:
- 111
Fahrtenregler
Max. Operating voltage:
- 22.2 Volt
Lipo cell count max.:
- 6
Motoren Elektro
Max. BEC ampere:
- 3
Motor connection:
- 6.5 mm
Brushless Set
Connections:
- Lötarbeiten Erforderlich
BEC tension:
- 5.0 Volt
- 7.2 Volt
Lüfter / Kühlkörper
Fan:
Ja
Reifen
Controller type:
- Brushless Sensorless
Karosserien
Size scale:
- 1/8
Vehicle type:
- Buggy Offroad
- Stadium Truck / Truggy Offroad
- Monster Truck Offroad
- Short Course Truck
Fernsteuerung
Scope of application:
- Fahrzeuge
Empfänger
Max. Continuous current ampere:
- 120
Servohörner
Length mm approx.:
- 57
Akkustecker
Plug:
- Kein Stecker vormontiert
Werkzeug
Waterproof:
Ja
