Yeah Racing Low Profile Digital High Speed Servo
- Order by 4 PM, delivered tomorrow! (stock items)
- 30 years of RC model building experience
- Top service by professional model builders
- Over 500 manufacturers - 200,000 products
Please sign in so that we can notify you about a reply

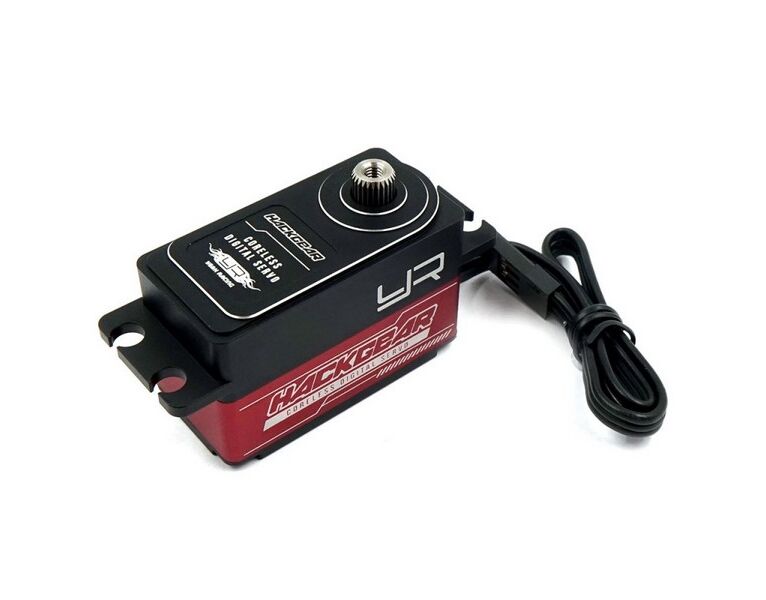

YE-0033RD Yeah Racing Aluminum Case Low Profile Digital High Speed Coreless Servo For 1/10 RC Red
Feature:
For: 1/10 Drift, On Road RC
Material: Aluminum Case
Premium Value at lower price point
Long wears titanium gear and copper gears
Digital precision provides great accuracy and performance
Ball bearing-supported output 25T shaft
Compatible with all types of Radio system
ESC Min BEC Output Recommendation: 5.75@3A
Specification:
Type: Digital
Operating Voltage Range: 4.8 -6.0Volts DC
Bearing Type:Dual Ball Bearings
Speed (s/60¢[email protected]/6.0V): 0.10/ 0.09
Torque kg./cm. (4.8V/6.0V): 6.72/7.94
Size: 40.9mm x 20mm x 25.2mm
Motor Type: Coreless
Dead Band Width: 2µs
Connector Wire Length: 11.8 in. / 300 mm.
Connector Wire Gauge: 25 AWG Black Wire
Connector Type: Futaba
Gear Type: Titanium Gears + Copper Gears
Frequency: 330Hz
Shaft: 6mm 25T

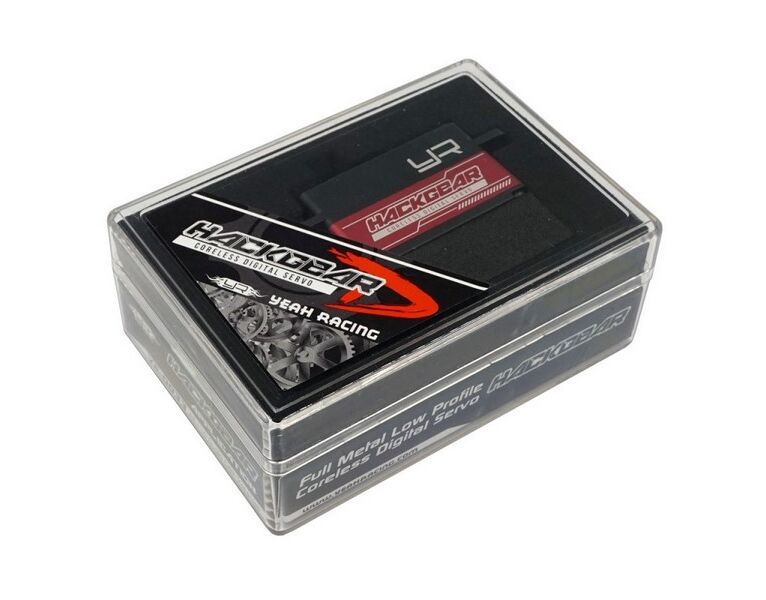

Include:
Hackgear Aluminum Low Profile Servo (1 pc)
Servo Horns (1 pc)
Mounting Hardware (1 pack)
Akku
Application:
- Hobby Racer / Basher
- Competition Wettbewerb
Width mm approx.:
- 41
Height mm approx.:
- 20
Weight g approx.:
- 51
Ladegeräte
Max. Input voltage:
- 8.4 Volt
Housing material:
Komplett Metall
Motoren Elektro
Motor type:
Coreless
Reifen
Modulation:
Digital
Felgen
Color:
- Rot
Fernsteuerung
Scope of application:
- Fahrzeuge
Servos
Housing size:
- Low Profile Servo
Positioning force kg:
- 8.0
Transmission:
Metall
Servohörner
Length mm approx.:
- 25
Akkustecker
Plug:
- JR Uniplug
Werkzeug
Waterproof:
Nein
Servo horn recording:
25 Zähne (Futaba - Savöx - Traxxas usw.) 25T
