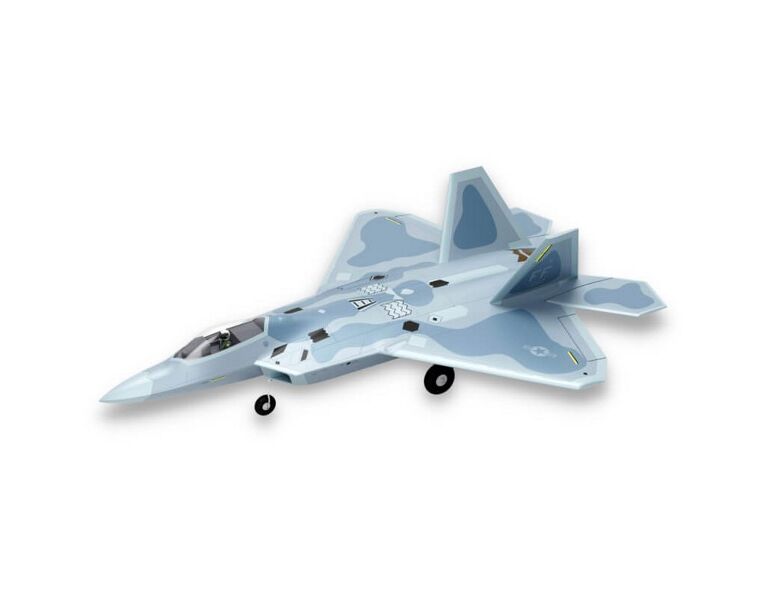

XFLY TWIN 40 F-22 EDF 702 JET

XFLY TWIN 40 F-22 EDF 702 JET w/o TX/RX/BATT

XFly Model is proud to announce its first scale jet F-22 Raptor in the twin 40mm EDF lineup. For the purpose of making it as most streamlined and true-to-scale as possible, XFly team equips the F-22 with twin power system setup and reserves scale details including air inlet, cockpit, nozzle and full-flying horizontal stabs.

The factory-installed power system, including twin efficient 1413-KV5000 brushless motors and twin 20A brushless ESCs, paired with a 4S LiPo battery, delivers an abundance of thrust for fast climbs, rolls, loops and endless fun for high alpha flying due to the F-22’s low wing load and full flying stabs. A flight time of around 3-8 mins can be achieved with proper throttle management.

Perfectly fitted landing gear design helps keep the plane lightweight and make take off & landing smooth. Landing gears can be easily removed for more speed and vertical performance while utilizing the molded-in finger grips. Thanks to the F-22’s high alpha capability, you can even get hold of the plane by hand with an ease when landing.

Features

Streamlined and true-to-scale design

Efficient twin power system setup delivering an abundance of thrust for fast climbs, rolls, loops

Low wing load and full flying stabs design for excellent high alpha capability

Perfectly fitted landing gear design for smooth takeoff and landing

Extended flight time of 3-8 mins when using recommended 4S 1300-2600mAh LiPo battery

5 x 9g Servos

2 x 20A Brushless ESC

2 x 1413-KV5000 Brushless Motors

2 x 40mm EDF Fan Units

All components can be assembled quickly without glue needed

Molded-in finger grips for easy hand launch

Specifications

Wingspan: 702mm/27.6in

Overall Length: 955mm/37.6in

Wing Load: 89g/dm²

Wing Area: 10.6dm²

Flying Weight: 950g

Motor: 2 x 1413-KV5000

ESC: 2 x 20A

Servos: 5 x 9g servos

CG: 80mm from the leading edge

EDF Size: 2 x 40MM EDF 12-Blade

Retract: No

Flap: No

Landing Gear: Fixed main landing gear, steerable nose gear

Recommended Radio: Minimum 5 channels

Recommended Environment: Outdoor

Battery Capacity: 4S 1300-2600mAh

Battery Connector: XT60

Flying Time: 3-8 mins

Mounting Duration: Around 10 minutes

Skill Level: Intermediate

Age Level: 14 years +

Required To Complete

Minimum 5 channels Radio

5 channels Receiver

4S 1300-2600mAh Battery

4S Battery Charger
