THRUST Impeller Antrieb V2 40mm | KV=8600

Write a review
CHF 81.90
Including tax
Not in stock at the supplier. Delivery date unknown. (Delivery time 4-12 weeks)
+
15553

Further products by Pichler Modellbau >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products

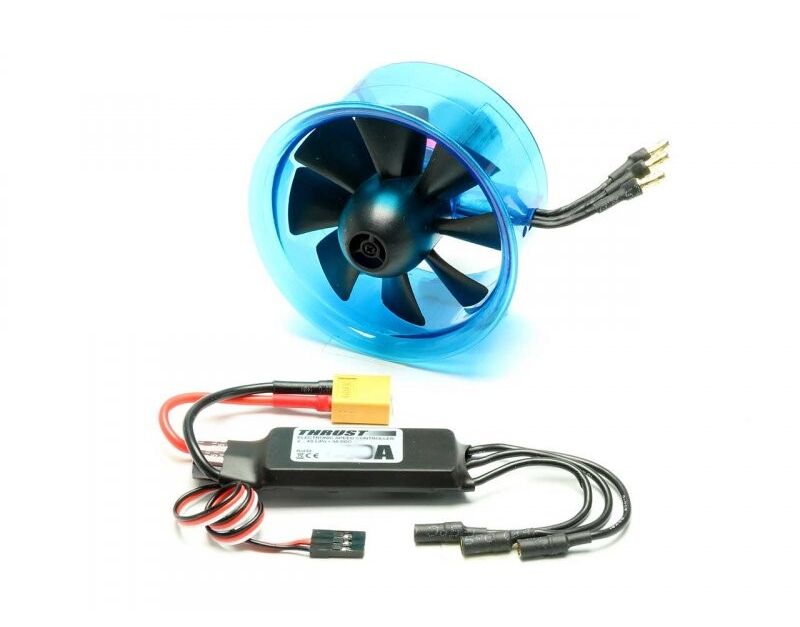

THRUST Impeller Antrieb V2 40mm | KV=8600

THRUST Impellerantriebe sind die erste Wahl wenn es um kleine Impellerantriebe geht.

Sie erhalten ein komplettes Antriebsset inklusive Impeller, Motor und Brushless Regler. Alles ist steckerfertig, werksseitig montiert und feingewuchtet. Einfach den passenden LiPo Akku anstecken (Sonderzubehör) und los geht's!


Technische Daten

Durchmesser Ø =40mm
Gewicht: Motor + Impeller = 45g / Regler (ESC) = 52g
Leerlaufdrehzahl pro Volt (KV) = 8600 U/Min-1
Leistung max./Power= 550W
Schub / Thrust max.= 480g
Stromaufnahme/Amperage= 43A
LiPo = 3S

Lieferumfang

THRUST Impeller und Brushless Motor (werksseitig montiert)
THRUST Brushless Regler 50A (BEC 2A) inkl. XT Stecker

Sonderzubehör

LiPo Akku LEMONRC 850-7,4V, #C9454

Akku

Application:
  • Hobby Einsteiger
  • Hobby Racer / Basher

Fahrtenregler

Max. Operating voltage:
  • 11.1 Volt
Lipo cell count max.:
  • 3

Motoren Elektro

Motor type:
Brushless
Number of poles:
  • 4

Brushless Set

Connections:
  • Plug and Drive (ohne Lötarbeiten)
BEC tension:
  • 6.0 Volt

Lüfter / Kühlkörper

Fan:
Nein

Fernsteuerung

Scope of application:
  • Flugmodelle
Output max. Watt approx.:
  • 840
  • 8500

Empfänger

Max. Continuous current ampere:
  • 40

Servohörner

Length mm approx.:
  • 30

Akkustecker

Plug:
  • XT60

Befestigungstechnik

Diameter mm:
  • 40

Werkzeug

Waterproof:
Nein
