Team Corally Torox 135 Brushless Regler 2-4S

Write a review
CHF 85.90
Including tax
Available immediate delivery: 1 pcs.
+ −
Add to comparison list Add to wish list Rate this product
C-54012

Further products by Team Corally >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products

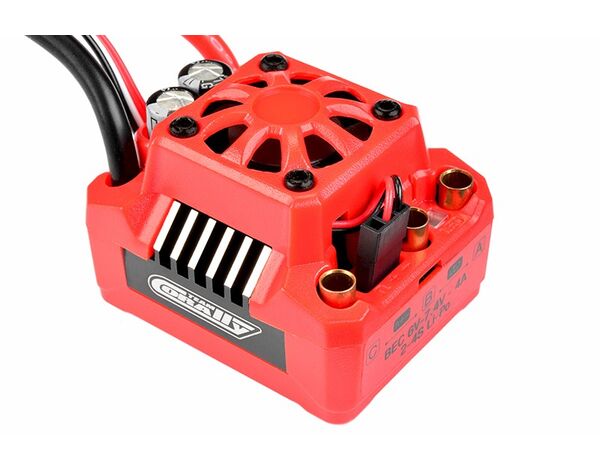

C-54012 Team Corally - Speed Controller - Torox 135 - Brushless - 2-4S

ESC - Application

1/10 - 1/8 Cars

ESC - Motor Type

Sensored & Sensorless Brushless Motors

ESC - Motor Control

ESC - Level

Hobby - Sport - Medium Class

ESC - Programming

ESC - Firmware Update

ESC - Telemetrie Aux.

ESC - Data Logging

ESC - Real-Time Data

ESC - Dimensions

ESC - Length (mm)

49

ESC - Width (mm)

39,5

ESC - Thickness (mm)

34,7

ESC - Wires (AWG) - Battery

12 AWG

ESC - Wires (AWG) - Motor

ESC - Connector - Battery

XT-90

ESC - Weight (g)

110

ESC - Specs

ESC- Input Voltage Range (V)

2S - 4S Li-Po

ESC - Current - Cont. (A)

135

ESC - Current - Peak (A)

850

ESC - Current - Burst (A)

ESC - BEC - Voltage (V)

Select. 6.0V - 7.4V

ESC - BEC - Cont. (A)

4

ESC - BEC - Peak (A)

ESC - Protection

Waterproof

ESC - Cooling Fan

Yes, 25mm

ESC - Case Material

Aluminium + Plastic

Programmable (external):
Ja
Manufacturer:
Team Corally

Alle Modelle Arten

Motor turn max.:
Bis max. 4000kv

Akku

Application:
  • Hobby Racer / Basher
Width mm approx.:
  • 40
Height mm approx.:
  • 35
Weight g approx.:
  • 110

Fahrtenregler

Max. Operating voltage:
  • 14.8 Volt
Lipo cell count max.:
  • 4

Motoren Elektro

Max. BEC ampere:
  • 4
Motor connection:
  • 4.0 mm

Brushless Set

Connections:
  • Plug and Drive (ohne Lötarbeiten)
BEC tension:
  • 6.0 Volt
  • 7.4 Volt

Lüfter / Kühlkörper

Fan:
Ja

Reifen

Controller type:
  • Brushless Sensorless

Karosserien

Size scale:
  • 1/10
  • 1/8
Vehicle type:
  • Buggy Offroad
  • Stadium Truck / Truggy Offroad
  • Monster Truck Offroad
  • Short Course Truck

Fernsteuerung

Scope of application:
  • Fahrzeuge

Empfänger

Max. Continuous current ampere:
  • 120

Servohörner

Length mm approx.:
  • 50

Balancer Verlängerungen

Fits for model:
  • Team Corally Radix XP 4S
  • Team Corally Syncro 4 - 1/8 - 4S

Akkustecker

Plug:
  • XT90

Werkzeug

Waterproof:
Ja

> C-54012_TOROX 135_Anleitung_DE
