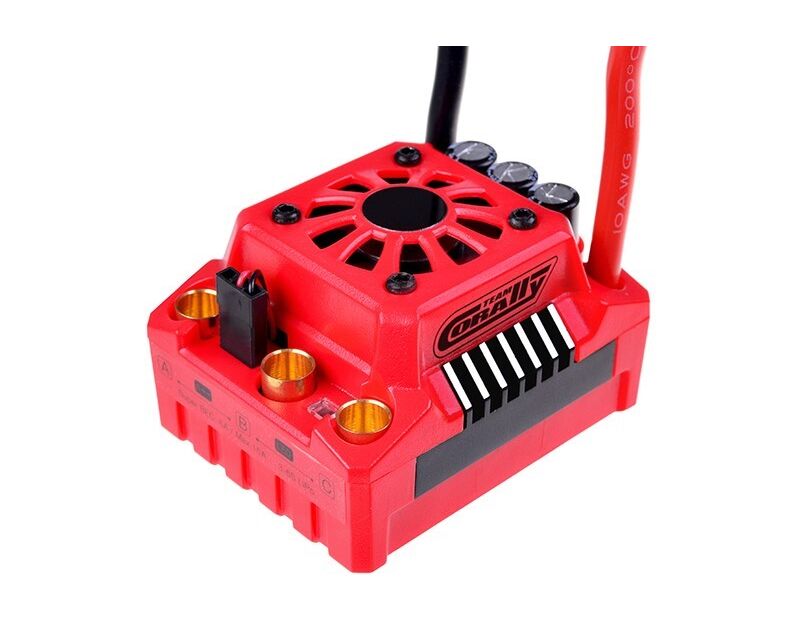

C-54011 Speed Controller - TOROX 185 - Brushless
- Order by 4 PM, delivered tomorrow! (stock items)
- 30 years of RC model building experience
- Top service by professional model builders
- Over 500 manufacturers - 200,000 products
Please sign in so that we can notify you about a reply
Team Corally Speed Controller - TOROX 185 - Brushless - 2-6S
General Info
Brand
Team Corally
Item Nr
C-54011
Barcode
8718057189174
ESC - Specs
ESC- Input Voltage Range (V)
3S - 6S Li-Po
ESC - Current - Cont. (A)
150
ESC - Current - Peak (A)
950
ESC - Current - Burst (A)
ESC - BEC - Voltage (V)
Select. 6.0V - 7.4V
ESC - BEC - Cont. (A)
6
ESC - BEC - Peak (A)
ESC - Protection
Waterproof
ESC - Cooling Fan
Yes, 30mm
ESC - Case Material
Aluminium + Plastic
ESC - Programming
ESC - Firmware Update
ESC - Telemetrie Aux.
ESC - Data Logging
ESC - Real-Time Data
ESC - Dimensions
ESC - Length (mm)
60
ESC - Width (mm)
48
ESC - Thickness (mm)
37
ESC - Wires (AWG) - Battery
10 AWG
ESC - Wires (AWG) - Motor
ESC - Connector - Battery
XT-90 2x
ESC - Weight (g)
189
ESC - Application
ESC - Application
1/10 - 1/8 Cars
ESC - Motor Type
Sensored & Sensorless Brushless Motors
ESC - Motor Control
Forward - Brake - Reverse
ESC - Level
Hobby - Sport - Medium Class
Programmable (external):
Ja
Manufacturer:
Team Corally
Alle Modelle Arten
Motor turn max.:
Bis max. 3000kv
Akku
Application:
- Hobby Racer / Basher
Width mm approx.:
- 48
Height mm approx.:
- 42
Weight g approx.:
- 178
Fahrtenregler
Operating modes:
- Vorwärts / Bremse
- Vorwärts / Bremse / Rückwärts
Max. Operating voltage:
- 22.2 Volt
Hill Brake:
Nein
Blinky Mode Zero Timing:
Nein
Lipo cell count max.:
- 6
Motoren Elektro
Max. BEC ampere:
- 3
Motor connection:
- 6.5 mm
Brushless Set
Connections:
- Lötarbeiten Erforderlich
BEC tension:
- 6.0 Volt
Lüfter / Kühlkörper
Fan:
Ja
Reifen
Controller type:
- Brushless Sensorless
Karosserien
Size scale:
- 1/8
Vehicle type:
- Buggy Offroad
- Stadium Truck / Truggy Offroad
- Monster Truck Offroad
- Short Course Truck
Fernsteuerung
Scope of application:
- Fahrzeuge
Empfänger
Max. Continuous current ampere:
- 150
Servohörner
Length mm approx.:
- 60
Balancer Verlängerungen
Fits for model:
- Team Corally ASUGA XLR - 6S
- Team Corally Dementor / Jambo XP 6S
- Team Corally Kagama XP 6S
- Team Corally Kronos / Muraco XP 6S
- Team Corally Punisher XP 6S
- Team Corally Python / Radix XP 6S
- Team Corally Radix XP 4S
- Team Corally Shogun XP 6S
- Team Corally SPARK XB6 / XB-6 - 6S
Akkustecker
Plug:
- XT90
Werkzeug
Waterproof:
Ja
