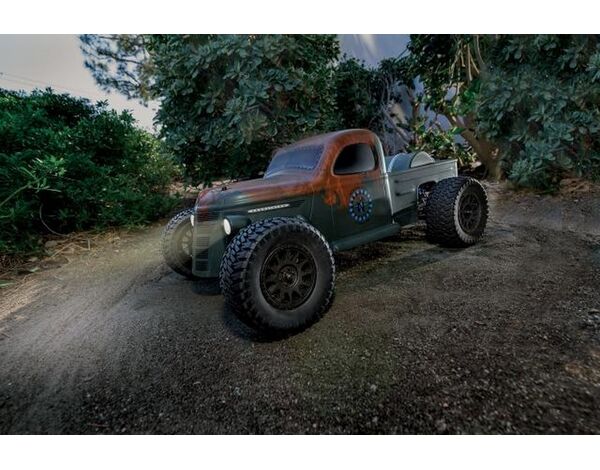

Team Associated Trophy Rat RTR 1/10 Short Course Truck

70019 Team Associated Trophy Rat RTR

Starting life as a 1937 International shell, the full-scale Trophy Rat has gone over 1,500 man hours (and counting) from conceptualization to completion. The goal for this build was to accomplish the perfect blend between a trophy truck and a rat rod with an LS6 Corvette engine for a heart. Something that could be used as a daily driver, but also take to the King of Hammers or local road course.

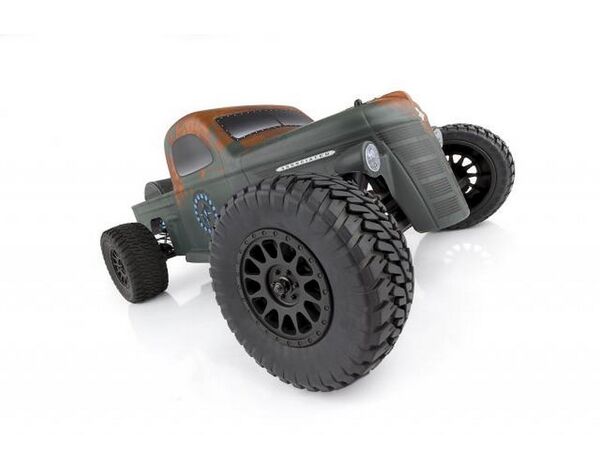

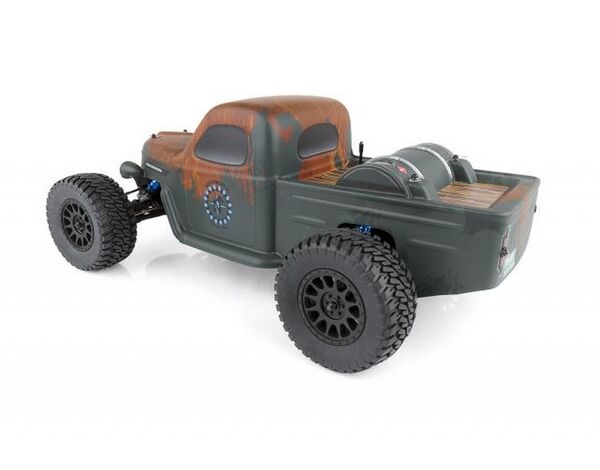

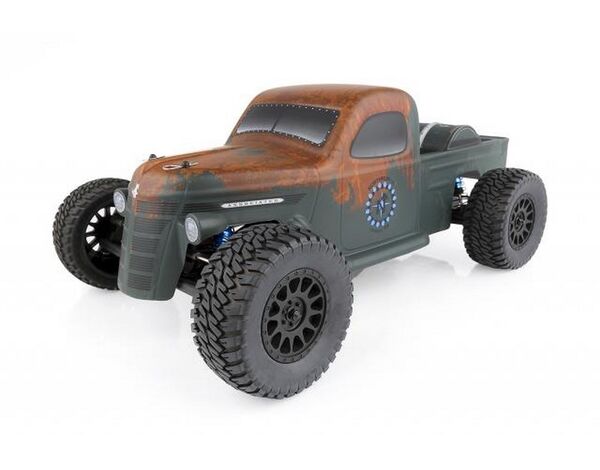

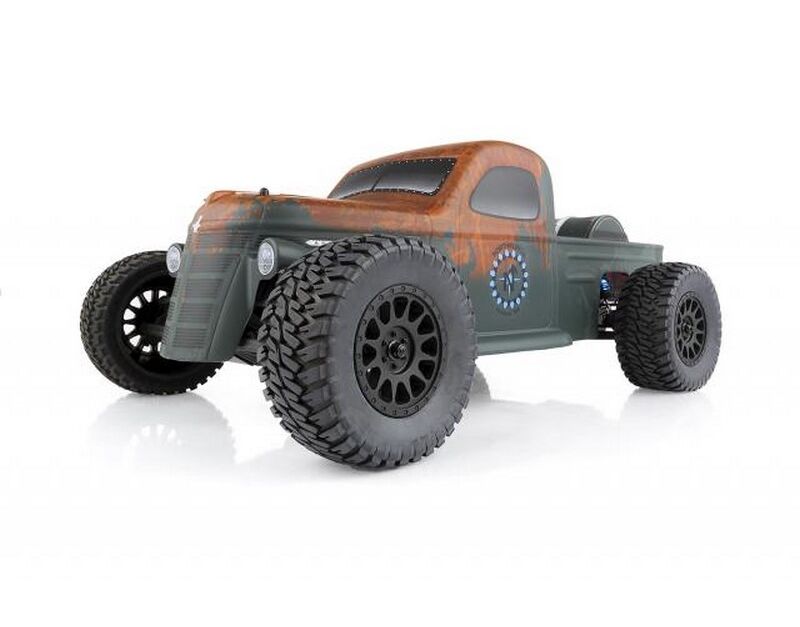

Team Associated's Ready-To-Run 1:10 replica of Northrup Fabrication's Trophy Rat is wrapped around the chassis and engineering of the 9-time R.O.A.R. Short Course National Championship-winning truck. The Trophy Rat is both all show and all go!

The truck features a water-resistant high-power Reedy brushless speed control and 3300kV brushless motor, a 2.4GHz 2-channel radio system as well as our ALL NEW DVC (Dynamic Vehicle Control) receiver unit with built-in adjustable digital gyro which allows vehicle stability to be adjusted to flow with the terrain. A Reedy metal-gear digital high-torque servo and LED lights front and rear round out the Trophy Rat!

The suspension also received an upgrade with the addition of adjustable blue anodized aluminum V2 12mm big bore coil-over shocks. The gearbox now comes with a heavy-duty sealed-gear differential and externally adjustable V2 slipper clutch. 86mm CVA driveshafts increase traction and chassis support. Hex-drive wheels come standard on the Trophy Rat with realistic off road wheels and tires to keep the truck gripping the ground.

Features

Based on the 9-time R.O.A.R. National Champion short-course race truck platform

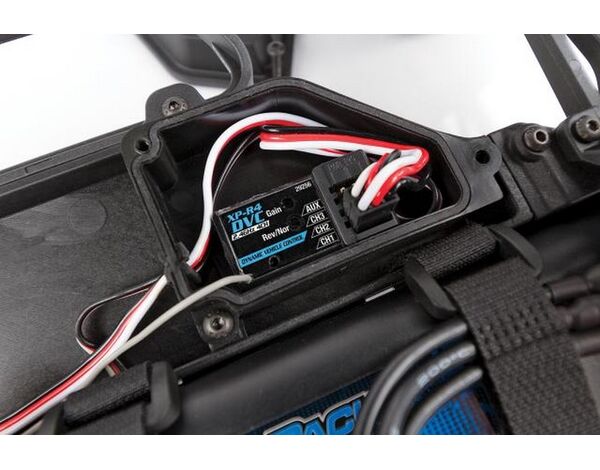

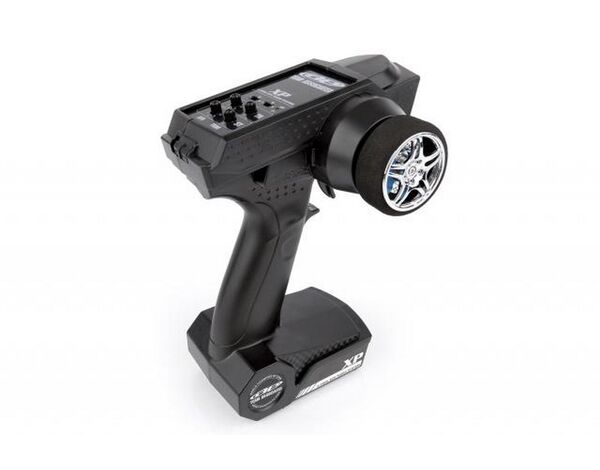

2.4GHz 2-channel radio with new DVC (Dynamic Vehicle Control) receiver; featuring built-in adjustable gyro

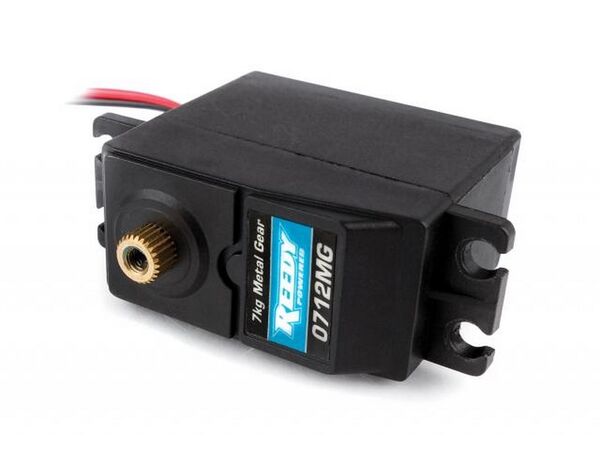

High-torque, metal-gear Reedy Servo with spring style servo saver

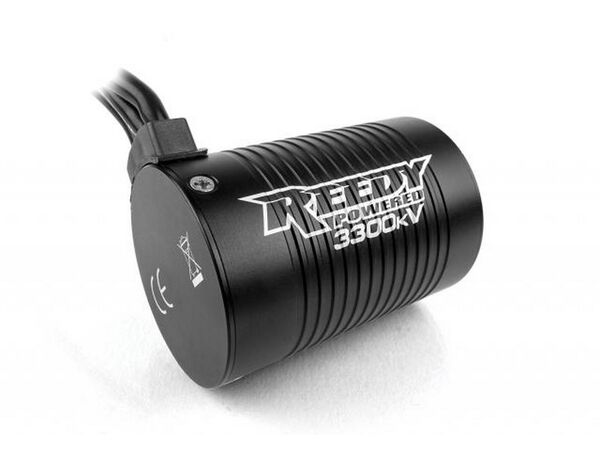

Powerful Reedy 3300kV Brushless motor

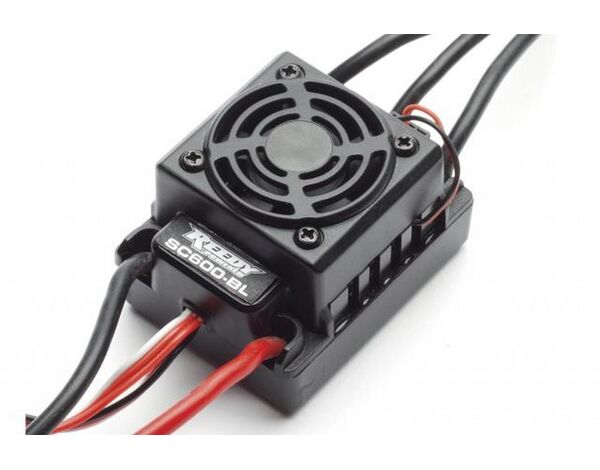

Water-resistant high-power Reedy brushless speed control with T-plug connector and LiPo low voltage cutoff

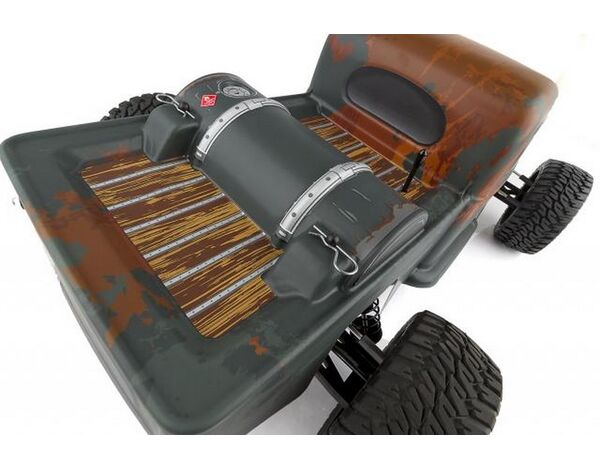

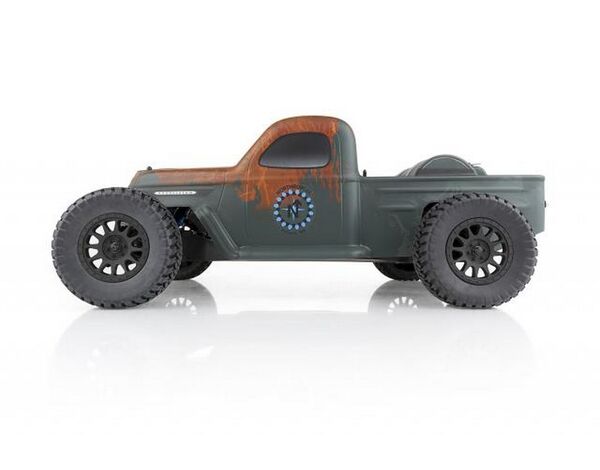

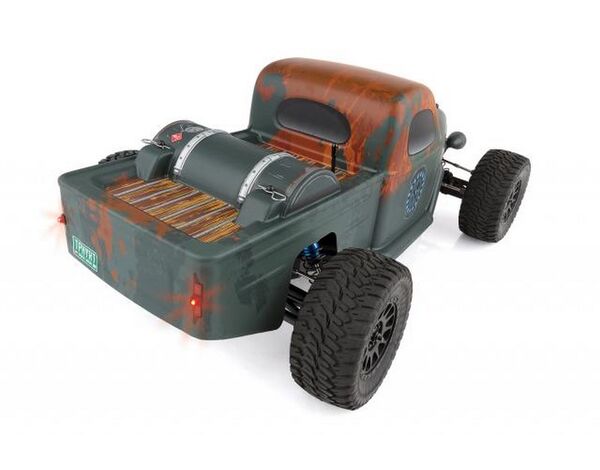

Realistic Trophy Rat Body based on the Northrup Fabrication's "Trophy Rat"

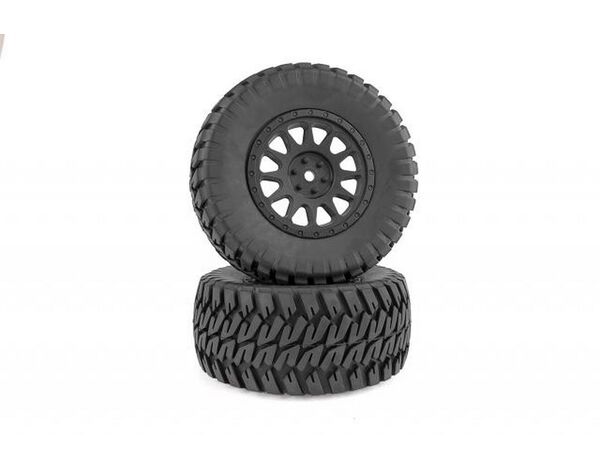

Realistic Method Wheels with 12mm front and rear hex-drive nuts

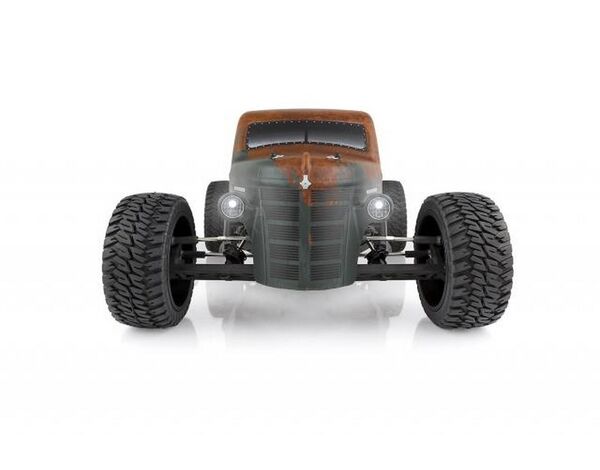

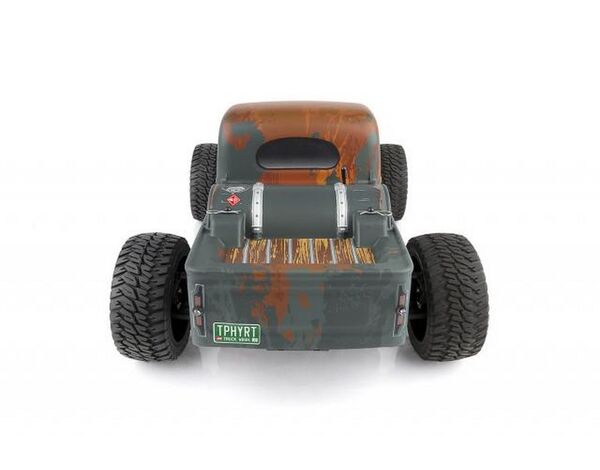

Four integrated LEDs included, 2 front, 2 rear

Water-resistant enclosed receiver box

Durable and lightweight aluminum top shaft

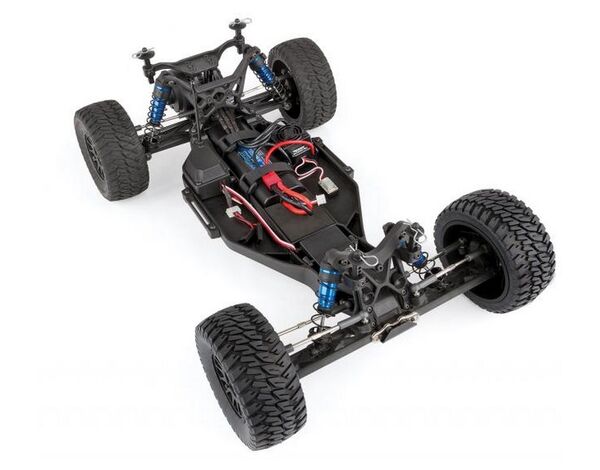

Low center-of-gravity molded composite chassis with hook-and-loop battery straps that accommodate both NiMH and 2/3s LiPo battery packs

Metric hardware throughout

14 precision rubber-sealed ball bearings

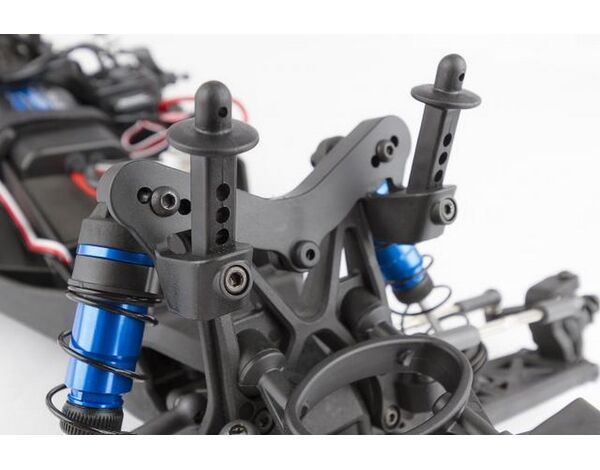

Durable front and rear body mounts

Rear CVA drive shafts for more reliability

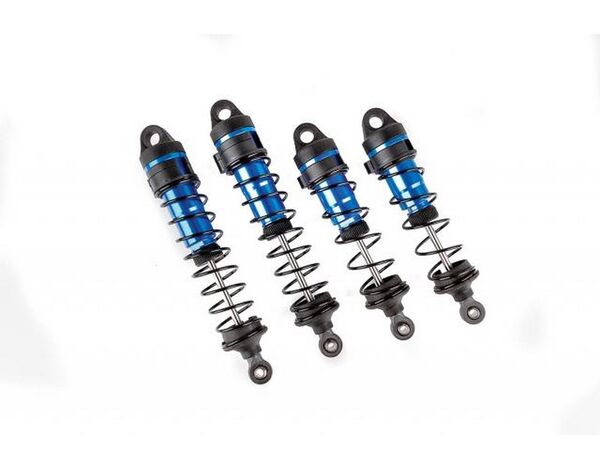

Aluminum 12mm big bore coil-over shock absorbers

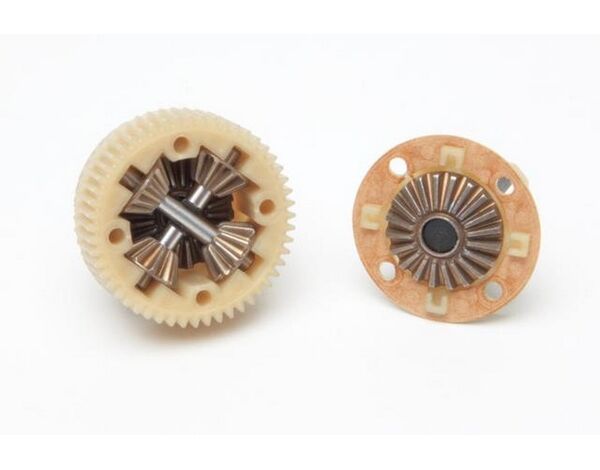

2.6:1 ratio gearbox with heavy-duty sealed gear differential and externally adjustable V2 slipper clutch

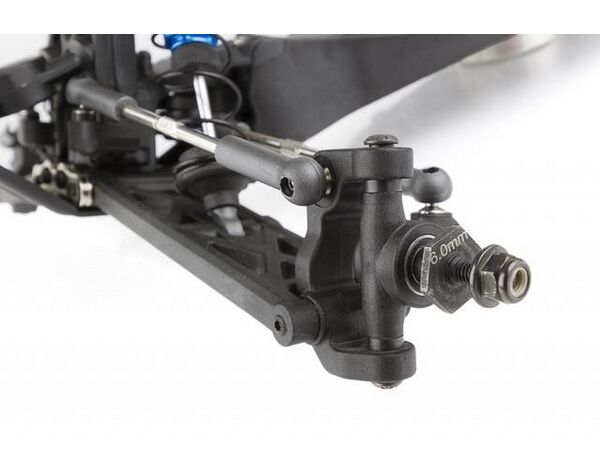

Rugged steel turnbuckles for adjustable camber and front toe-in

Fully adjustable suspension geometry

Vertical ball ends for roll center adjustments, front and rear

Many Factory Team options already available!

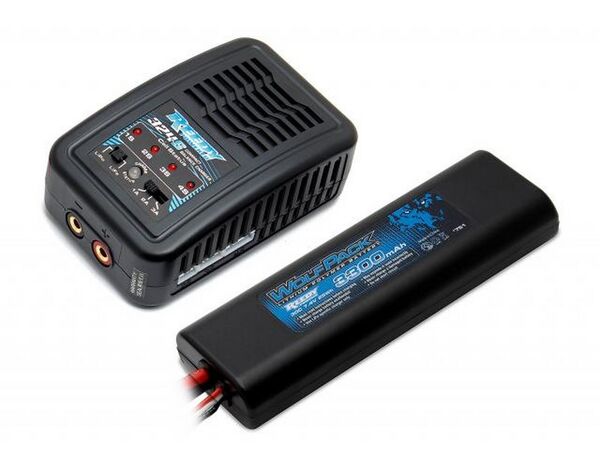

Combo #70019C includes a Reedy Compact Balance Charger and Reedy 7.4V LiPo Battery with T-plug

Vehicle Specifications

Power Source:

Electric

Terrain:

Off-Road

Body Style:

Truck

Scale Size:

1:10 Scale

Assembly Level:

Ready-To-Run*

Length:

481mm (18.94in)

Width:

282mm (11.1in)

Wheelbase:

322mm (12.68in)

Weight:

1834g (4.04lbs)

Drive:

2WD

* This vehicle is fully assembled and ready to run right out of the box. Some models may require a battery and/or charger.

Required to Complete

#70019 and 70019C: Four (4) AA batteries (#302 Reedy AA Alkaline) used in the transmitter

#70019: NiMH or LiPo battery with High Current T-Plug (#724 Reedy 7-cell WolfPack or #751 Reedy WolfPack LiPo recommended)

#70019: Charger for battery used (#27201 Reedy balance Charger - good for LiPo, LiFe - recommended)
