Surpass 30KG S3000B
Réduction 17%
- Commandé avant 16h, livré demain ! (articles en stock)
- 30 ans d'expérience en modélisme RC
- Service de qualité par des professionnels du modélisme
- Plus de 500 fabricants - 200 000 articles
Veuillez vous connecter afin que nous puissions vous informer d'une réponse
SP-860011-03 30KG S3000B
Item Type: 30KG Digital Servo
Material: Aluminum Alloy
Model: S3000BL
Color: Black Red
Locked-Rotor Torsion: 32.kgf.cm at 7.4V
Working Voltage: 6.0-8.4V DC
No-Load Speed: 0.12sec./60° at 7.4V
Rated Torsion: 7kgf.cm at 7.4V
Working Stroke Angle: 180°10 10° (500-2500μs)
Mechanical Limit Angle: 210°
Rotation Direction: CCW (1000-2000μs)
Shell Material: Aluminum Alloy Shell
Gear Set Material: Metal Gear
Motor Type: Brushless Motor
Size: Approx. 40.8 x 40 x 20mm/1.6 x 1.57 x 0.8in
Compatible: Fit for 1/8 car model boat robot
Installation:
1. Install the servo to the servo base first, without installing the servo arm or servo protection. Only fix the servo to frame. Then connect the servo to the receiver. Generally, the three wires of the CH1 or ST jack are divided into: bottom wire, VCC, and signal/PWN.
2. After the servo is fixed, turn on the remote control and turn on the ESC after setting it, and then the servo will stop at a fixed position
3. Without turning off the remote control and the servo, install the servo protector or the servo arm to the servo output gear

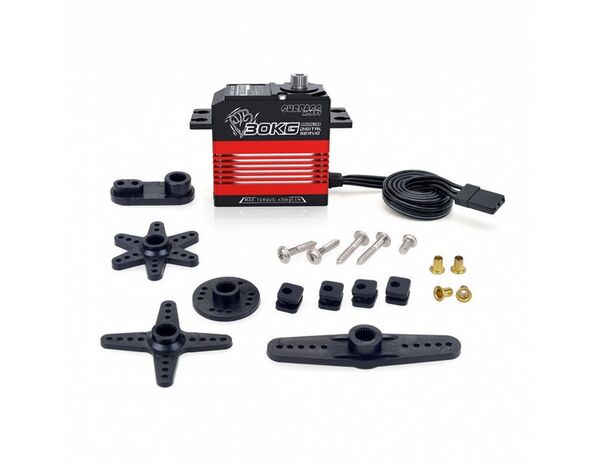

Package List：
1 x 30KG Digital Servo
5 x Servo Arms
5 x Screws
8 x Accessories
1 x Manual
Temps de positionnement sec.:
- 0.14
Fabricant:
Surpass
Akku
Application:
- Hobby Racer / Basher
- Competition Wettbewerb
Largeur mm env.:
- 21
Hauteur mm env.:
- 41
Poids g env.:
- 70
Ladegeräte
Tension d'entrée max.:
- 7.4 Volt
Matériau du boîtier:
Komplett Metall
Motoren Elektro
Type de moteur:
Brushless
Reifen
Modulation:
Digital
Fernsteuerung
Portée:
- Fahrzeuge
Servos
Taille du logement:
- Standard Servo
Force de positionnement kg:
- 30
Transmission:
Metall
Servohörner
Longueur mm env.:
- 40
Balancer Verlängerungen
Convient pour le modèle:
- Absima ASSASSIN Gen2.0 - 4S
- Absima ASSASSIN Gen2.0 - 6S
- Absima STOKE Gen2.0 - 4S
- Absima STOKE Gen2.0 - 6S
- Absima Torch Gen2.0 - 4S
- Absima Torch Gen2.0 - 6S
- Amewi PLANET PRO BUGGY Brushless - 1/8 - 4S
- Amewi PLANET PRO MONSTER Brushless - 1/8 - 4S
- Arrma Kraton 4x4 BLX 1/8 - 6S
- Arrma Nero - 1/8 Monstertruck - 6S
- Arrma Nero Big Rock - 1/8 Monstertruck - 6S
- Arrma Nero Fazon - 1/8 Monstertruck - 6S
- Arrma Notorious 4x4 BLX 1/8 - 6S
- Arrma Outcast 4x4 BLX 1/8 - 6S
- Arrma Talion - 1/8 - BLX - 6S
- Arrma Typhon 4x4 BLX 1/8 - 6S
- Asso RC8B3 / RC8B4
- Carson Specter Buggy 1/8 - 6S
- Carson Virus Buggy 1/8 - 4S
- Carson Virus Rocket Buggy 1/8 - 6S
- DF Models Destructor BL Brushless - 1/8 - 3S
- DF Models Destructor BR Truggy - 1/8
- DF Models Destructor MT Brushless - 1/8 - 3S
- HB D817 4WD Nitro Buggy - 1/8
- HB D817T 4WD Nitro Truggy - 1/8
- HB D819 4WD Nitro Buggy - 1/8
- HB E817T 4WD Truggy - 1/8
- HB E819 4WD Buggy - 1/8
- HB E8T 4WD Truggy - 1/8
- Hobao Hyper MT - 6S
- Hobao Hyper SS Truggy - 6S
- Hobao Hyper VSE - 4S
- HPI Savage XL Flux - 6S
- HPI Trophy Buggy Flux - 4S
- HPI Vorza Buggy Flux - 6S
- Jamara Ultra BL8 Buggy - 1/8 - 2S
- Kyosho Inferno MP10 Nitro Buggy
- Kyosho Inferno MP10E Buggy
- Kyosho Inferno MP9 Nitro Buggy
- Kyosho Inferno MP9E Buggy
- Kyosho INFERNO NEO 3.0 Nitro
- Kyosho Inferno NEO 3.0VE - 4S
- Losi 8IGHT-E
- Losi TLR 8IGHT 4WD Buggy 1/8
- Losi TLR 8IGHT-XT 4WD Truggy 1/8
- LRP S8 Rebel BX 1/8 Buggy
- MING-YANG HELIOS Flux Buggy 1/8
- MING-YANG HELIOS Nitro Buggy 1/8
- MODSTER CITO BRUSHLESS BUGGY - 1/8 - 4S
- Mugen MBX-6
- Mugen MBX-7
- Mugen MBX-8
- Mugen MBX-8 ECO
- Reely BIG1 Brushless Monstertruck - 1/8 - 4S
- Serpent Cobra 811 Truck-E - 1/8 - 6S
- Serpent SRX8 Buggy Nitro - 1/8
- Serpent SRX8 Truggy-E - 1/8
- Serpent SRX8-E Buggy - 1/8
- Sworkz S35
- T2M Pirate 8.6E Brushless Buggy - 1/8 - 4S
- Team Corally Dementor / Jambo XP 6S
- Team Corally Kronos / Muraco XP 6S
- Team Corally Punisher XP 6S
- Team Corally Python / Radix XP 6S
- Team Corally Shogun XP 6S
- Team Magic B8ER - 4S
- Team Magic B8ER - 6S
- Team Magic E6 III BES - 6S
- Team Magic E6 J-Star - 6S
- Team Magic E6 Raptor - 6S
- Traxxas E-Maxx 1/10 VXL - 6S
- Traxxas E-Revo / ERevo 1/10 VXL - 6S
- Traxxas E-Revo 2.0 / ERevo 1/10 VXL - 6S
- Traxxas Revo 3.3
- Traxxas Sledge Monstertruck 1/8 VXL - 6S
- Traxxas Summit 1/10 - EVX-2 - 4S
- WRC SBX - 1/8 Nitro Buggy
- WRC SBXE - 1/8 Buggy
- Xray XB8
- Xray XB8E
Akkustecker
Bouchon:
- Futaba
Werkzeug
Imperméable:
Nein
Enregistrement de cor servo:
25 Zähne (Futaba - Savöx - Traxxas usw.) 25T
