SRT Drift Servo D1S LP 18.5kg/0.08sec 8.4V

Write a review
CHF 92.90
Including tax
> 10 pieces available at supplier - Shipping in: 4 - 8 working days
+
D1S

Further products by SRT-Racing >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products

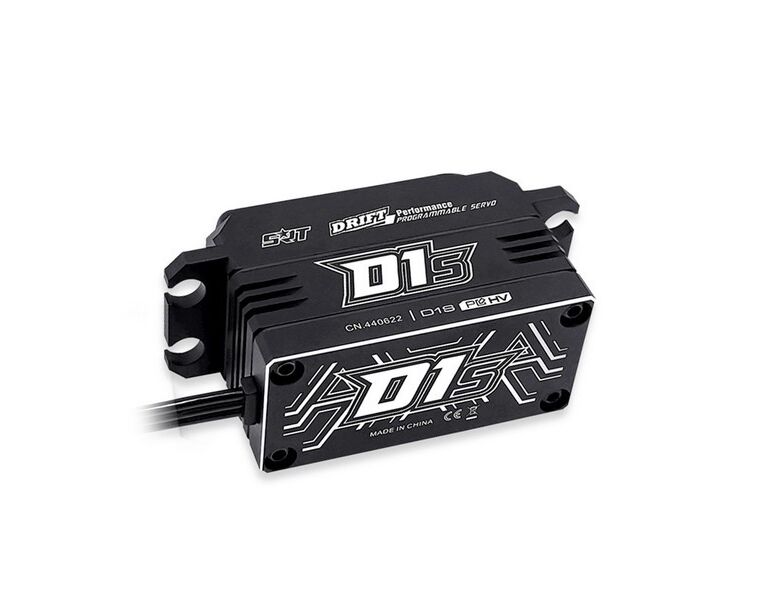

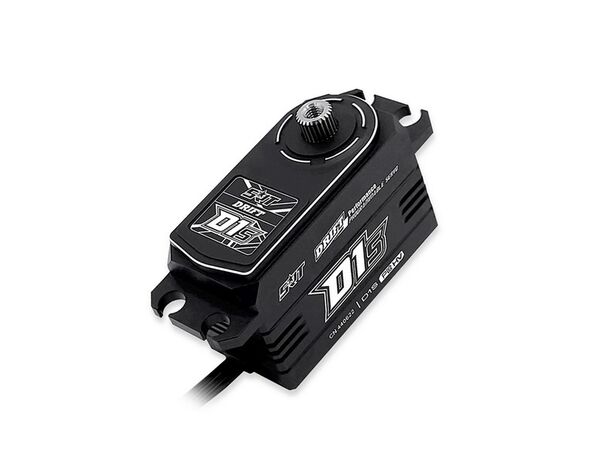

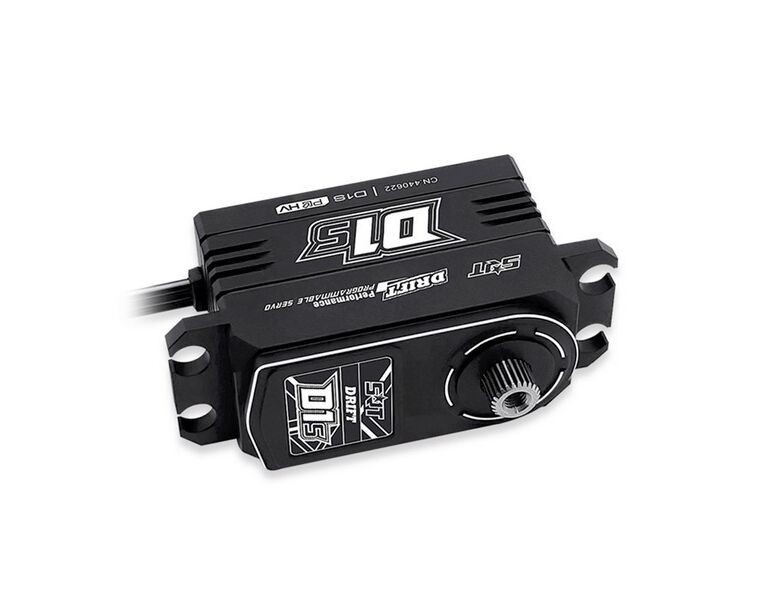

SRT Drift Servo D1S Low Profile CNC Alugehäuse 18.5kg/0.08sec @8.4V

SRT-Racing - Servos der Extraklasse!

Eigenschaften:

Ideal für 1/10 Drift-Wagen
Unglaubliche Effizienz und geringer Stromverbrauch
Aus Titan und Stahl gefertiges Getriebe für Präzision und Langlebigkeit
CNC-gefrästes Aluminiumgehäuse für starke Kühlung
SSR-Modus kompatibel
2 µs Dead Band

Technische Spezifikationen:

Spannung: 6.0V 7.4V 8.4V
Stellgeschwindigkeit: 0.10 sec/60° 0.095 sec/60° 0.08 sec/60°
Drehmoment: 14.0 kgcm 16.5 kgcm 18.5 kgcm
Motor: Coreless
Getriebe: Titan / Stahl
Art: Digital
Ansteuerfrequenz: 330Hz
Kugellager: ja, Dual
Abmessungen: 41.0x20.0x27.3mm
Gewicht: 58.0g
Verzahnung: -
Einsatz: 1/10 Drift

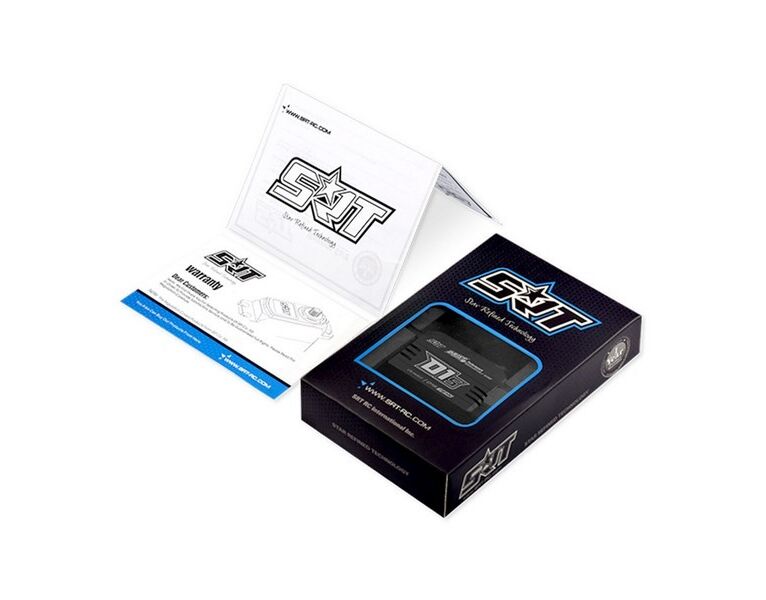

Lieferumfang:
1x Servo

Akku

Application:
  • Competition Wettbewerb
Width mm approx.:
  • 41
Height mm approx.:
  • 20
Weight g approx.:
  • 58

Ladegeräte

Max. Input voltage:
  • 8.4 Volt
Housing material:
Komplett Metall

Motoren Elektro

Motor type:
Brushless

Reifen

Modulation:
Digital

Fernsteuerung

Scope of application:
  • Fahrzeuge
  • Flugmodelle

Servos

Housing size:
  • Low Profile Servo
Positioning force kg:
  • 18
Transmission:
Metall

Servohörner

Length mm approx.:
  • 27

Akkustecker

Plug:
  • JR Uniplug

Werkzeug

Waterproof:
Nein
Servo horn recording:
25 Zähne (Futaba - Savöx - Traxxas usw.) 25T
