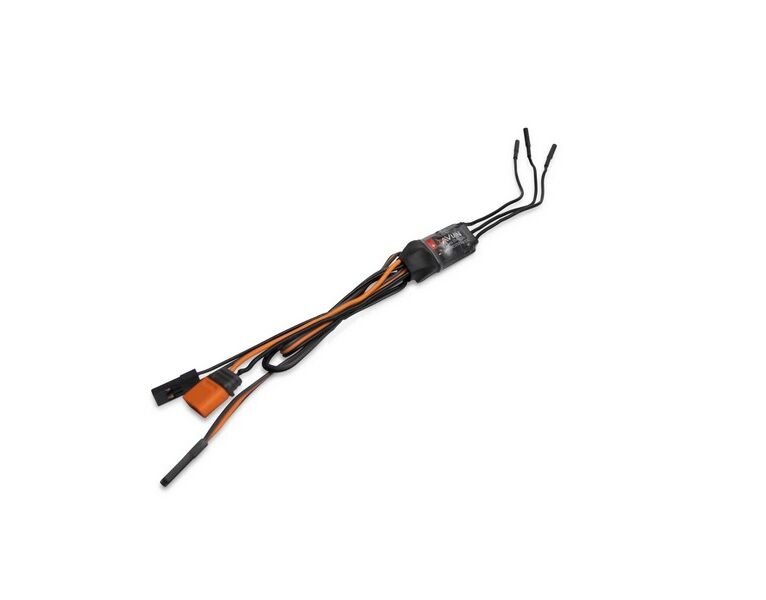

Spektrum REGLER AVIAN 15A SMART BRUSHLESS 2S-4S IC2

Spektrum REGLER AVIAN 15A SMART BRUSHLESS 2S-4S IC2

Product Features:

Smart all-in-one telemetry

Fast, powerful 32-bit ARM M4 processor

Multiple options for easy programming:

Smart ESC Programming Box

SmartLink USB Updating and Programmer application

Throttle stick programming

Multi-point protection:

Over-current protection

Automatic LiPo low-voltage cutoff

Thermal protection

Failsafe protection

Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer

Compact for easy installation in most applications

Ready to install — no soldering required

Heat dissipating design

Dual BEC power connectors

Firmware updatable through the Smart ESC Programming Box and SmartLink PC application

High heat-resistant IC™ connectors, backwards compatible with EC™ connectors

Limited 1-year warranty

Product Overview

Like every component in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your aircraft imaginable.

Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Please note - The Spektrum Avian Smart 15A ESC does not include the Smart Battery Data Wire and does not provide Motor Current. Battery telemetry data will not be transmitted (Battery Temp, Battery Cycles, Battery Cell Balance). Only the following ESC telemetry will be provided; Input Voltage, Throttle Input and Output %, ESC FET Temp and Motor RPM.

Needed to Complete:

Spektrum™ Aircraft Receiver

Spektrum Transmitter

What's in the Box?

(1) Spektrum™ Avian™ Smart ESC

(1) Spektrum Smart sticker sheet

(1) Product Manual

One-Wire Telemetry

No need to connect multiple wires, sensors, modules, and links. With Avian™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including current, voltage, cell balance, temperature and RPM.

MULTIPLE PROGRAMMING OPTIONS Multiple Programming Options

Multiple programming options are available. Throttle stick programming can be used with nothing more needed. Using the Smart ESC Programming Box, you can easily change settings at the field to suit flying conditions. An easy-to-use Smart Link USB Updating and Programmer app is also available.

Smart ESC Thrust Reversing Smart ESC Thrust Reversing

Now included with Smart Avian ESCs is the ability to reverse the motor at the flip of a switch! This allows for pilots to use the power system for increased mobility on the ground as well as acting as a brake for models requiring more runway to land. This function requires a Smart compatible Spektrum Transmitter and Receiver and needs to be activated with in the ESC parameters.

On-Screen ESC Programming On-Screen ESC Programming

Avian ESCs now come updated to allow pilots to program any ESC parameter, right from their Spektrum Transmitter, via the Avian Prog telemetry screen. This makes it easier to make quick setting changes, adjustments and experimentation to maximize power output or efficiency , right on the flight line, no extra boxes or modules required! This function requires a Smart telemetry compatible Spektrum Transmitter and Receiver.

Produkt Eigenschaften:

AmperageUp to 15A

ApplicationAir

Auto-AusJa

BECJa

BEC Dauerstrom3

BEC max. kurzzeitige Stromspitze12A

BEC TypeLinear

BEC Voltage5.2V

BremsenJa

Connector TypeIC2

Einstellbares TimingNein

Input Voltage2S - 4S LiPo

Maximum Burst Current25A

Maximum Continuous Current15A

Motor Output Lead2mm

Niederspannungsabschaltung ProgrammierbarJa

Part TypeElectronics

Product ApplicationAir

Product Height0.4" (10 mm)

Product Length1.4" (36 mm)

Product Weight0.6oz (16g)

Product Width0.6" (15 mm)

ProgrammierbarJa

Programming OptionsTransmitter Stick Input, Programming Box, On Screen Text Gen, Smartlink App

RückwärtsJa

TechnologySmart

VorneJa
