Spektrum Firma 780Kv Brushless Motor

Write a review
CHF 249.90
Including tax
1 pieces available at supplier - Shipping in: 2 - 4 working days
+ −
Add to comparison list Add to wish list Rate this product
SPMXSM1100

Further products by Spektrum >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products

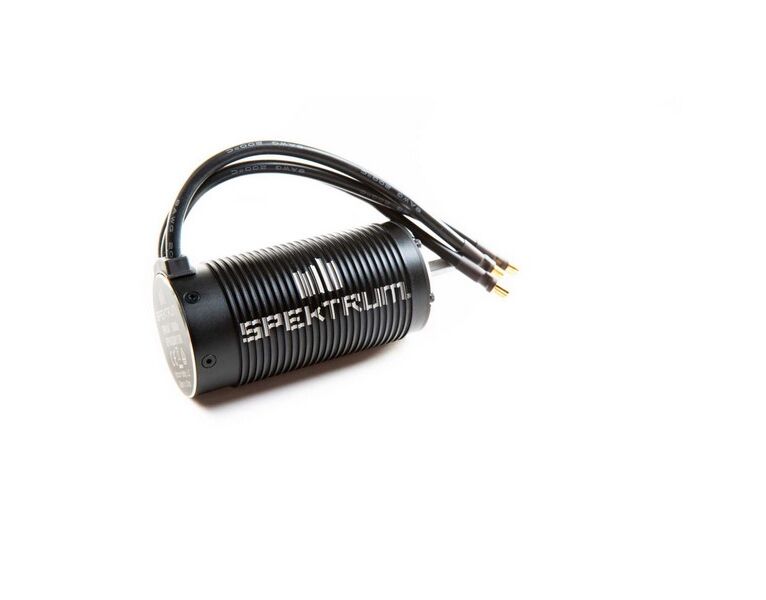

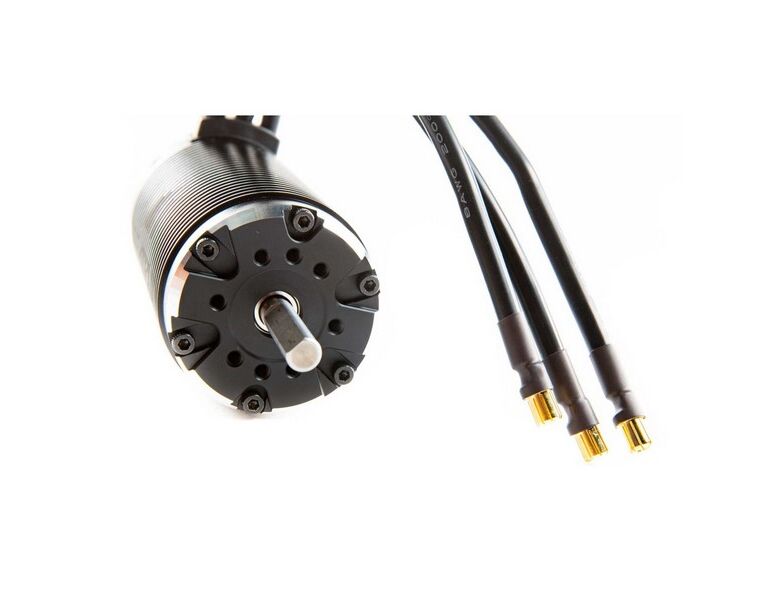

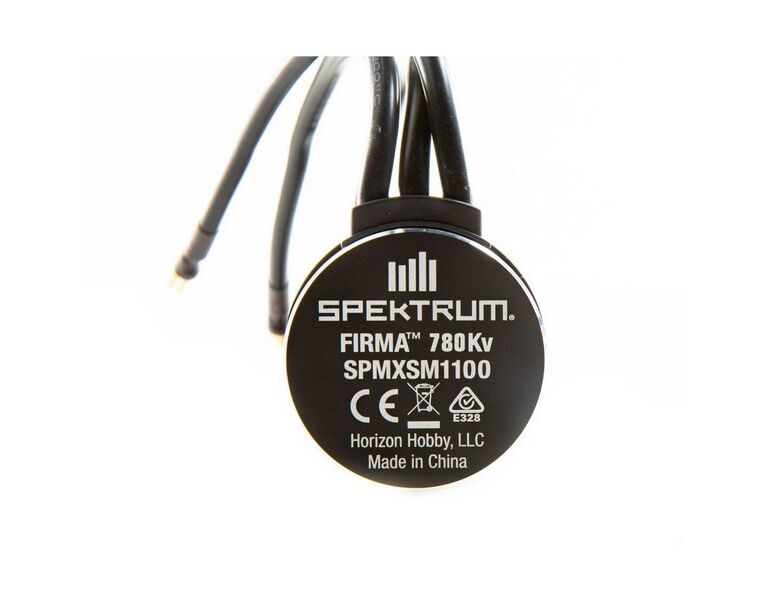

Spektrum Firma 780Kv Brushless Motor

Key Features

Heat sinking designed CNC aluminum housing

8S LiPo power capable

Hgh efficiency design

High-quality 4-pole sintered rotors

Includes 6.5mm gold plated bullet connectors

Precision ball bearings and hardened steel 8mm shaft

Overview

Perfect option for 1/5th scale models looking to run a 8S Lipo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing with heat sinking fins, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and high-precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors. Perfectly matched to the Firma 160 Smart ESC.

Needed to Complete

Electronic Speed Control such as the Firma 160 Smart ESC

What's in the box?

Spektrum Firma 5613-780Kv Sensorless 1/5 Brushless Motor with 6.5mm Gold Plated Bullet Connectors

Product Specifications

Bushing Or BearingBearing

Cells4-8S LiPo

Efficiency90%

Input Voltage12-35.2V

Maximum Continuous Current200A

Motor DesignInrunner

Motor TypeBrushless

Number of Poles4

Outer Diameter2.2 in (56mm)

Output7000W

Overall Length4.4" (113mm)

Product Weight43oz (1220g)

Recommended Speed ControlSpektrum Firma 160 Smart ESC

RPM/Volt (Kv)780Kv

Shaft Diameter5/16" (8mm)

Wire Gauge10 AWG

Manufacturer:
Spektrum

Akku

Application:
  • Hobby Racer / Basher
Weight g approx.:
  • 1220

Fahrtenregler

Max. Operating voltage:
  • 29.6 Volt
Fan size:
  • 1/5 - 1/6 Big Block
Lipo cell count max.:
  • 8

Motoren Elektro

Motor type:
Brushless
Shaft diameter mm:
  • 8 mm
Speed KV per volt:
750
Number of poles:
  • 4
Motor connection:
  • 6.5 mm

Reifen

Controller type:
  • Brushless Sensorless
Diameter mm approx.:
  • 56

Fernsteuerung

Scope of application:
  • Fahrzeuge
Output max. Watt approx.:
  • 7000

Servohörner

Length mm approx.:
  • 113
