Spektrum MOTOR FIRMA 2800Kv BRUSHLESS MOTOR BL

Spektrum MOTOR FIRMA 2800Kv BRUSHLESS MOTOR BL Sensored Crawler Motor 3.5mm Goldstecker

Key Features

Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)

Perfect for high speed off-road applications such as rock bouncers and rock racers

High-quality 4-pole sintered rotor

Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs precise signals indicated by rotor position.

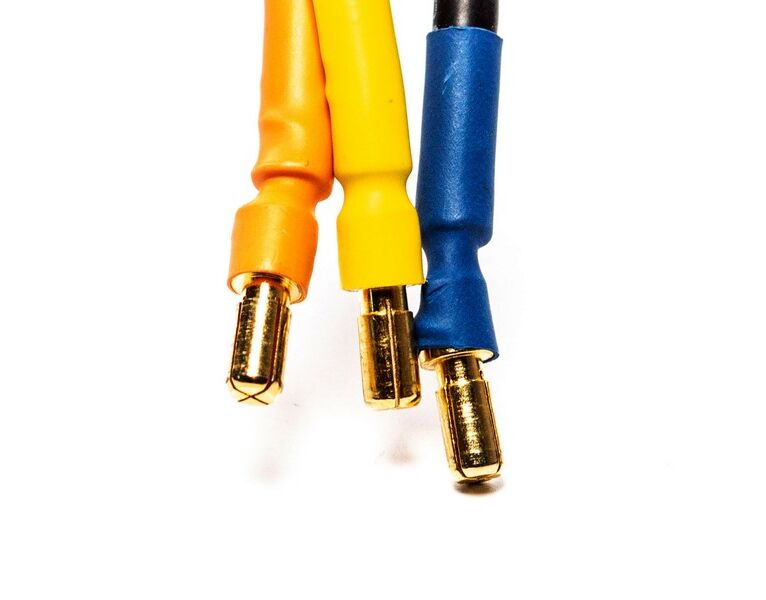

3.5mm Gold Plated Bullet Connectors

Firma 2800Kv Brushless Sensored Crawler Motor

Overview

The Firma 2800Kv Sensored brushless motor is a great choice for 1/10 scale crawlers, rock racers, and trailers running on 2S – 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 3.5mm gold plated bullet connectors for easy installation. The

Features

Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)

Perfect for high speed off-road applications such as rock bouncers and rock racers

High-quality 4-pole sintered rotor

Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors

3.5mm gold plated bullet connectors

Waterproof sensor wire with locking plug and gasket

High-quality construction with precision ball bearings and hardened steel 1/8" shaft

Produkt Eigenschaften

Connector Type3.5mm Bullet

Motor Class1/10 Scale

Motor Size540-2800Kv Brushless Sensored

Product Length2.27" (58 mm)

Bushing Or BearingBearing

ForwardYes

ReverseYes

Constant Wattage500-749W

Maximum Continuous Current50A

Integrated ESCNo

Outer Diameter1.42" (36 mm)

Input Voltage7.4 - 11.1V

Kv Rating2500-2999Kv

Motor Output Lead3.5mm

Product ApplicationCrawling, Surface

Recommended Speed ControlSpektrum Firma 60A Sensored Brushless Smart Crawler ESC

RPM/Volt (Kv)2800Kv

SensoredYes

Sensor TypeSensored FOC

Application1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power

Number of Poles4

Shaft Diameter0.125" (3 mm)

Water-ResistantYes

Motor TypeBrushless
