Spektrum Firma 150A Brushless Smart ESC V2 6S Dual IC5 Stecker

Spektrum Firma 150A Brushless Smart ESC V2 3S - 6S Dual IC5 Stecker

Key Features:

Smart all-in-one telemetry

Fast, powerful 32-bit ARM M4 processor

Waterproof

Multiple options for easy programming

Ready to install — no soldering required

In The Box:

(1) Spektrum™ Firma™ Smart ESC

(1) Spektrum Smart Sticker Sheet

(1) Product Manual

Needed to Complete

(1) Spektrum™ Surface Receiver

(1) Spektrum Smart Technology LiPo Battery

(1) Spektrum Transmitter

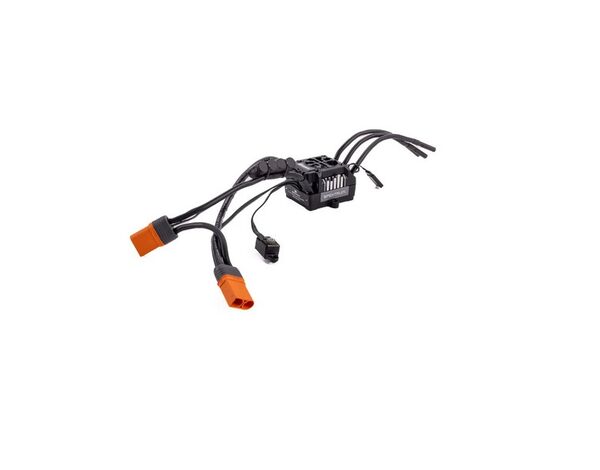

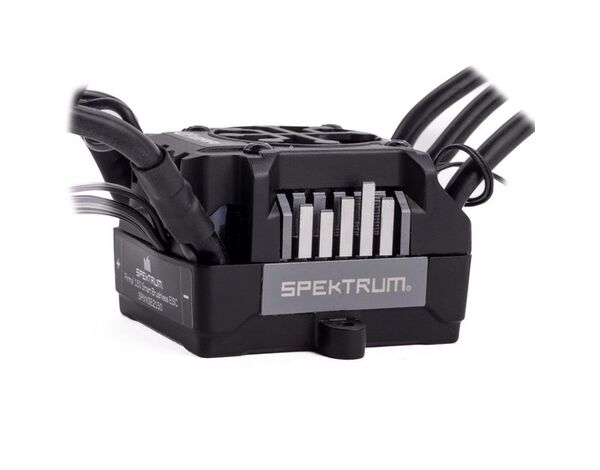

Firma 150A Brushless Smart ESC V2, 3S - 6S: Dual IC5

Product Features:

Smart all-in-one telemetry

Fast, powerful 32-bit ARM M4 processor

Waterproof

Multiple options for easy programming:

Button programming

Smart ESC Programming Box

SmartLink USB Updating and Programmer application

Multi-point protection:

Over-current protection

Automatic LiPo low-voltage cutoff

Thermal protection

Failsafe protection

Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer

Compact for easy installation in most applications

Ready to install — no soldering required

Rugged plastic case with mounting tabs

Aluminum heat sink for high efficiency

Cooling fan

Adjustable high-power BEC

Firmware updatable through the Smart ESC Programming Box

High heat-resistant IC™ connectors, backwards compatible with EC™ connectors

Limited 1-year warranty

Product Overview:

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

WATERPROOF

The all-weather, waterproof design of Spektrum™ Firma™ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.

EC3™/EC5™ BACKWARDS COMPATIBLE EC3™/EC5™ BACKWARDS COMPATIBLE

Firma™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.

SMART TECHNOLOGY BATTERY DATA SMART TECHNOLOGY BATTERY DATA

When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!

MULTIPLE PROGRAMMING OPTIONS MULTIPLE PROGRAMMING OPTIONS

Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma™ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.

FAST, POWERFUL M4 PROCESSOR FAST, POWERFUL M4 PROCESSOR

The Firma™ ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.

Produkt Eigenschaften:

Akku EingangskabelIC5

Amperage120A or larger

AnwendungOberfläche

Ausgangsanschluss4mm Bananenstecker

Auto-AusJa

BECJa

BEC Dauerstrom4

BEC TypeLinear

BEC Voltage6V

BremsenJa

Input Voltage3S - 6LiPo

Maximum Burst Current950A

Maximum Continuous Current150A

Motor Output Lead6.5mm

Niederspannungsabschaltung ProgrammierbarJa

Product Height1.5" (38.5mm)

Product Length2.3" (58mm)

Product Weight8.4oz (238g)

Product Width1.9" (47.5mm) without tabs, 2.3" (59.5mm) with tabs

ProgrammierbarJa

Programming OptionsButton, Programming Box, Smartlink App, On Screen Text Gen

RückwärtsJa

TechnologySmart

ÜberladeschutzJa

VerbindertypIC5

VorneJa
