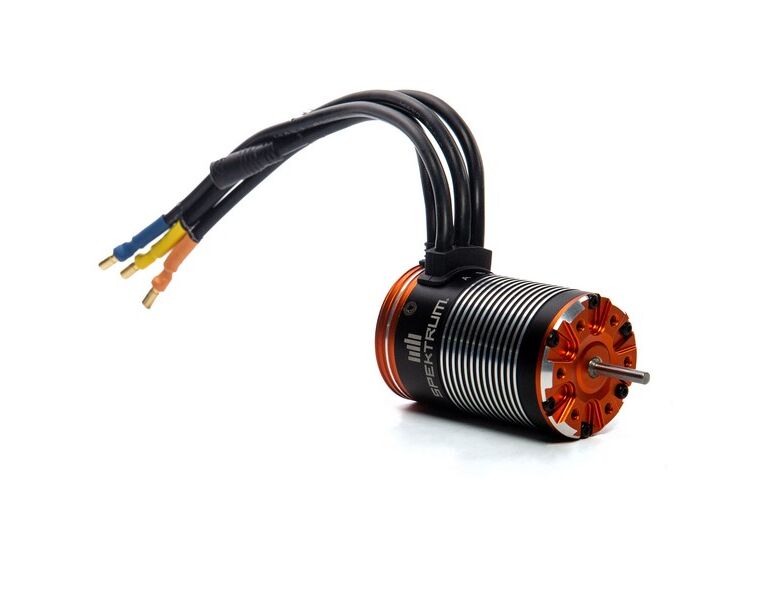

Spektrum MOTOR FIRMA 1400Kv BRUSHLESS MOTOR BL

Spektrum MOTOR FIRMA 1400Kv BRUSHLESS MOTOR BL Sensored Crawler Motor 3.5mm Goldstecker

Key Features

Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)

Perfect for low speed, high torque applications such as competition crawlers

High-quality 4-pole sintered rotor

Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs precise signals indicated by rotor position.

3.5mm Gold Plated Bullet Connectors

Overview

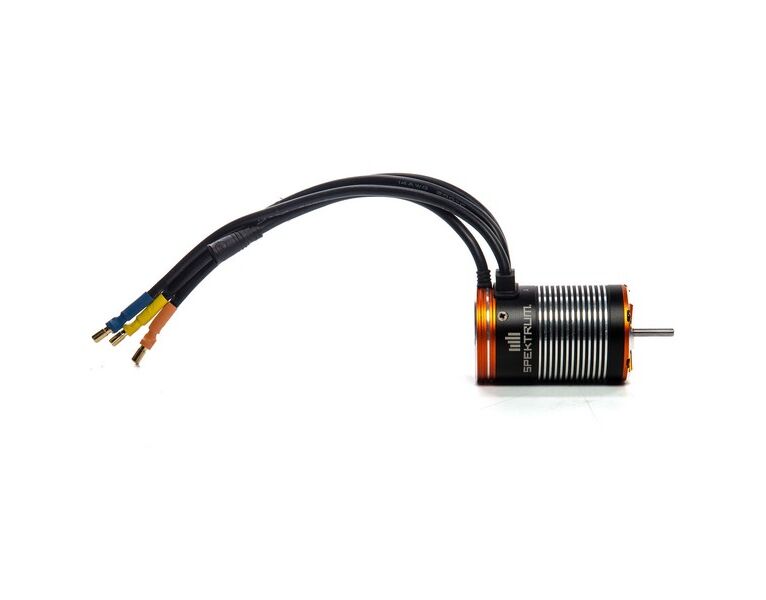

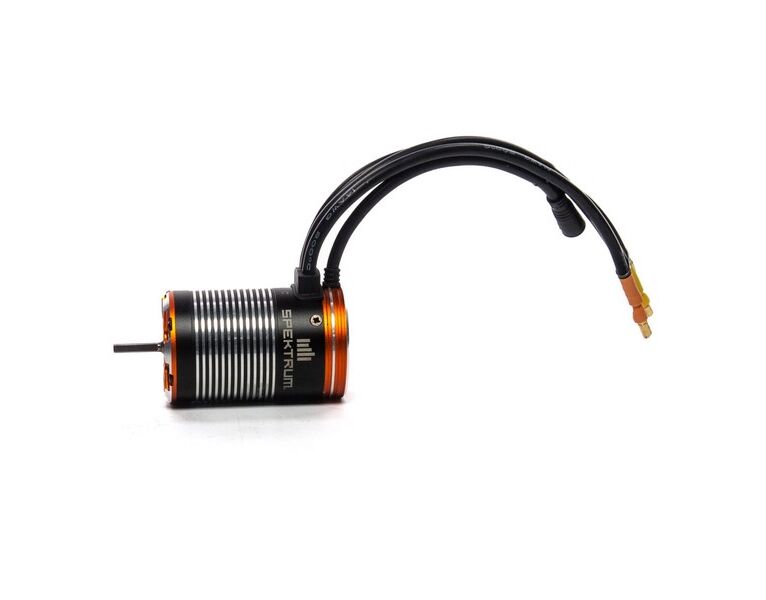

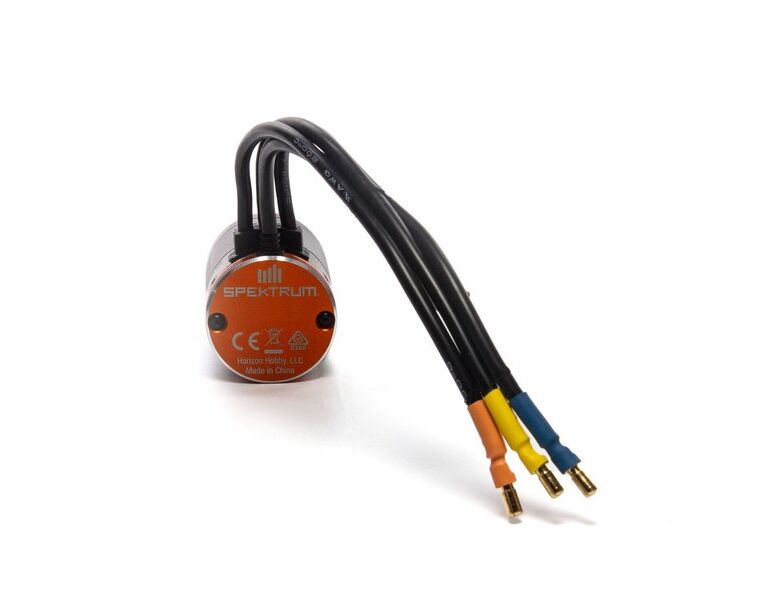

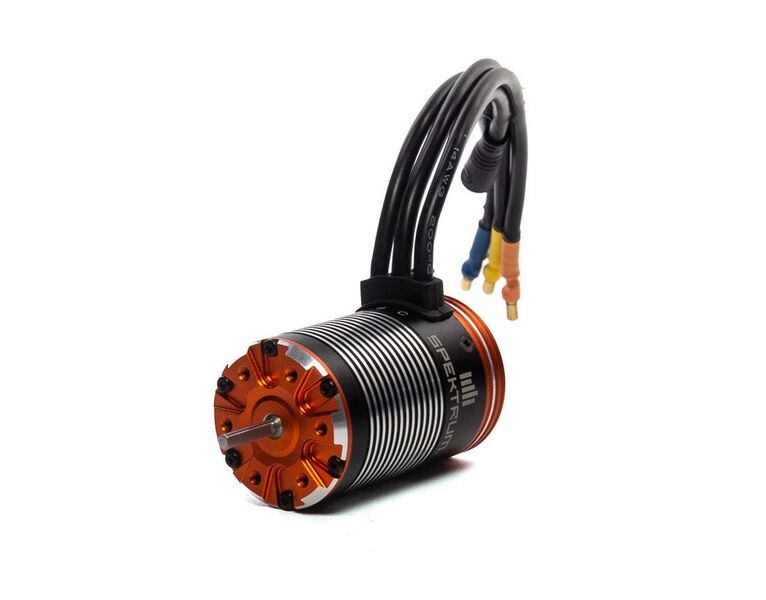

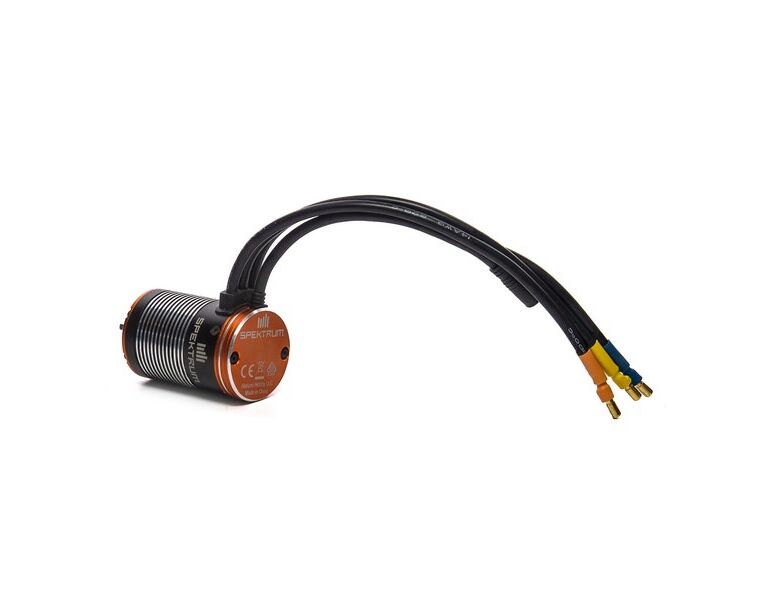

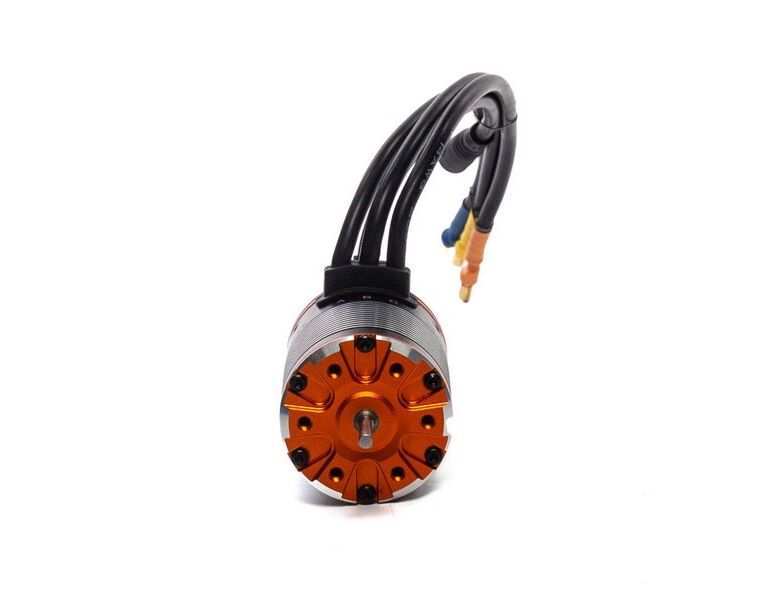

The Firma 1400Kv Sensored brushless motor is a great choice for 1/10 scale crawlers, rock racers, and trailers running on 2S – 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 3.5mm gold plated bullet connectors for easy installation. The Spektrum FIRMA 60A Sensored Brushless Smart Crawler ESC is required.

Features

Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)

Perfect for low speed, high torque applications such as competition crawlers

High-quality 4-pole sintered rotor

Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors

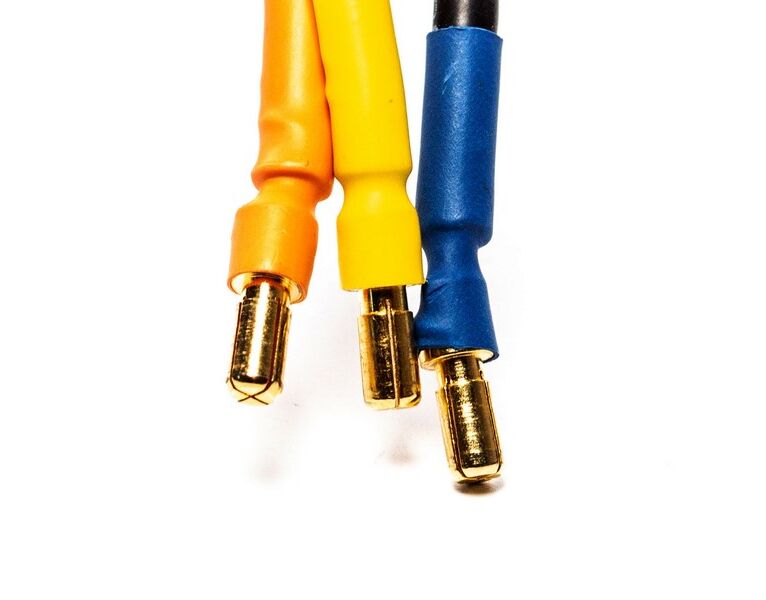

3.5mm gold plated bullet connectors

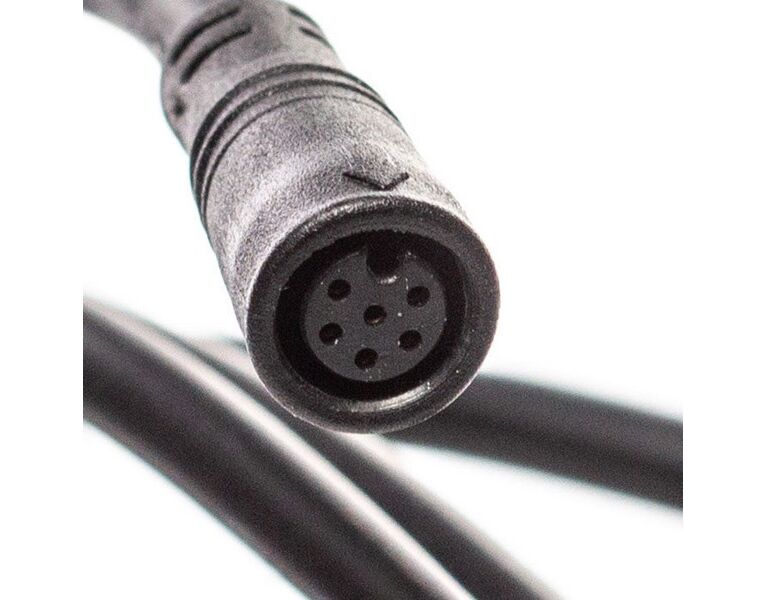

Waterproof sensor wire with locking plug and gasket

High-quality construction with precision ball bearings and hardened steel 1/8" shaft

Produkt Eigenschaften

Integrated ESCNo

Outer Diameter1.42" (36 mm)

Input Voltage7.4 - 11.1V

Kv Rating1250-1499Kv

Motor Output Lead3.5

Product ApplicationCrawling, Surface

Recommended Speed ControlSpektrum Firma 60A Sensored Brushless Smart Crawler ESC

RPM/Volt (Kv)1400Kv

SensoredYes

Sensor TypeSensored FOC

Application1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power

Number of Poles4

Shaft Diameter0.125" (3 mm)

Water-ResistantYes

Connector Type3.5mm Bullet

Motor Class1/10 Scale

Motor Size540-1400Kv Sensored Brushless

Product Length2.27" (58 mm)

Constant Wattage250-499W

Maximum Continuous Current25A

Motor TypeBrushless

Bushing Or BearingBearing

ForwardYes

ReverseYes
