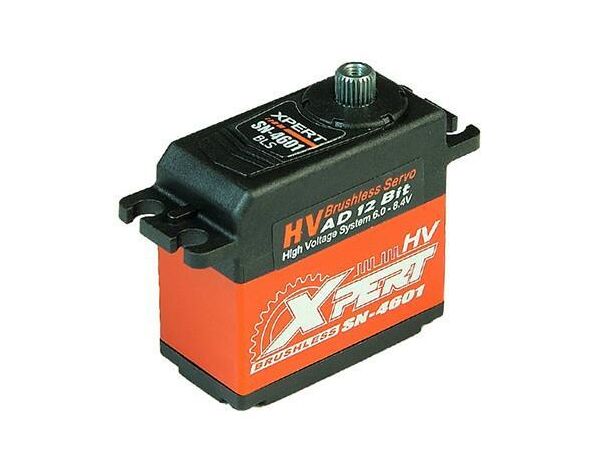

SN-4601-HV Xpert Servo High-Voltage Standard
8,4V Torque 19,91 Kg-cm, Speed 0,106 sec/60°
25 Zähne Verzahnung
Features
Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
Aluminum middle case for optimized thermal dissipation.
Strong Metal Gear
Glitch-free
Sophisticated error correction
High-Speed, High-precision 12-bit AD converter and CPU calculation
Fail safe
Over current protection
Over temperature protection
Start sonorant
Type Standard
Product Name SN-4601-HV
Part Name SN-4601-HV
Power Supply 6.0V~8.4V
Speed (sec/ 60°) @6.0V: .148 sec/60° @7.4V: .120 sec/60° @8.4V: .160 sec/60°
Torque (oz/in) @6.0V: 197.37 oz-in @7.4V: 243.46 oz-in @8.4V: 276.35 oz-in
Torque (kg/cm) @6.0V: 14.22 kg-cm @7.4V: 17.54 kg-cm @8.4V: 19.91 kg-cm
Dimensions 40x37.80x20 mm
Weight 66.3 g
Frequency 200/333 HZ
Range 50~400 Hz
Center Position 1520 μs
Applicat
