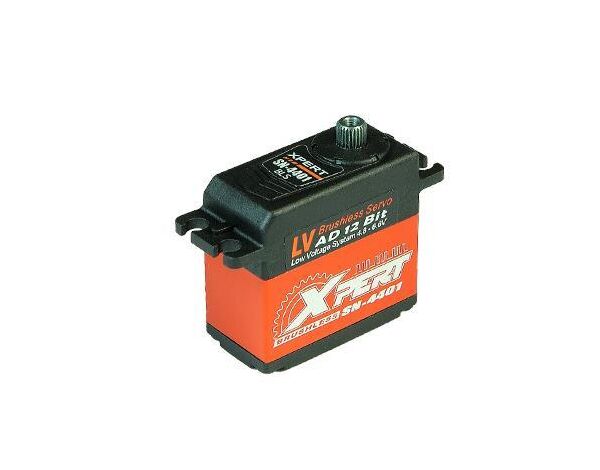

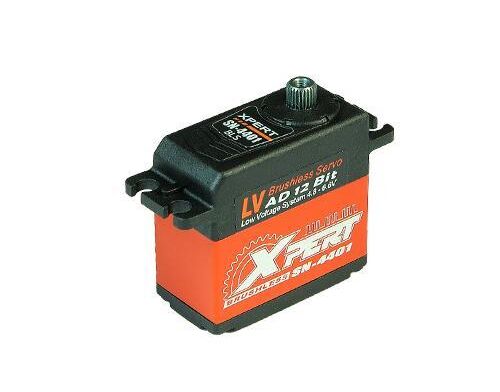

SN4401 Xpert Servo 6.0V 18.4kg/0.08sec.

Write a review
CHF 96.90
Including tax
4 pieces available at supplier - Shipping in: 4 - 8 working days
+ −
Add to comparison list Add to wish list Rate this product
XPESN4401

Further products by Xpert >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products

SN-4401 Xpert Servo Low-Voltage Standard

6,0V Torque 18,40 Kg-cm, Speed 0,085 sec/60°

25 Zähne Verzahnung

Features

4096 resolution and SIC (Single Integrated Circuit) for the highest performance

Aluminum middle case for optimized thermal dissipation.

Strong Metal Gear

Glitch-free

Sophisticated error correction

High-Speed, High-precision 12-bit AD converter and CPU calculation

Fail safe

Over current protection

Over temperature protection

Start sonorant

Type Standard

Product Name SN-4401

Part Name SN-4401

Power Supply 4.8V~6.6V

Speed (sec/ 60°) @4.8V: .106 sec/60° @6.0V: .085 sec/60° @6.6V: .077 sec/60°

Torque (oz/in) @4.8V: 204.31 oz-in @6.0V: 255.39 oz-in @6.6V: 280.93 oz-in

Torque (kg/cm) @4.8V: 14.72 kg-cm @6.0V: 18.40 kg-cm @6.6V: 20.24 kg-cm

Dimensions 40x37.80x20 mm

Weight 66.3 g

Frequency 200/333 Hz

Range 50~400 Hz

Center Position 1520 μs

Applications General

Uper and Bottom Case XP-01

Hardware Parts Xpare-01

Gear Set XGS72320

Positioning time sec.:
  • 0.07
Manufacturer:
Xpert

Akku

Application:
  • Competition Wettbewerb
Width mm approx.:
  • 40
Height mm approx.:
  • 20
Weight g approx.:
  • 67

Ladegeräte

Max. Input voltage:
  • 6.0 Volt
Housing material:
Kunstoff / Metall

Motoren Elektro

Motor type:
Brushless

Reifen

Modulation:
Digital

Fernsteuerung

Scope of application:
  • Fahrzeuge
  • Flugmodelle

Servos

Housing size:
  • Standard Servo
Positioning force kg:
  • 20
Transmission:
Metall

Servohörner

Length mm approx.:
  • 38

Akkustecker

Plug:
  • JR Uniplug

Werkzeug

Waterproof:
Nein
Servo horn recording:
25 Zähne (Futaba - Savöx - Traxxas usw.) 25T
