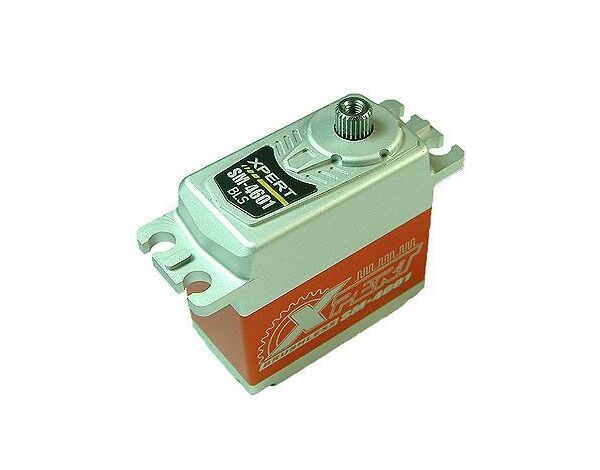

SM-4601 Xpert Servo Standard
6,0V Torque 17,54 Kg-cm, Speed 0,120 sec/60°
25 Zähne Verzahnung
Features
Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
Light weight design
Aluminum middle case for optimized thermal dissipation.
Strong Metal Gear
Glitch-free
Sophisticated error correction
High-Speed, High-precision 12-bit AD converter and CPU calculation
Fail safe
Over current protection
Over temperature protection
Start sonorant
Type Standard
Product Name SM-4601
Part Name SM-4601
Power Supply 4.8~6.6V
Speed (sec/ 60°) @4.8V: .150 sec/60° @6.0V: .120 sec/60° @6.6V: .109 sec/60°
Torque (oz/in) @4.8V: 194.74 oz-in @6.0V: 243.46 oz-in @6.6V: 267.75 oz-in
Torque (kg/cm) @4.8V: 14.03 kg-cm @6.0V: 17.54 kg-cm @6.6V: 19.29 kg-cm
Dimensions 40x37.80x20 mm
Weight 73.6 g
Frequency 200/333 HZ
Range 50~400 Hz
Center Position 1520 μs
