SM2202THV Xpert Servo HV 8.4V 7.5kg/0.03sec.

Write a review
CHF 95.90
Including tax
3 pieces available at supplier - Shipping in: 4 - 8 working days
+ −
Add to comparison list Add to wish list Rate this product
XPESM2202THV

Further products by Xpert >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products

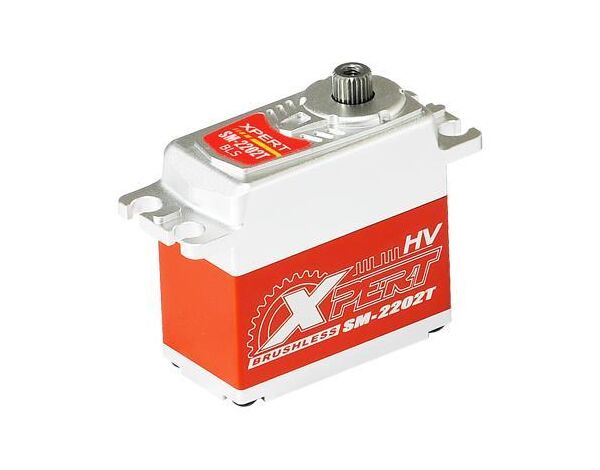

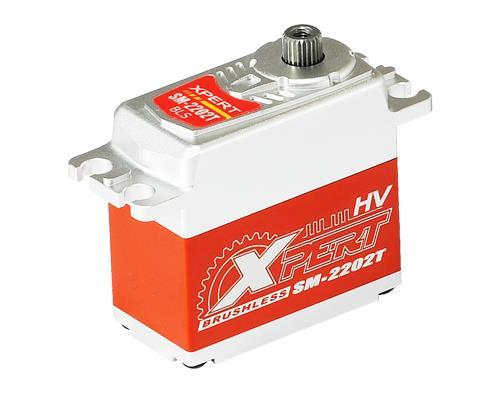

SM-2202T-HV Xpert Servo Heli-Tail High-Voltage

8,4V Torque 7,56 Kg-cm, Speed 0,035 sec/60°

25 Zähne Verzahnung

Features

Brushless motor design provides extremely high speed, top efficiency, and low power consumption.

4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.

Light weight design

All Aluminum case for the best thermal dissipation and durability.

Strong Metal Gear

Glitch-free

Sophisticated error correction

High-Speed, High-precision 12-bit AD converter and CPU calculation

Fail safe

Over current protection

Over temperature protection

Start sonorant

760us narrow band

Type Standard

Product Name SM-2202T-HV

Part Name SM-2202T-HV

Power Supply 6.0V~8.4V

Speed (sec/ 60°) @6.0V: .047 sec/60° @7.4V: .038 sec/60° @8.4V: .033 sec/60°

Torque (oz/in) @6.0V: 83.28 oz-in @7.4V: 102.71 oz-in @8.4V: 116.59 oz-in

Torque (kg/cm) @6.0V: 6.00 kg-cm @7.4V: 7.40 kg-cm @8.4V: 8.40 kg-cm

Dimensions 40x37.80x20 mm

Weight 72.60 g

Frequency 200/333 HZ

Range 50~400 Hz

Center Position 760 μs

Applications Helicopter Tail

Uper and Bottom Case XC-01

Hardware Parts Xpare-01

Gear Set XGS7900

Positioning time sec.:
  • 0.04
Manufacturer:
Xpert

Akku

Application:
  • Competition Wettbewerb
Width mm approx.:
  • 40
Height mm approx.:
  • 20
Weight g approx.:
  • 73

Ladegeräte

Max. Input voltage:
  • 8.4 Volt
Housing material:
Komplett Metall

Motoren Elektro

Motor type:
Brushless

Reifen

Modulation:
Digital

Fernsteuerung

Scope of application:
  • Flugmodelle

Servos

Housing size:
  • Standard Servo
Positioning force kg:
  • 7.5
Transmission:
Metall

Servohörner

Length mm approx.:
  • 38

Akkustecker

Plug:
  • JR Uniplug

Werkzeug

Waterproof:
Nein
Servo horn recording:
25 Zähne (Futaba - Savöx - Traxxas usw.) 25T
