RC4WD Trail Finder 2 Truck Kit SWB 4WD

Z-K0045 RC4WD Trail Finder 2 Truck Kit SWB 4x4 Chassis Kit

Performance Crawler Baukasten ohne:

- Elektronik

- Fernsteuerung

- Akku

- Ladegerät

- Karosserie (empfohlen: Tamiya Jeep Wrangler)

The TF2 SWB has both detailed styling and aggressive performance.

You will find a balance of capability and performance built into every TF2.

Performance of the TF2 is smooth and with its R3 single speed transmission, 4WD drivetrain, bullet-proof transfer case and quality metal components throughout.

The TF2 is truly a work of art in both appearance and performance.

Every TF2 SWB is compatible with a full range of option parts designed to enhance the performance

and add to the scale look of the only true scale 1/10 offroad truck... The Trailfinder 2 SWB.

Realistic Billet Aluminum Ladder Frame Chassis "SWB"

R3 Single Speed Transmission

Center Mounted Realistic 4x4 Transfer Case

Yota II Ultimate Scale Cast Axle

True to Scale Leaf Spring Suspension

5 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Black)

Mud Thrashers 1.9" Scale Tires

Realistic Bumpers and Skid Plate

Chassis Mounted Steering Servo

RC4WD Scale Shock Absorbers

Plastic Rod Ends

Full Ball Bearings

All New Hammer Transfer Case

Ratio - 1.47:1

Gears - Wide 32P steel gears

All New R3 Single Speed Transmission

Ratio: 1.78:1

Pinion/spur 14/64 = 4.57:1

Cast Yota 2 Axles

Ratio: 15/40 = 2.67:1

Width at hex: 176.5mm

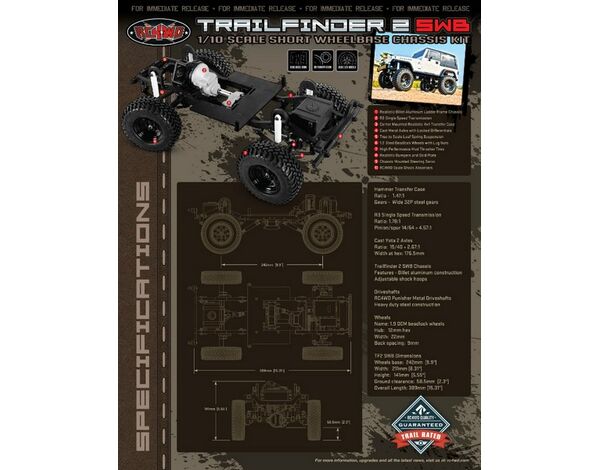

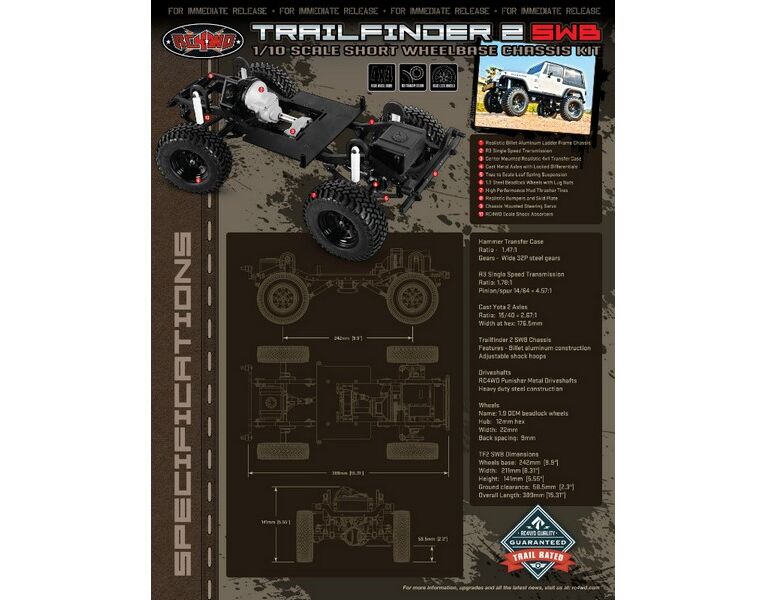

Trailfinder 2 SWB Chassis

Features - Billet aluminum construction Adjustable shock hoops

Driveshafts

RC4WD Punisher Metal Driveshafts

Heavy duty steel construction

Wheels

Type: 1.9 Steel Beadlock Wheels with Lug Nuts

Hub: Pin type

Width: 25mm

Back spacing: 11mm

TF2 SWB Dimensions

Wheelbase: 9.9in / 242mm

Width: 8.3in / 211mm

Height: 5.55in / 141mm

Ground Clearance: 2.3in / 58.5mm

Overall Length: 15.31in / 389mm

Weight: 62.1oz / 1.76kg

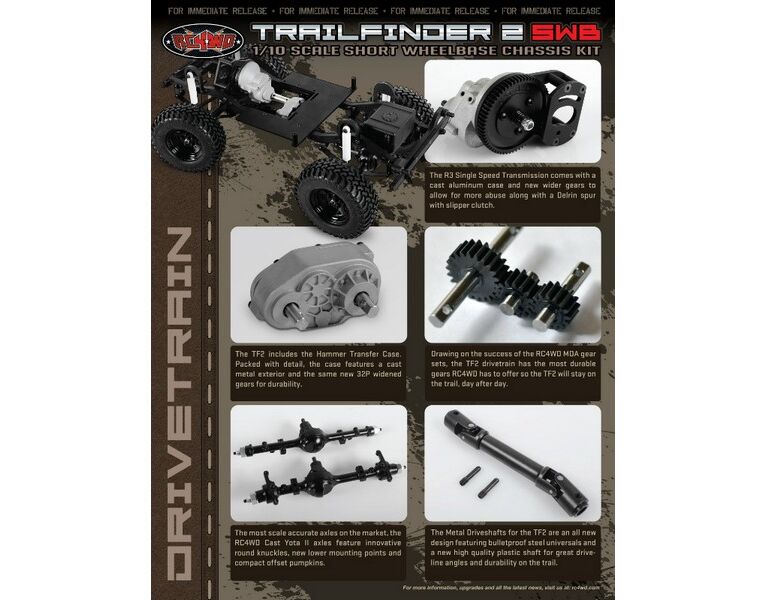

DRIVETRAIN

The TF2 includes the Hammer Transfer Case. Packed with detail, the case features a cast metal exterior and the same new 32P widened gears for durability.

The most scale accurate axles on the market, the RC4WD Cast Yota II axles feature innovative round knuckles, new lower mounting points and compact offset pumpkins.

The R3 Single Speed Transmission comes with a cast aluminum case and new wider gears to allow for more abuse along with a Delrin spur with slipper clutch.

Drawing on the success of the RC4WD MOA gear sets, the TF2 drivetrain has the most durable gears RC4WD has to offer so the TF2 will stay on the trail, day after day.

The Metal Driveshafts for the TF2 are an all new design featuring bulletproof steel universals and a new high quality plastic shaft for great driveline angles and durability on the trail.

Suspensions

The TF2 includes a set of RC4WD Ultimate Scale Shocks. Designed for ultimate scale looks and ultimate performance. The shocks are machined from billet aluminum and internally sprung.

The TF2 includes a set of RC4WD Black Stamped Steel 1.9 Internal Beadlock Wagon Wheels. Super tough black painted finish, aluminum internal ring and popular 5 lug design.

The TF2 Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts. 4-link conversion available

Every TF2 needs a tough set or rock grabbing tires and the included Mud Thrashers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

What's Included:

1x RC4WD Trail Finder 2 SWB

Universal Body Mounting Kit for TF2 SWB (Z-S1753)
