RC4WD Motor 80T 540 Crawler Brushed
- Order by 4 PM, delivered tomorrow! (stock items)
- 30 years of RC model building experience
- Top service by professional model builders
- Over 500 manufacturers - 200,000 products
Please sign in so that we can notify you about a reply

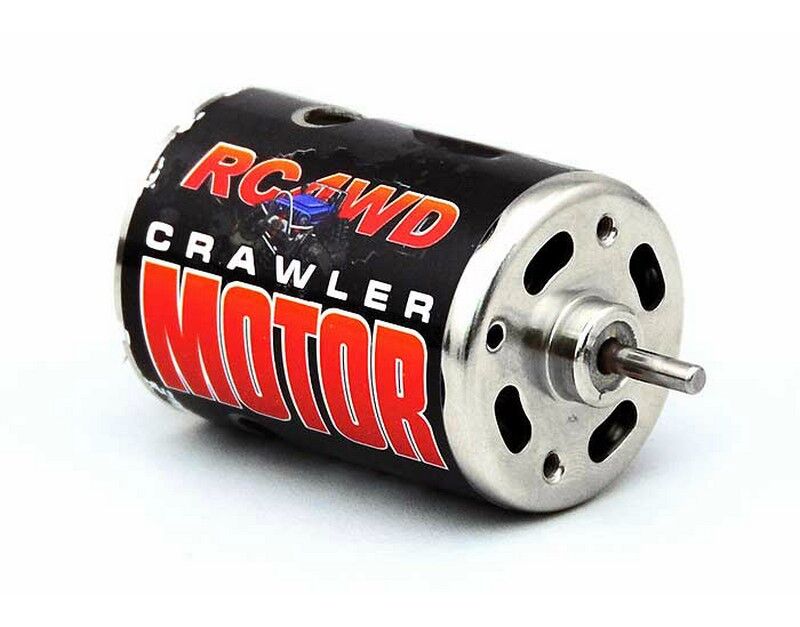

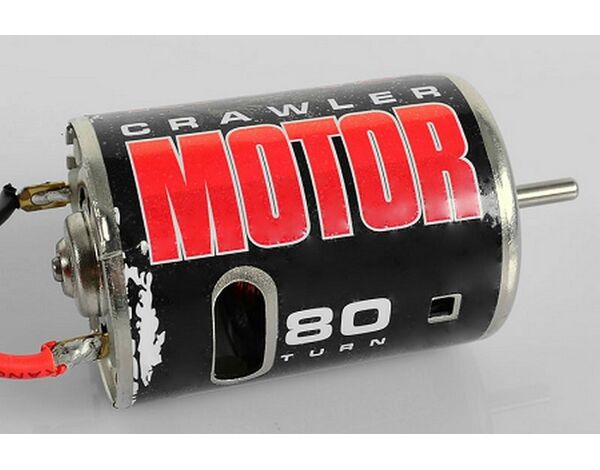

Z-E0001 RC4WD 540 Crawler Brushed Motor 80T Custom made to fit all popular Truck such as Bully, AX10, Trail Finder! Specifications: Custom made 540 Steel case Chrome plated case Build in capacitor for minimizing glith High torque magnet and rotor Small footprint (50mm long) Tuned for rock climbing and Scale driving Polished Bushings Body OD: 1.39in / 35.5mm Output Shaft Length: 0.43in / 11mm Output Shaft: 0.12in / 3.1mm Min and Max Voltage Range: 2.4V-30V Performance Specs: (At no load) RPM @ 7.2V : 5500 (?10%), .45Amp Current (Max Efficiency) RPM @ 7.2V : 4450 (?10%), 1.38Amp Current Designed Oprating temperature Range: -30?C to +80?C Motor End play : .50mm max Noise level: < 60db What's Included: 1x RC4WD 540 Crawler Brushed Motor (80T)
Akku
Weight g approx.:
- 150
Fahrtenregler
Max. Operating voltage:
- 22.2 Volt
Fan size:
- 540 (1/10 Standard 3650 (D=36mm)
Lipo cell count max.:
- 6
Motoren Elektro
Motor type:
Brushed
Shaft diameter mm:
- 3.14 mm (1/10 Standard)
Motor connection:
- Kabel mit Stecker Tamiya Style (4 mm)
Reifen
Diameter mm approx.:
- 36
Fernsteuerung
Scope of application:
- Fahrzeuge
Servohörner
Length mm approx.:
- 50
Werkzeug
Winding turn:
- 80
