RC4WD King Off-Road Dual Spring Shocks (90mm Med)

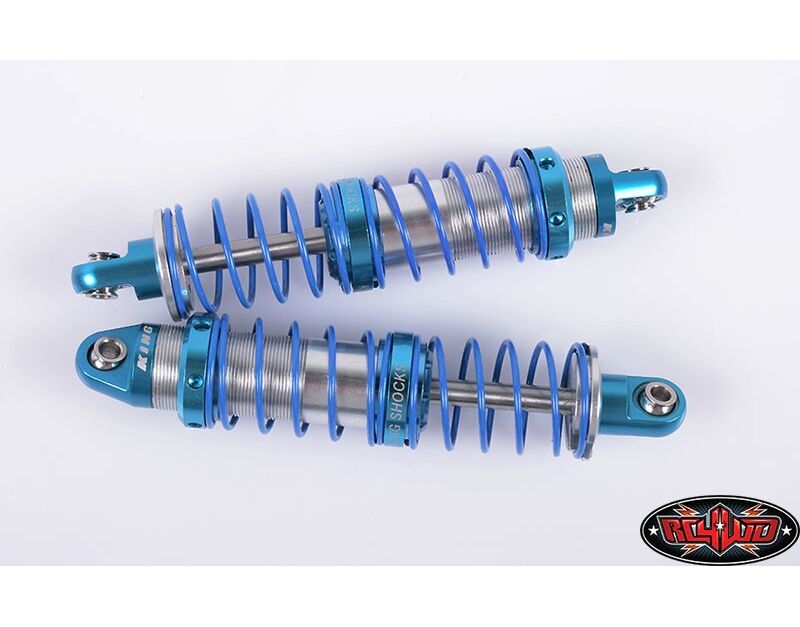

Z-D0061 RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (2)

These are the all new Licensed Dual Spring Shocks to hit the market and are officially Licensed from King Off-Road Shocks. These new shocks feature a completely new design from the ground up and are built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks!

Now in a larger body diameter.

Specifications:

Machined Billet Aluminum

King on Top and Retainer Ring

Dual Spring Design

Steel Rod End Ball

Ball Width: 0.25in / 6.3mm

Ball Lip Diameter: 0.19in / 4.8mm

Ball ID: 0.12mm / 3mm

Hole to Hole (Compressed): 2.55in / 65mm

Hole to Hole (Uncompressed): 3.54in /90mm

Overall Length: 3.9in / 99.3mm

Travel Length: 0.59in / 15mm

Shock Body OD: 0.49in / 12.6mm

Shaft OD: 0.15in / 3.97mm

Spring Body OD: 0.66in / 16.8mm

Spring Body ID: 0.58in / 14.96mm

Each Weight: 0.88oz / 25g

What's Included:

2x RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD)

1x King Decal Sheet

Notes:

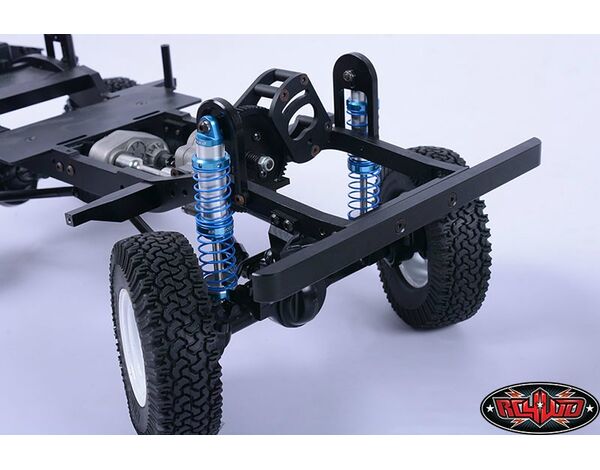

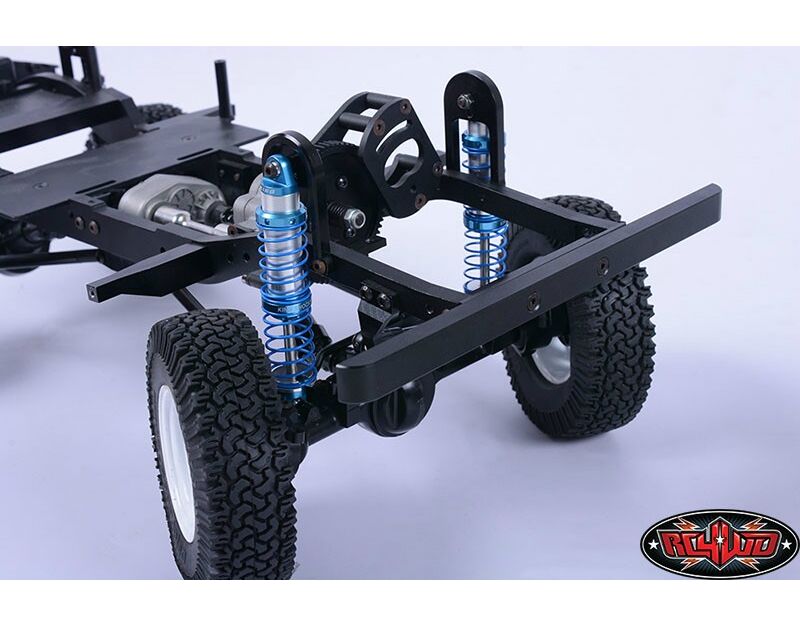

Fits RC4WD Gelande II Truck Kit w/Defender D90 Body Set (Z-K0001) (Front / Rear)

Fits Traxxas Rustler Front Axle, but you will need Steel Button Head Cap Screws M3 x 12mm (10) (Z-S0654)

Fits Traxxas TRX-4, but will require both 2mm (Z-S0600) and 3mm (Z-S0806) Black Spacers with M3 Holes

To use this shock with the SCX10 II, you will need to use a 3mm spacer on the top mounting point of the shock. (Z-S0806)

Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
