RC4WD EcoDrive Single Speed Getriebe Tamiya Truck

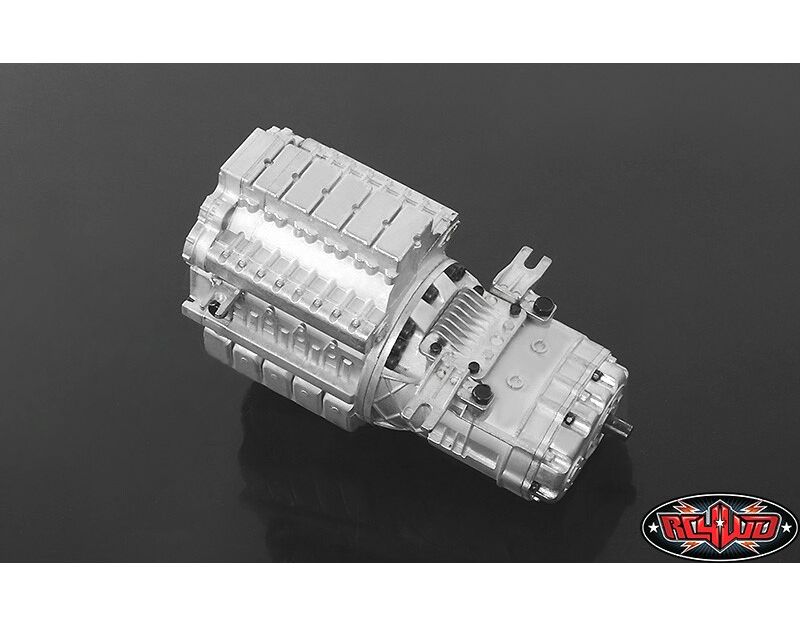

VV-VS0160 RC4WD EcoDrive Single Speed Transmission for Tamiya 1/14 Semi Trucks

A continuously variable transmission (CVT) (also known as a single-speed transmission) is an automatic transmission that can change seamlessly through an indefinite number of effective gear ratios between maximum and minimum values. This contrasts with other mechanical transmissions that offer a fixed number of gear ratios. The flexibility of a CVT allows the input shaft to maintain a constant angular velocity.

Specifications:

Surface Treatment: None

Processing Method: Die Cast

Material: Zinc Alloy

Reduction Ratio: 1:61.44 (Max); 1:9.83 (Min)

Gear Ratio: 1:24.57

Pulley Ratio: 1:2.5 Start, 2.5:1 maximum Rotating Speed

Recommended Brushed Motor: 12V540 Brushed Motor 27T~35T; Rotating Speed Range: 13200-16500 turn/MIN

Recommended Brushless Motor: 12V540 Brushless Motor 1300KV~1500KV; Rotating Speed Range: 15000-18000 turn/MIN

Output Shaft Diameter: 0.19in / 5mm; Length: 0.23in / 6mm

Mounting Holes: Chassis Direction X(2.16in / 55mm); Axle Direction Y(2.08in / 53mm)

Transmission Length: 4.33in / 110mm

Mounting the Motor total Length: 6.37in / 162mm

Weight: 26.17oz / 742g

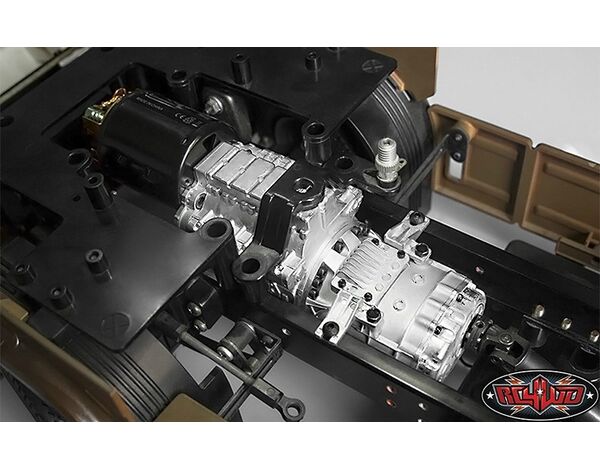

Designed to fit Tamiya 1/14 Semi Truck or Custom Project

What's Included:

1x EcoDrive 1/14 CVT Automatic Transmission for Tamiya 1/14 Semi Trucks

1x Motor Mount Part (Plain)

1x 20T 30P Hardened Steel Pinion Gear (Black)

1x M3 x 4mm Set Screw (Black)

4x M2 x 14mm SHCS (Black)

4x M3 x 6mm BHCS (Black) (Z-S0651)

2x M3 x 6mm SHCS (Black)

Notes:

Fits Tamiya 1/14 Series Truck,but you will need change Driveshaft
