RC4WD 750 Crawler Brushed Motor

Write a review
CHF 18.90
Including tax
6 pieces available at supplier - Shipping in: 4 - 8 working days
+ −
Add to comparison list Add to wish list Rate this product
RC4ZE0074

Further products by RC4WD >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products

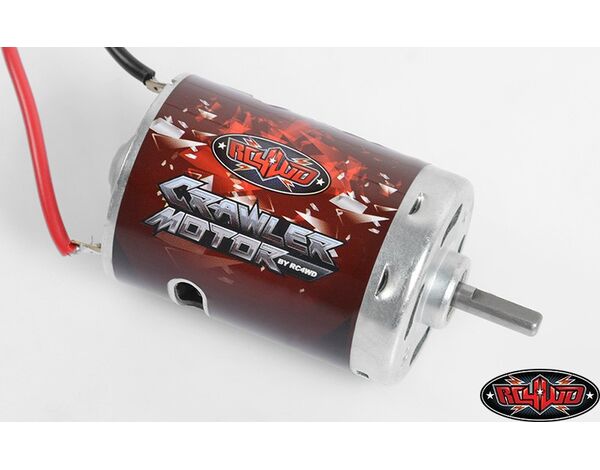

Z-E0074 RC4WD 750 Crawler Brushed Motor

Larger Can size 750 Brushed Motor that can be used in multiple applications.

Specifications:

Custom Made 750 Steel Case

Chrome Plated Case

Build in Capacitor for Minimizing Glitch

High Torque Magnet and Rotor

Tuned for Rock Climbing and Scale Driving

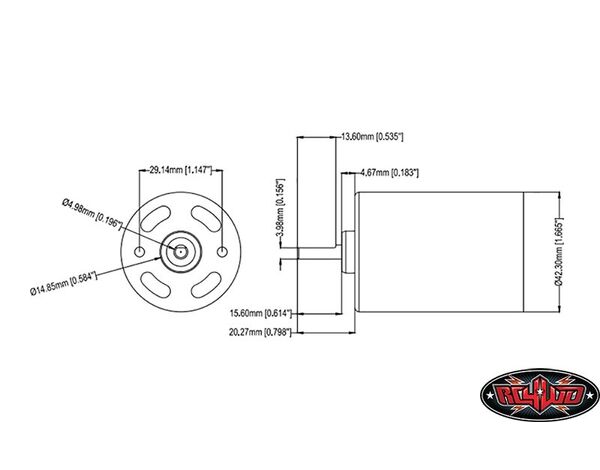

Body OD: 1.65in / 42mm

Length: 2.36in / 60mm

Output Shaft Length: 0.67in / 17mm

Output Shaft OD: 0.2in / 5mm

Min and Max Voltage Range: 2.4V-30V

Weight: 9.52oz / 270g

At No Load

RPM: 15050

Current: 1.88 AMPS

At Stall (Extrapolated)

Torque: 2100 mN-m

Current: 30.8 AMPS

At Maximum Efficiency

Efficiency: 56.41%

Torque: 416.0 mN-m

Speed: 12067 RPM

Current: 7.61 AMPS

Output: 51.5 Watts

At Maximum Power Output

Output: 81.8 Watts

Torque: 1049.5 mN-m

Speed: 7525 RPM

Current: 16.34 AMPS

What's Included:

1x RC4WD 750 Crawler Brushed Motor

Notes:

Perfect fit for the Killer Krawler II Axles

Manufacturer:
RC4WD

Akku

Weight g approx.:
  • 270

Fahrtenregler

Max. Operating voltage:
  • 22.2 Volt
Fan size:
  • 690 1/8 Standard (D=42mm) 4268 / 4274
Lipo cell count max.:
  • 6

Motoren Elektro

Motor type:
Brushed
Shaft diameter mm:
  • 5 mm (1/8 Standard)
Motor connection:
  • Kabel mit Stecker Tamiya Style (4 mm)

Reifen

Diameter mm approx.:
  • 42

Fernsteuerung

Scope of application:
  • Fahrzeuge

Servohörner

Length mm approx.:
  • 60

Werkzeug

Winding turn:
  • 80
Simon
Comment
Super Motor für den Summit 1/10 als Crawler
Passt perfekt in den Traxxas Summit 1/10 (ohne Modifikation der Motorhalterung wie auf YouTube beschrieben). Lässt das Auto seeeeehr sanft anfahren. Ist natürlich um Längen langsamer als ein Brushless, vermutlich wären beim Summit auch 12T statt 16T in Ordnung.
Anonymous
Comment
tres bien
Yol W.
Comment
SEHR GUT
Anonymous
Comment
Great!
Anonymous
Comment
gut
