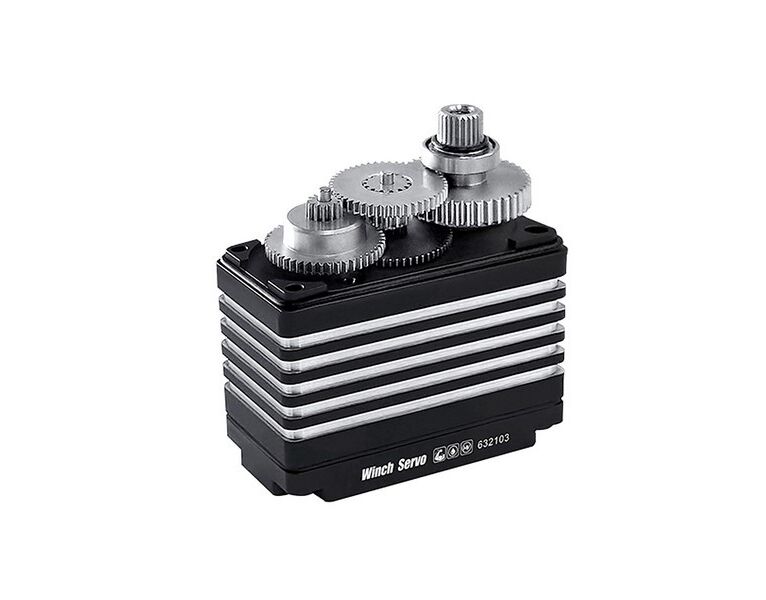

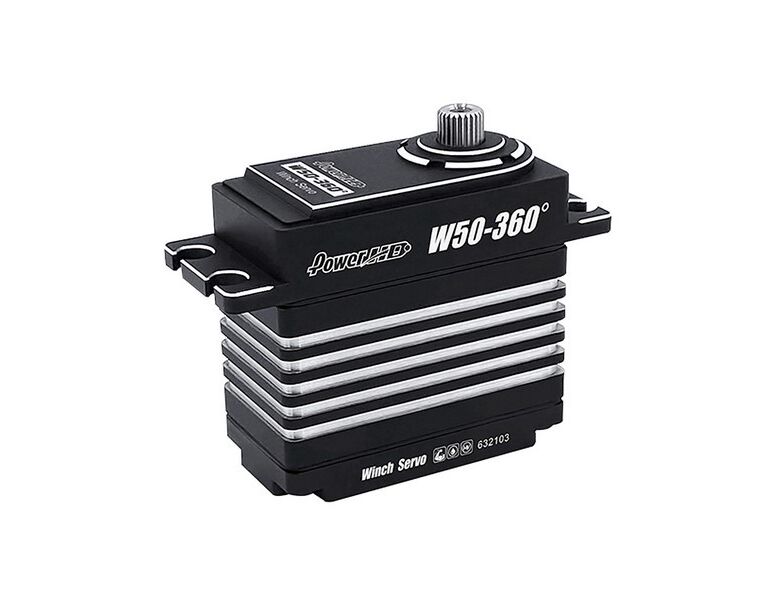

Power HD Servo W50-360° HV CNC Coreless Digital Servo 50.0KG 0.9sec 8.4V Windenservo
- Order by 4 PM, delivered tomorrow! (stock items)
- 30 years of RC model building experience
- Top service by professional model builders
- Over 500 manufacturers - 200,000 products
Please sign in so that we can notify you about a reply
Power HD Servo W50-360° HV CNC Coreless Digital Servo 50.0KG 0.9sec 8.4V Windenservo
Torque(6.0V): 35.0 kg-cm ( 486.1 oz/in)
Torque(7.4V): 45.0 kg-cm ( 625.0 oz/in)
Torque(8.4V): 50.0 kg-cm ( 694.4 oz/in)
Speed: 1.3 sec/360° (6.0V)¦1.0 sec/360° (7.4V)¦
Speed: 0.9 sec/360° (8.4V)
Operating Voltage: 6.0 ~ 8.4V DC Volts
Weight: 80 g (2.82 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Coreless Motor
Gear Type: Steel
Operating Temperature: -20~60°C
Working frequency: 1520µs / 333hz
Size: 40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)
Torque(6.0V): 35.0 kg-cm ( 486.1 oz/in)
Torque(7.4V): 45.0 kg-cm ( 625.0 oz/in)
Torque(8.4V): 50.0 kg-cm ( 694.4 oz/in)
Speed: 1.3 sec/360° (6.0V)¦1.0 sec/360° (7.4V)¦
Speed: 0.9 sec/360° (8.4V)
Operating Voltage: 6.0 ~ 8.4V DC Volts
Weight: 80 g (2.82 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Coreless Motor
Gear Type: Steel
Operating Temperature: -20~60°C
Working frequency: 1520µs / 333hz
Size: 40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)
Akku
Application:
- Hobby Einsteiger
Width mm approx.:
- 40
Height mm approx.:
- 20
Weight g approx.:
- 80
Ladegeräte
Max. Input voltage:
- 8.4 Volt
Housing material:
Komplett Metall
Motoren Elektro
Motor type:
Coreless
Reifen
Modulation:
Digital
Fernsteuerung
Scope of application:
- Boote / Schiffe
Servos
Housing size:
- Standard Servo
Positioning force kg:
- 50
Transmission:
Metall
Servohörner
Length mm approx.:
- 39
Akkustecker
Plug:
- JR Uniplug
Werkzeug
Waterproof:
Ja
Servo horn recording:
25 Zähne (Futaba - Savöx - Traxxas usw.) 25T
