Power HD Servo S15-Y HV CNC Brushless Digital Servo 16.5KG 0.05sec 8.4V

Write a review
CHF 149.90
Including tax
Not in stock at the supplier. Delivery date unknown. (Delivery time 4-12 weeks)
+
PHD055

Further products by Power HD >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products

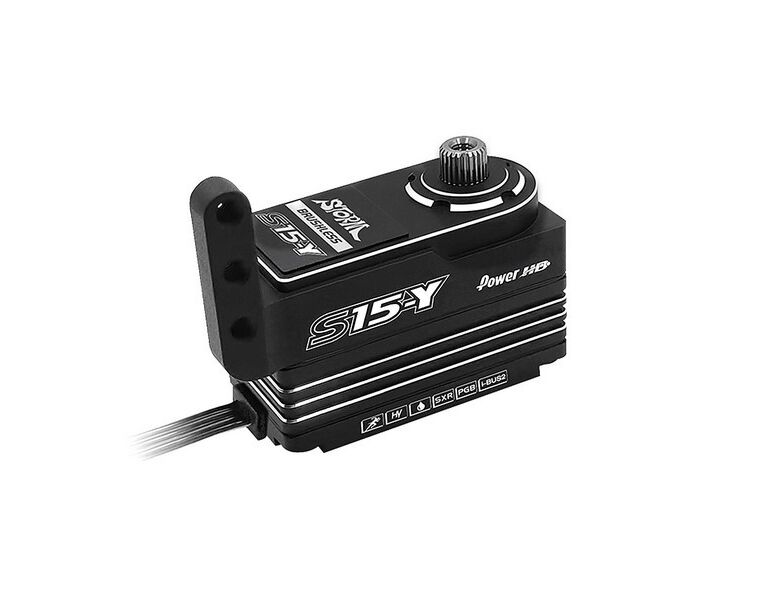

Power HD Servo S15-Y HV CNC Brushless Digital Servo 16.5KG 0.05sec 8.4V


Torque(6.0V): 11.5 kg-cm (159.7 oz/in)
Torque(7.4V): 15.0 kg-cm (208.3 oz/in)
Torque(8.4V): 16.5 kg-cm (229.1 oz/in)
Speed: 0.072 sec (6.0V) ¦ 0.060 sec (7.4V) ¦
Speed: 0.050 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 56.5 g (2.0 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Brushless Motor

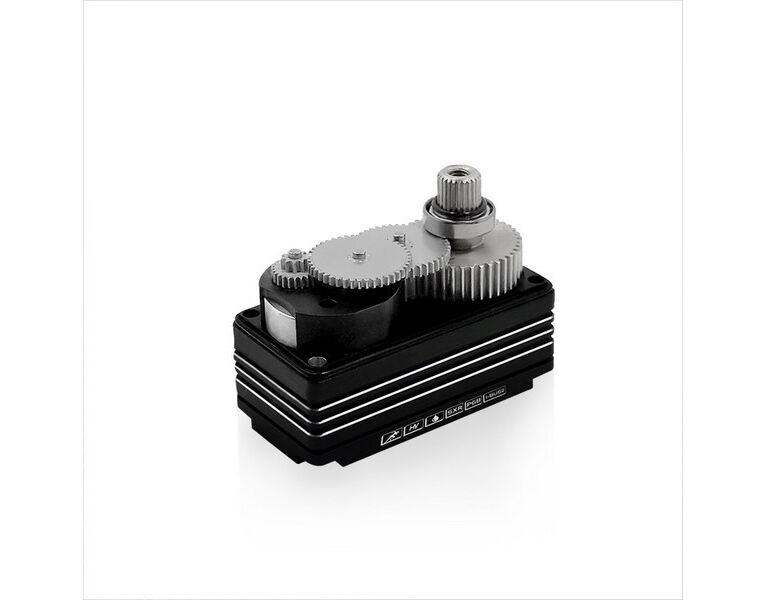

Gear Type: Titanium & Steel
Operating Temperature: -20~60°C
Working frequency: 1520µs / 333hz
Size: 41.0 x 20.0 x 26.0 mm ( 1.61 x 0.79 x 1.02 in)

Akku

Application:
  • Competition Wettbewerb
Width mm approx.:
  • 40
Height mm approx.:
  • 20
Weight g approx.:
  • 52

Ladegeräte

Max. Input voltage:
  • 8.4 Volt
Housing material:
Komplett Metall

Motoren Elektro

Motor type:
Brushless

Reifen

Modulation:
Digital

Fernsteuerung

Scope of application:
  • Fahrzeuge
  • Flugmodelle

Servos

Housing size:
  • Low Profile Servo
Positioning force kg:
  • 16
Transmission:
Metall

Servohörner

Length mm approx.:
  • 27

Balancer Verlängerungen

Fits for model:
  • Yokomo BD12

Akkustecker

Plug:
  • JR Uniplug

Werkzeug

Waterproof:
Nein
Servo horn recording:
25 Zähne (Futaba - Savöx - Traxxas usw.) 25T
