PHD-R6 Power HD Servo R6 / 6.5kg/0.09sec. 7,4V HV
- Order by 4 PM, delivered tomorrow! (stock items)
- 30 years of RC model building experience
- Top service by professional model builders
- Over 500 manufacturers - 200,000 products
Please sign in so that we can notify you about a reply

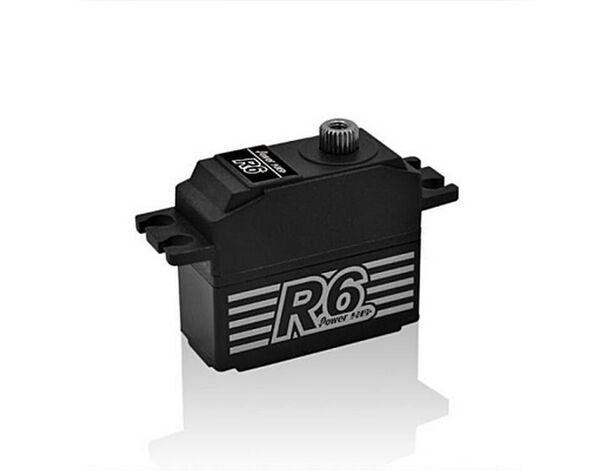

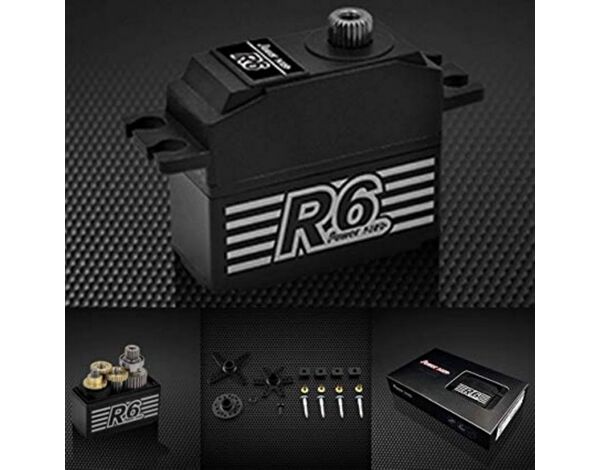

PHD-R6 Power HD Servo R6 / 6.5kg/0.09sec. 7,4V HV Coreless Digital
Torque(6.0V): 6.5 kg-cm (90.27 oz/in)
Torque(7.4V): 7.5 kg-cm (104.16 oz/in)
Speed: 0.09 sec (6.0V) │ 0.08 sec (7.4V)
Operating Voltage：6.0 ~ 8.4 DC Volts
Weight: 28.5 g (1.01 oz)
Bearing Type: Ball Bearing x 2
Motor Type：Coreless Motor

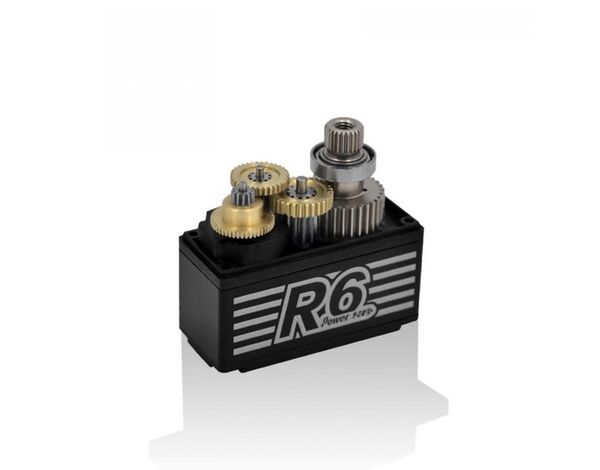

Gear Type：Copper & Aluminum
Operating Temperature：-20℃~60℃
Working frequence：1520μs / 333hz
Size：35.0 x 15.1 x 29.5 mm ( 1.38 x 0.59 x 1.136 in)
Torque(6.0V): 6.5 kg-cm (90.27 oz/in)
Torque(7.4V): 7.5 kg-cm (104.16 oz/in)
Speed: 0.09 sec (6.0V) │ 0.08 sec (7.4V)
Operating Voltage：6.0 ~ 8.4 DC Volts
Weight: 28.5 g (1.01 oz)
Bearing Type: Ball Bearing x 2
Motor Type：Coreless Motor
Gear Type：Copper & Aluminum
Operating Temperature：-20℃~60℃
Working frequence：1520μs / 333hz
Size：35.0 x 15.1 x 29.5 mm ( 1.38 x 0.59 x 1.136 in)
Positioning time sec.:
- 0.09
Manufacturer:
Power HD
Akku
Application:
- Hobby Racer / Basher
- Competition Wettbewerb
Width mm approx.:
- 35
Height mm approx.:
- 15
Weight g approx.:
- 29
Ladegeräte
Max. Input voltage:
- 7.4 Volt
Housing material:
Kunstoff / Metall
Motoren Elektro
Motor type:
Coreless
Reifen
Modulation:
Digital
Fernsteuerung
Scope of application:
- Fahrzeuge
Empfänger
Bags / Boxes:
- 0.09
Servos
Housing size:
- Mini Servo
Positioning force kg:
- 7.5
Transmission:
Metall
Servohörner
Length mm approx.:
- 30
Akkustecker
Plug:
- JR Uniplug
Werkzeug
Waterproof:
Nein
Servo horn recording:
25 Zähne (Futaba - Savöx - Traxxas usw.) 25T
