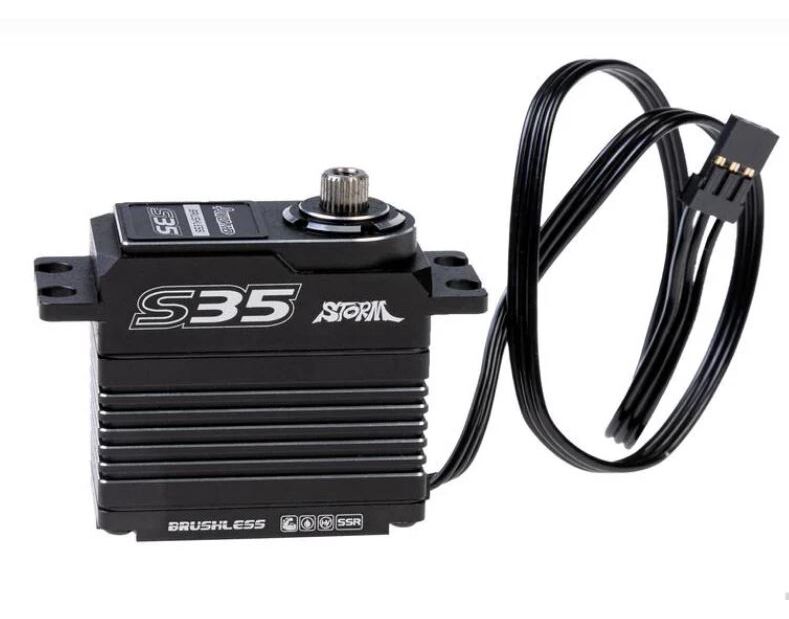

Power HD Servo PHD-S35 Storm S35 / 35kg / 0.07sec. / 8.4V HV Brushless Digital
- Order by 4 PM, delivered tomorrow! (stock items)
- 30 years of RC model building experience
- Top service by professional model builders
- Over 500 manufacturers - 200,000 products
Please sign in so that we can notify you about a reply
PHD-S35 Storm S35 / 35kg / 0.07sec. / 7.4V HV Brushless Digital / Standard
Torque(6.0V): 26.0 kg-cm (361.1 oz/in)
Torque(7.4V): 30.0 kg-cm (416.6 oz/in)
Torque(8.4V): 35.0 kg-cm (486.1 oz/in)
Speed: 0.095 sec (6.0V) │ 0.075 sec (7.4V) │
Speed: 0.070 sec (8.4V)
Operating Voltage：6.0 ~ 8.4 DC Volts
Weight: 75.0 g (2.65 oz)
Bearing Type：Ball Bearing x 2
Motor Type：Brushless Motor
Gear Type：Titanium & Steel
Operating Temperature: -20℃~60℃
Working frequence：1520μs / 333hz
Size：40.7 x 20.5 x 38.6 mm ( 1.60 x 0.81 x 1.52 in)
Torque(6.0V): 26.0 kg-cm (361.1 oz/in)
Torque(7.4V): 30.0 kg-cm (416.6 oz/in)
Torque(8.4V): 35.0 kg-cm (486.1 oz/in)
Speed: 0.095 sec (6.0V) │ 0.075 sec (7.4V) │
Speed: 0.070 sec (8.4V)
Operating Voltage：6.0 ~ 8.4 DC Volts
Weight: 75.0 g (2.65 oz)
Bearing Type：Ball Bearing x 2
Motor Type：Brushless Motor
Gear Type：Titanium & Steel
Operating Temperature: -20℃~60℃
Working frequence：1520μs / 333hz
Size：40.7 x 20.5 x 38.6 mm ( 1.60 x 0.81 x 1.52 in)
Akku
Application:
- Competition Wettbewerb
Width mm approx.:
- 41
Height mm approx.:
- 21
Weight g approx.:
- 75
Ladegeräte
Max. Input voltage:
- 8.4 Volt
Housing material:
Komplett Metall
Motoren Elektro
Motor type:
Brushed
Reifen
Modulation:
Digital
Fernsteuerung
Scope of application:
- Fahrzeuge
- Flugmodelle
- Boote / Schiffe
Servos
Housing size:
- Standard Servo
Positioning force kg:
- 36
Transmission:
Metall
Servohörner
Length mm approx.:
- 38
Balancer Verlängerungen
Fits for model:
- Absima ASSASSIN Gen2.0 - 4S
- Absima ASSASSIN Gen2.0 - 6S
- Absima STOKE Gen2.0 - 4S
- Absima STOKE Gen2.0 - 6S
- Absima Torch Gen2.0 - 4S
- Absima Torch Gen2.0 - 6S
- Amewi PLANET PRO BUGGY Brushless - 1/8 - 4S
- Amewi PLANET PRO MONSTER Brushless - 1/8 - 4S
- Arrma Kraton - 1/8 - BLX - 6S
- Arrma Nero - 1/8 Monstertruck - 6S
- Arrma Nero Big Rock - 1/8 Monstertruck - 6S
- Arrma Nero Fazon - 1/8 Monstertruck - 6S
- Arrma Notorious - 1/8 - BLX - 6S
- Arrma Outcast- 1/8 - BLX - 6S
- Arrma Talion - 1/8 - BLX - 6S
- Arrma Typhon - 1/8 - BLX - 6S
- Asso RC8B3 / RC8B4
- Carson Specter Buggy 1/8 - 6S
- Carson Virus Buggy 1/8 - 4S
- Carson Virus Rocket Buggy 1/8 - 6S
- DF Models Destructor BL Brushless - 1/8 - 3S
- DF Models Destructor BR Truggy - 1/8
- DF Models Destructor MT Brushless - 1/8 - 3S
- HB D817 4WD Nitro Buggy - 1/8
- HB D817T 4WD Nitro Truggy - 1/8
- HB D819 4WD Nitro Buggy - 1/8
- HB E817T 4WD Truggy - 1/8
- HB E819 4WD Buggy - 1/8
- HB E8T 4WD Truggy - 1/8
- Hobao Hyper MT - 6S
- Hobao Hyper SS Truggy - 6S
- Hobao Hyper VSE - 4S
- HPI Savage XL Flux - 6S
- HPI Trophy Buggy Flux - 4S
- HPI Vorza Buggy Flux - 6S
- Jamara Ultra BL8 Buggy - 1/8 - 2S
- Kyosho Inferno MP10 Nitro Buggy
- Kyosho Inferno MP10E Buggy
- Kyosho Inferno MP9 Nitro Buggy
- Kyosho Inferno MP9E Buggy
- Kyosho INFERNO NEO 3.0 Nitro
- Kyosho Inferno NEO 3.0VE - 4S
- Losi 8IGHT-E
- Losi TLR 8IGHT 4WD Buggy 1/8
- Losi TLR 8IGHT-XT 4WD Truggy 1/8
- LRP S8 Rebel BX 1/8 Buggy
- MING-YANG HELIOS Flux Buggy 1/8
- MING-YANG HELIOS Nitro Buggy 1/8
- MODSTER CITO BRUSHLESS BUGGY - 1/8 - 4S
- Mugen MBX-6
- Mugen MBX-7
- Mugen MBX-8
- Mugen MBX-8 ECO
- Reely BIG1 Brushless Monstertruck - 1/8 - 4S
- Serpent Cobra 811 Truck-E - 1/8 - 6S
- Serpent SRX8 Buggy Nitro - 1/8
- Serpent SRX8 Truggy-E - 1/8
- Serpent SRX8-E Buggy - 1/8
- Sworkz S35
- T2M Pirate 8.6E Brushless Buggy - 1/8 - 4S
- Team Corally Dementor / Jambo XP 6S
- Team Corally Kronos / Muraco XP 6S
- Team Corally Punisher XP 6S
- Team Corally Python / Radix XP 6S
- Team Corally Shogun XP 6S
- Team Magic B8ER - 4S
- Team Magic B8ER - 6S
- Team Magic E6 III BES - 6S
- Team Magic E6 J-Star - 6S
- Team Magic E6 Raptor - 6S
- Traxxas E-Maxx 1/10 VXL - 6S
- Traxxas E-Revo / ERevo 1/10 VXL - 6S
- Traxxas E-Revo 2.0 / ERevo 1/10 VXL - 6S
- Traxxas Revo 3.3
- Traxxas Sledge Monstertruck 1/8 VXL - 6S
- Traxxas Summit 1/10 - EVX-2 - 4S
- WRC SBX - 1/8 Nitro Buggy
- WRC SBXE - 1/8 Buggy
- Xray XB8
- Xray XB8E
Akkustecker
Plug:
- JR Uniplug
Werkzeug
Waterproof:
Ja
Servo horn recording:
25 Zähne (Futaba - Savöx - Traxxas usw.) 25T
