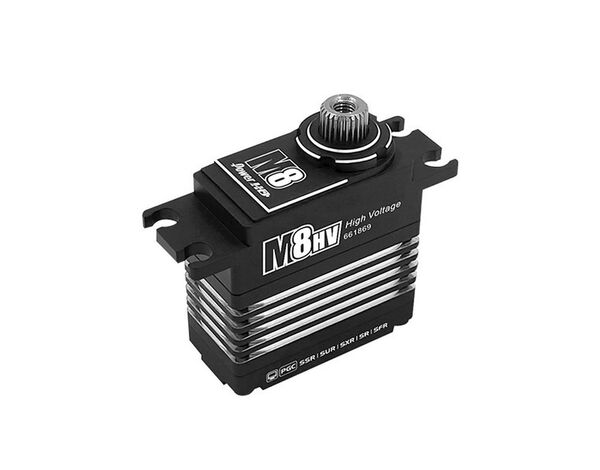

Power HD Servo M8 HV CNC Coreless Digital Servo 7.6KG 0.058sec 8.4V

Write a review
CHF 81.90
Including tax
Not in stock at supplier. Delivery date unknown. (Delivery time min. 4 weeks)
+ −
Add to comparison list Add to wish list Rate this product
PHD044

Further products by Power HD >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products

Power HD Servo M8 HV CNC Coreless Digital 7.6KG 0.058sec 8.4V

Torque(4.8V): 4.3 kg-cm (59.7 oz/in)

Torque(6.0V): 6.3 kg-cm (87.5 oz/in)

Torque(7.4V): 7.6 kg-cm (105.5 oz/in)

Torque(8.4V): 8.5 kg-cm (118.0 oz/in)

Speed: 0.10 sec (4.8V) ¦ 0.079 sec (6.0V)

Speed: 0.068 sec (7.4V) ¦ 0.058 sec (8.4V)

Operating Voltage: 4.8 ~ 8.4 DC Volts

Weight: 28.6 g (1.0 oz)

Motor Type: Coreless Motor

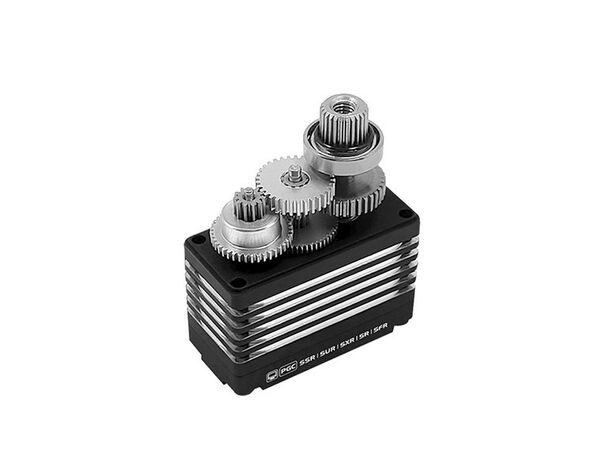

Gear Type: Titanium & Steel

Operating Temperature: -20~60°C

Working frequency: 1520µs / 333hz

Size: 28.5 x 13.4 x 29.0 mm ( 1.12 x 0.53 x 1.14 in)

Positioning time sec.:
  • 0.06
Manufacturer:
Power HD

Akku

Application:
  • Competition Wettbewerb
Width mm approx.:
  • 29
Height mm approx.:
  • 13
Weight g approx.:
  • 28

Ladegeräte

Max. Input voltage:
  • 8.4 Volt
Housing material:
Komplett Metall

Motoren Elektro

Motor type:
Coreless

Reifen

Modulation:
Digital

Fernsteuerung

Scope of application:
  • Fahrzeuge
  • Flugmodelle

Servos

Housing size:
  • Mini Servo
Positioning force kg:
  • 7.5
Transmission:
Metall

Servohörner

Length mm approx.:
  • 29

Balancer Verlängerungen

Fits for model:
  • Awesomatix A12 Pan Car
  • Roche Rapide P12 Pan Car
  • Schumacher Atom - 1/12
  • Schumacher Eclipse - 1/12
  • Team Corally SSX-12 1/12 - Pan Car

Akkustecker

Plug:
  • JR Uniplug

Werkzeug

Waterproof:
Nein
Servo horn recording:
Andere
