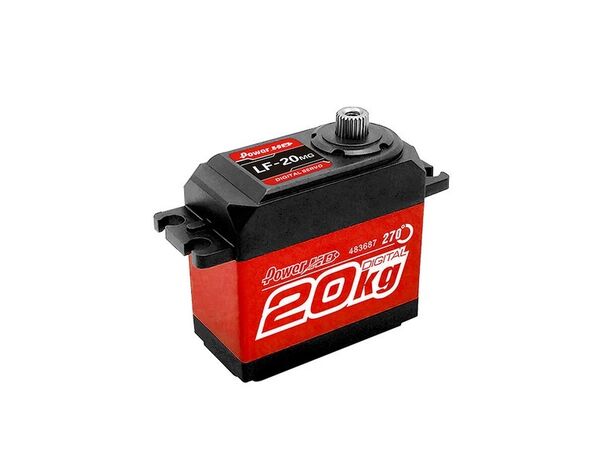

Power HD Servo LF-20MG 270° Robot 20.KG 0.16sec 6.0V

Write a review
CHF 31.90
Including tax
Not in stock at the supplier. Delivery date unknown. (Delivery time 4-12 weeks)
+
PHD012

Further products by Power HD >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products
Power HD Servo LF-20MG 270° Robot 20.KG 0.16sec 6.0V


Torque(4.8V): 16.5 kg-cm (229.1 oz/in)
Torque(6.6V): 20.0 kg-cm (277.7 oz/in)
Speed: 0.18 sec (4.8V) ¦ 0.16 sec (6.6V)
Operating Voltage: 4.8 ~ 6.6 DC Volts
Weight: 60 g (2.12 oz)
Bearing Type: Ball Bearing x 2
Motor Type: DC Motor

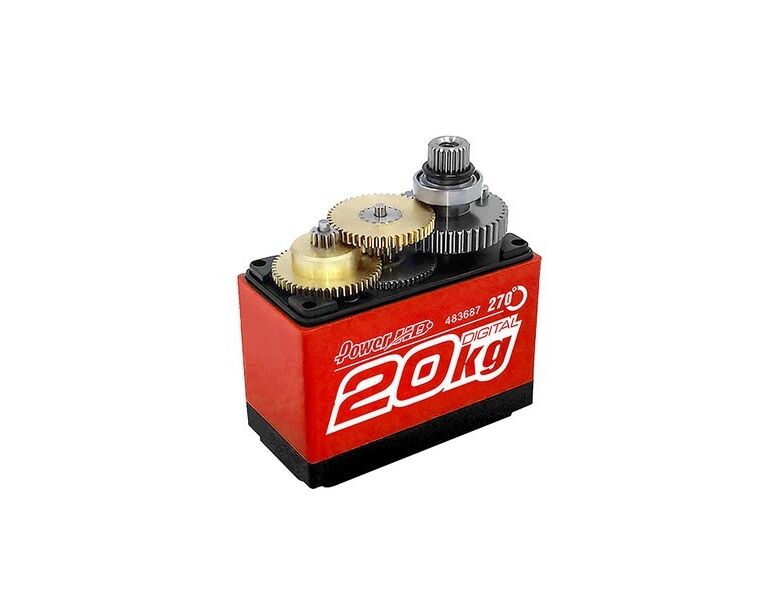

Gear Type: Copper & Aluminum
Operating Temperature: -20~60°C
Working frequency: 1520µs / 333hz
Size: 40.7 x 20.5 x 39.5 mm ( 1.60 x 0.80 x 1.55 in)

Rotation Degree: 270°

Akku

Application:
  • Hobby Einsteiger
Width mm approx.:
  • 40
Height mm approx.:
  • 20
Weight g approx.:
  • 20

Ladegeräte

Max. Input voltage:
  • 6.0 Volt
Housing material:
Komplett Metall

Motoren Elektro

Motor type:
Coreless

Reifen

Modulation:
Digital

Fernsteuerung

Scope of application:
  • Fahrzeuge
  • Boote / Schiffe

Servos

Housing size:
  • Standard Servo
Positioning force kg:
  • 20
Transmission:
Metall

Servohörner

Length mm approx.:
  • 39

Akkustecker

Plug:
  • JR Uniplug

Werkzeug

Waterproof:
Ja
Servo horn recording:
25 Zähne (Futaba - Savöx - Traxxas usw.) 25T

No reviews found
