Power HD Servo HD-DSM44 1.6kg 0.07sec.6V Digital

Write a review
CHF 15.90
Including tax
Available immediate delivery: 2 pcs.
+ −
Add to comparison list Add to wish list Rate this product
PHD015

Further products by Power HD >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products

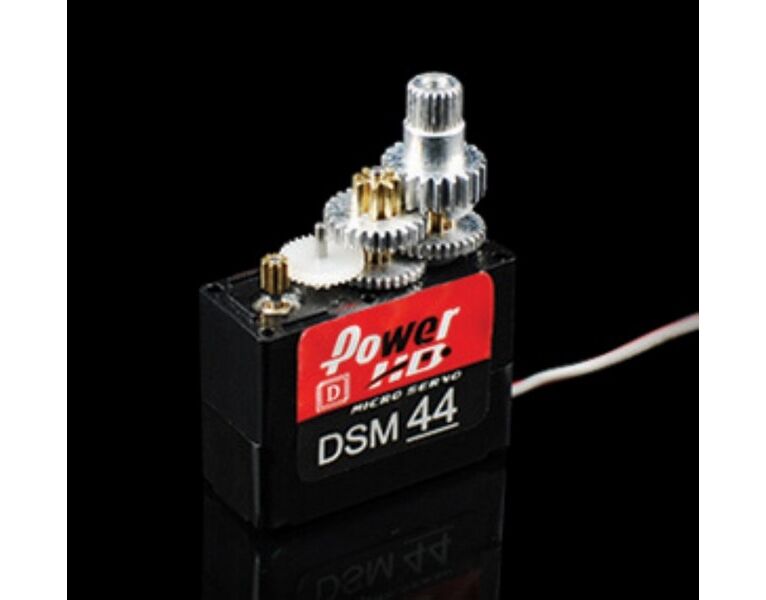

PowerHD Servo HD-DSM44 1.6kg 0.07sec.6V Digital

Torque(4.8V): 1.20 kg-cm (16.7 oz/in)

Torque(6.0V): 1.60 kg-cm (22.2 oz/in)

Speed: 0.09 sec (4.8V) │ 0.07 sec (6.0V)

Operating Voltage：4.8 ~ 6.0 DC Volts

Weight: 5.8 g (0.20 oz)

Bearing Type：1BB

Motor Type：Coreless Motor

Gear Type：Aluminum

Operating Temperature：-20℃~60℃

Working frequence：1520μs / 333hz

Size：20.2 x 8.7 x 24.0 mm ( 0.79 x 0.34 x 0.94 in)

Positioning time sec.:
  • 0.07
Manufacturer:
Power HD

Akku

Application:
  • Hobby Einsteiger
Width mm approx.:
  • 20
Height mm approx.:
  • 9
Weight g approx.:
  • 6

Ladegeräte

Max. Input voltage:
  • 6.0 Volt
Housing material:
Kunstoff

Motoren Elektro

Motor type:
Coreless

Reifen

Modulation:
Digital

Fernsteuerung

Scope of application:
  • Fahrzeuge
  • Flugmodelle
  • Boote / Schiffe

Servos

Housing size:
  • Micro Servo
Positioning force kg:
  • 1.6
Transmission:
Metall

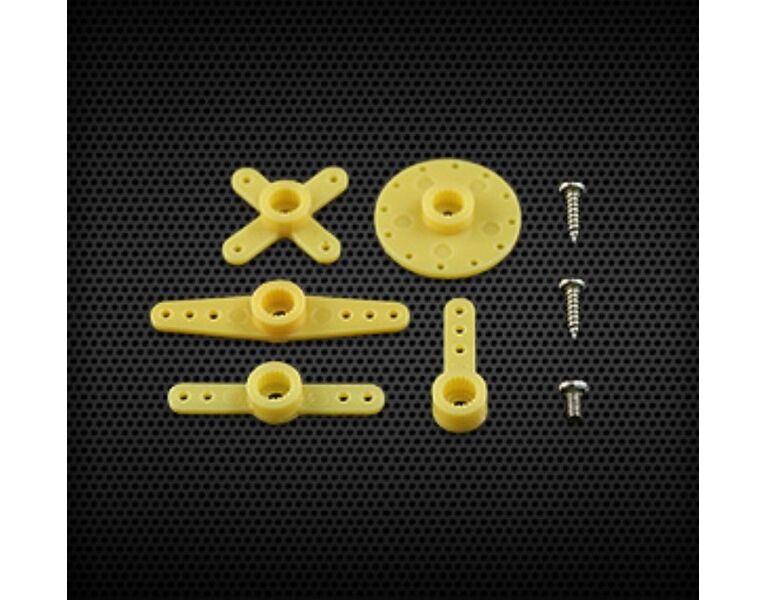

Servohörner

Length mm approx.:
  • 24

Akkustecker

Plug:
  • JR Uniplug

Werkzeug

Waterproof:
Nein
Servo horn recording:
Andere
