Power HD Servo HD-3001HB 4.4kg 0.12sec.6V Analog

Write a review
CHF 11.90
Including tax
Available immediate delivery: 2 pcs.
+ −
Add to comparison list Add to wish list Rate this product
PHD007

Further products by Power HD >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products

PowerHD Servo HD-3001HB 4.4kg 0.12sec.6VAnalog Standard

Torque(4.8V): 3.5 kg-cm (48.6 oz/in)

Torque(6.0V): 4.4 kg-cm (61.1 oz/in)

Speed: 0.14 sec (4.8V) │ 0.12 sec (6.0V)

Operating Voltage：4.8 ~ 6.0 DC Volts

Weight: 43.0 g (1.52 oz)

Bearing Type：Ball Bearing x 2

Motor Type：DC Motor

Gear Type：Plastic

Operating Temperature：-20℃~60℃

Working frequence：1520μs / 50hz

Size：40.7 x 20.5 x 39.5 mm ( 1.60 x 0.81 x 1.56 in)

Positioning time sec.:
  • 0.12
Manufacturer:
Power HD

Akku

Application:
  • Hobby Einsteiger
Width mm approx.:
  • 41
Height mm approx.:
  • 21
Weight g approx.:
  • 43

Ladegeräte

Max. Input voltage:
  • 6.0 Volt
Housing material:
Kunstoff

Motoren Elektro

Motor type:
Brushed

Reifen

Modulation:
Analog

Fernsteuerung

Scope of application:
  • Fahrzeuge
  • Boote / Schiffe

Servos

Housing size:
  • Standard Servo
Positioning force kg:
  • 4.5
Transmission:
Kunstoff

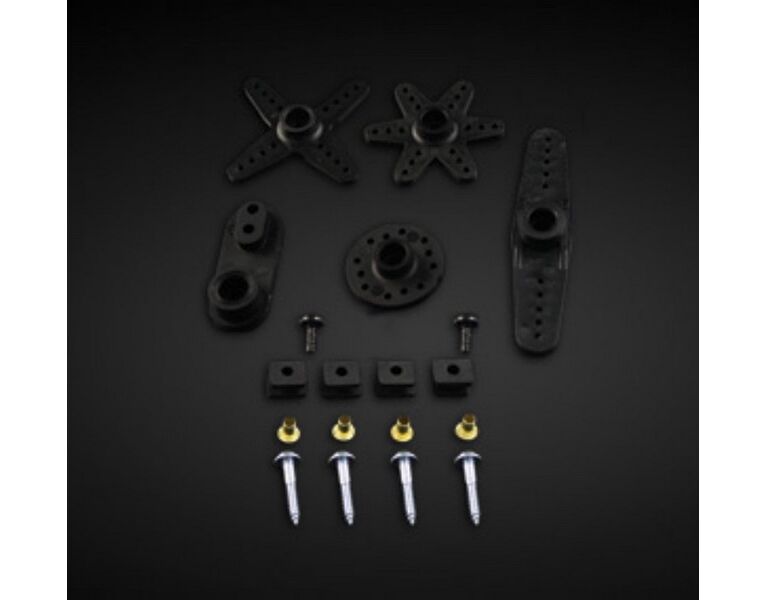

Servohörner

Length mm approx.:
  • 40

Akkustecker

Plug:
  • JR Uniplug

Werkzeug

Waterproof:
Nein
Servo horn recording:
25 Zähne (Futaba - Savöx - Traxxas usw.) 25T
