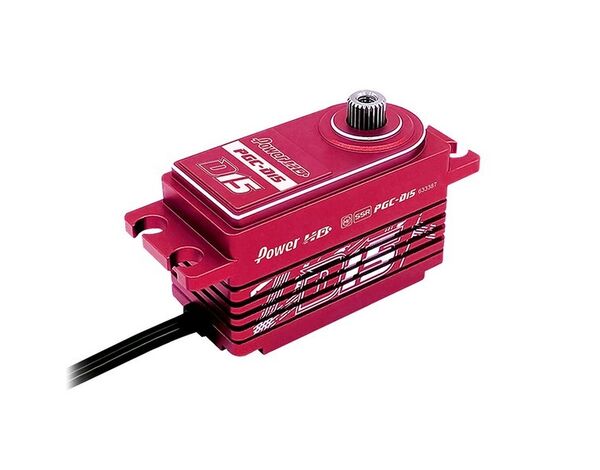

Power HD Servo D15 Red HV CNC Coreless Digital Servo 16.5KG 0.095sec 7.4V

Write a review
CHF 93.90
Including tax
Not in stock at the supplier. Delivery date unknown. (Delivery time 4-12 weeks)
+ −
Add to comparison list Add to wish list Rate this product
PHD043

Further products by Power HD >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products
Power HD Servo D15 Red HV CNC Coreless Digital Servo 16.5KG 0.095sec 7.4V


Torque(6.0V): 13.5 kg-cm ( 187.5 oz/in)
Torque(7.4V): 16.5 kg-cm ( 229.1 oz/in)
Torque(8.4V): 18.0 kg-cm ( 250.0 oz/in)
Speed: 0.10 sec (6.0V) ¦ 0.095 sec (7.4V) ¦
Speed: 0.085 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 55.0 g (1.94 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Coreless Motor
Gear Type: Titanium & Steel
Operating Temperature: -20~60°C
Working frequency: 1520µs / 333hz
Size: 41.0 x 20.0 x 26.3 mm ( 1.61 x 0.79 x 1.04 in)

Akku

Application:
  • Competition Wettbewerb
Width mm approx.:
  • 41
Height mm approx.:
  • 20
Weight g approx.:
  • 55

Ladegeräte

Max. Input voltage:
  • 7.4 Volt
Housing material:
Komplett Metall

Motoren Elektro

Motor type:
Coreless

Reifen

Modulation:
Digital

Fernsteuerung

Scope of application:
  • Fahrzeuge
  • Flugmodelle

Servos

Housing size:
  • Low Profile Servo
Positioning force kg:
  • 16
Transmission:
Metall

Servohörner

Length mm approx.:
  • 26

Akkustecker

Plug:
  • JR Uniplug

Werkzeug

Waterproof:
Nein
Servo horn recording:
25 Zähne (Futaba - Savöx - Traxxas usw.) 25T
