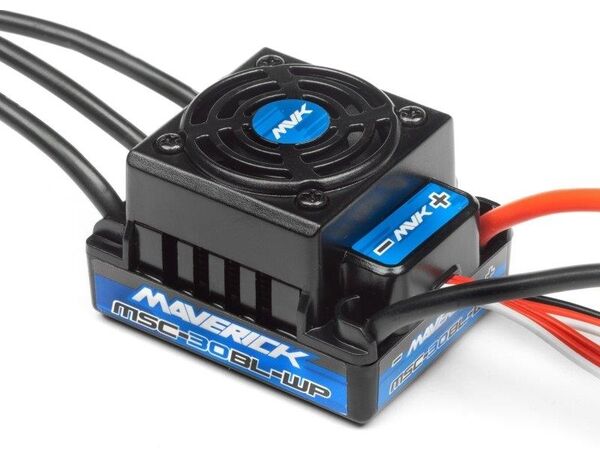

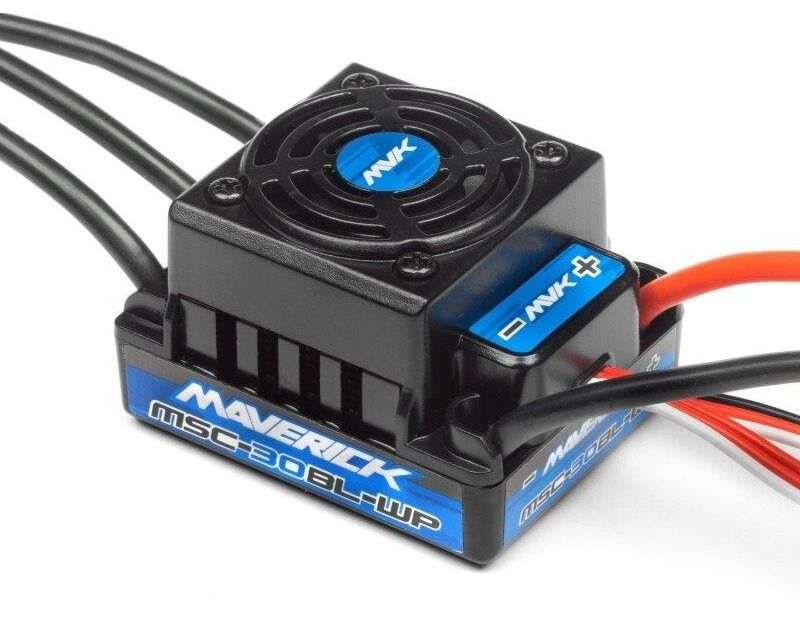

MV30003 MSC-30BL-WP BRUSHLESS SPEED CONTROLLER (T-PLUG)

Replacement Brushless ESC for the Strada Red series of cars

Can also be used to upgrade the standard Strada when used in conjunction with a Brushless Motor:

#MV22602 - MM - 22BL 3215KV Brushless Motor

MSC-30BL-WP BRUSHLESS SPEED CONTROLLER

Features

Water-resistant* and dust-proof. The ESC has been designed to work in wet conditions.

2-3S Capable (for 3S you must change the standard 5V cooling fan to a 12V cooling fan, or supply the 5V cooling fan from the receiver 5-6V);

Compatible with sensorless brushless motor.

2 running modes (“Forward with brake” mode, “Forward/Backward with brake” mode).

Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment.

4 Punch modes from “Soft” to “Very aggressive” to be suitable for different chassis, tires and tracks.

Multiple protection features: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection /Throttle signal loss protection / Motor blocked protection.

Easily programmed with the “SET” button

*Please remove the cooling fan when running the ESC very wet conditions.

*After running the ESC in wet conditions, please clean and dry it to avoid the oxidation to copper connectors

Specification

Continuous Current: 45A

Burst Current: 220A

Resistance: 0.0012 ohm

Application: 1/10 scale on-road and off-road

Motor Limit:

2S LiPo or 6 cells NiMH - On-road: ≥9T, Off-road: ≥12T, 3650 size motor

3S LiPo or 9 cells NiMH - On-road: ≥12T, Off-road: ≥18T, 3650 size motor

Battery: 4-9 Cells NiMH or 2-3S Lipo**

Built-in BEC: 6V/2A

Program Port: Multiplexed with cooling fan port

Motor Type: Sensorless Brushless

Dimension: 48.5 x 38 x 32mm

Weight (with wires): 90g

**1) For 4-6 cells NiMH or 2S Lipo: You needn't change the 5V cooling fan on the ESC;

**2) For 7-9 cells NiMH or 3S Lipo: You must change the original 5V cooling fan to 12V cooling fan, or supply the 5V cooling fan from the receiver (5-6V);
