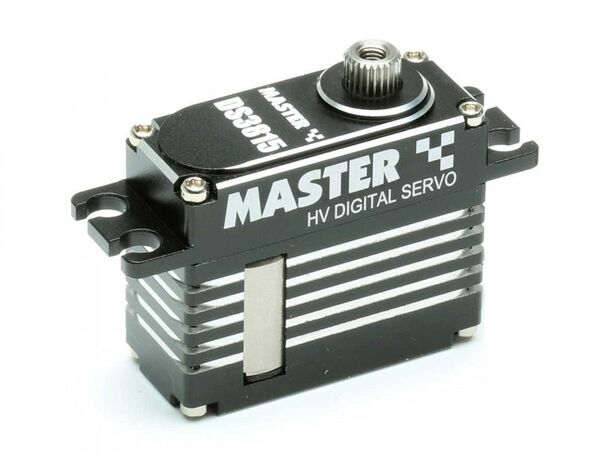

MASTER Servo DS3815 HV
Leistungsstarkes, schnelles 15mm Midi Servo wie es in Kunstflugmodellen, Jetmodellen und Helicopter häufig zum Einsatz kommt.
Technische Daten
Betriebsspannung = 4.8 - 8.4V
Stellkraft = 22kg @ 7.4V
Stellzeit = 0.08s @ 60° / 8.4V
Betriebsfrequenz = 1520μs/330hz
Betriebswinkel = ±63°@800μs-2200μs
Breite = 15.0mm
Länge = 35.5mm
Höhe = 30.0mm
Gewicht = 43g
Digital Servo
Komplett Alu Gehäuse CNC gefräst
Metallgetriebe (Stahl)
Abtriebswelle 25Z
Glockenanker Motor (Coreless)
Kugellager (2)
Anschlusskabel 3-polig JR/Futaba Uni
Inkl. verschiedene Kunststoffsteuerscheiben/Hebel, Schrauben
Leistungsstarkes, schnelles 15mm Midi Servo wie es in Kunstflugmodellen, Jetmodellen und Helicopter häufig zum Einsatz kommt.
Technische Daten
Betriebsspannung = 4.8 - 8.4V
Stellkraft = 22kg @ 7.4V
Stellzeit = 0.08s @ 60° / 8.4V
Betriebsfrequenz = 1520μs/330hz
Betriebswinkel = ±63°@800μs-2200μs
Breite = 15.0mm
Länge = 35.5mm
Höhe = 30.0mm
Gewicht = 43g
Digital Servo
Komplett Alu Gehäuse CNC gefräst
Metallgetriebe (Stahl)
Abtriebswelle 25Z
Glockenanker Motor (Coreless)
Kugellager (2)
Anschlusskabel 3-polig JR/Futaba Uni
Inkl. verschiedene Kunststoffsteuerscheiben/Hebel, Schrauben
Akku
Width mm approx.:
- 15
Height mm approx.:
- 30
Weight g approx.:
- 43
Ladegeräte
Max. Input voltage:
- 8.4 Volt
Housing material:
Komplett Metall
Motoren Elektro
Motor type:
Coreless
Reifen
Modulation:
Digital
Fernsteuerung
Scope of application:
- Fahrzeuge
- Flugmodelle
- Boote / Schiffe
Servos
Housing size:
- Standard Servo
Positioning force kg:
- 22
Servohörner
Length mm approx.:
- 36
Akkustecker
Plug:
- JR Uniplug
Werkzeug
Servo horn recording:
25 Zähne (Futaba - Savöx - Traxxas usw.) 25T
