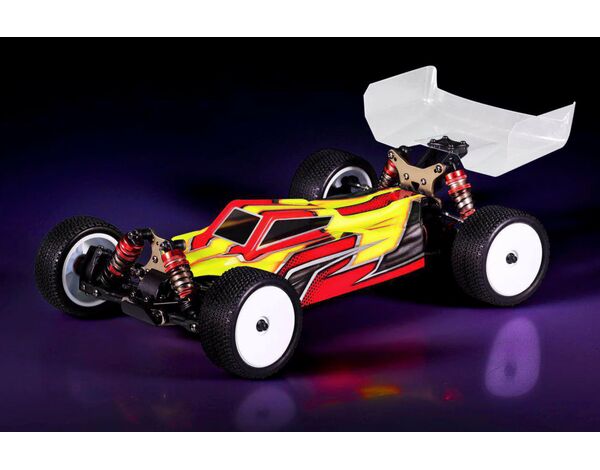

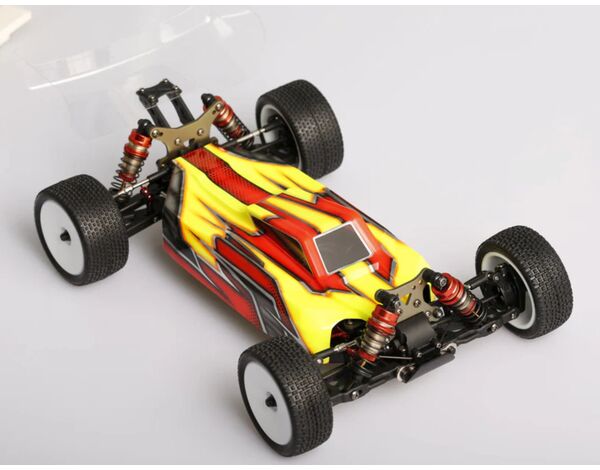

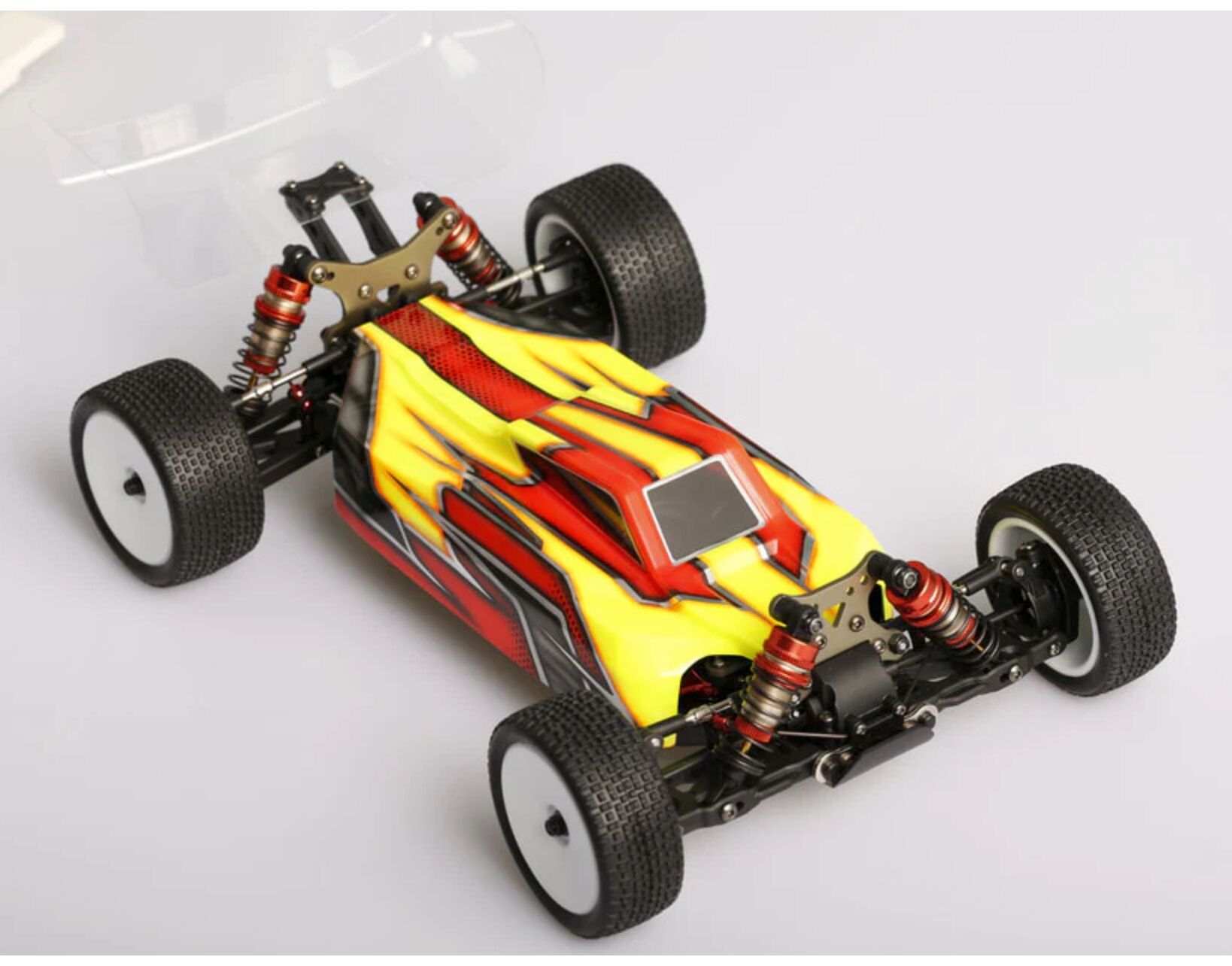

LC Racing LC12B1 1/12 4WD Competition Buggy Kit

LC1013 LC Racing LC12B1 1/12 4WD Competition Buggy Kit

Features:

New competition mid motor layout

Central slipper clutch, improved cornering speed, new designed aluminum central bulkhead.

One piece 2.0mm carbon fiber upper deck

Independent (floating) battery mount, allows battery to be mounted to the chassis without touching it.

2.0mm 6061 T6 Aluminum chassis.

Differential and Drivetrain

Front and rear bevel and drive gear oil filled differentials

Adjustable center slipper clutch with 60T spur gear.

2 pad slipper clutch

Front and rear CVD for maximum performance

Full set of 24 high speed sealed ball bearings

Suspension

High quality spring steel suspension mount front and rear.

Front and rear anti roll bars.

Aluminum shock with 3mm shock shaft.

Body (unpainted)

All new high downforce low profile lexan body.

All new lexan wing.

Specifications

Class: 1/12th scale 4WD competition buggy

Width: 205mm

Length: 352mm

Wheelbase: 233mm

Reduction ratio: 2.46

Differential pinion: 15T front and rear

Differential bevel: 37T front and rear

Weight:1.05kg(race ready)

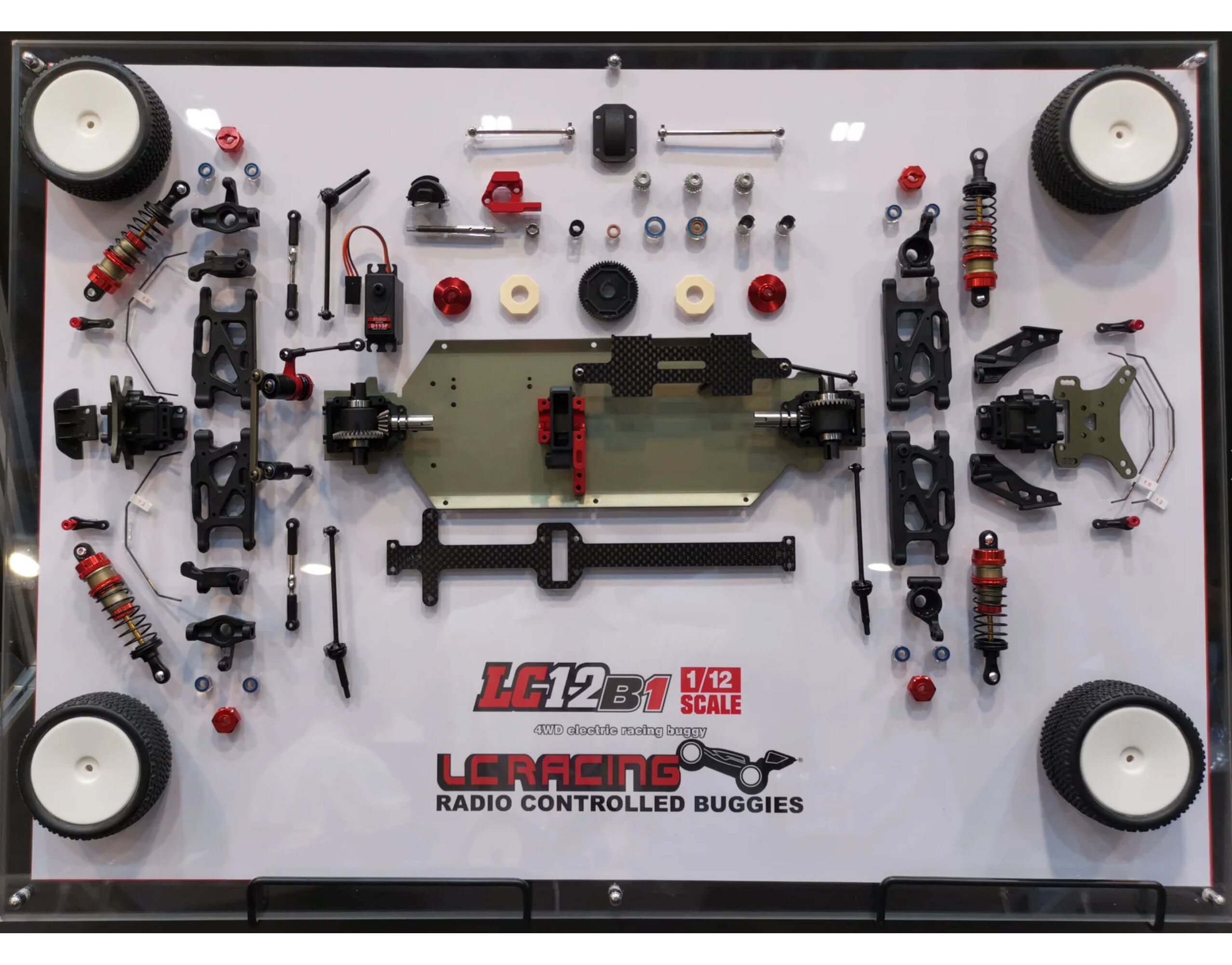

Kit Includes

1/12 LC12B1 4WD Competition Buggy (Assembly required)

Pre-mounted off road wheels and tires

Front and rear anti roll bars 1.0mm, 1.2mm and 1.5mm.

Batan D115F Digital servo

60T Spur Gear and 17,18.19T pinon gears

You will need:

Transmitter and Receiver

Battery (NiMH 6 cell 2/3c or 95x30mm Lipo) and Charger

380 size motor

ESC

Gear Differential Oil

Shock Oil

Assembly tools

Paint for lexan body
