Kyosho Lazer SB DirtCross 4WD 1:10 EP Buggy Kit

34321B Kyosho Lazer SB DirtCross 4WD 1:10 EP Kit

Baukasten Kit ohne Fernsteuerung und ohne Antriebskomponenten

In the long and distinguished history of 1/10 EP (electric) R/C racing buggies, there are two types based on different drive systems. Rear 2WD models are typically easier to assemble and maintain and exhibit nimble driving characteristics; and then there are the equally popular 4WD models, which use drive force to all four wheels for superior traction on low-grip roads compared to 2WD. For drivers considering a step up from entry-level models, we are proud to introduce the Lazer SB Dirt Cross 4WD, which is a cost-optimized version of the competition-level ZX-5 that has continued to evolve performance and control as the cutting-edge of Kyosho’s worldwide 4WD EP buggy racing campaigns. While the suspension and driven system are retained from the proven Lazer ZX-5, the Dirt Cross does much more than reduce costs; it is designed to appeal to a new generation of R/C racers. While retaining its basic shape, the main chassis has been updated and optimized for the latest battery and motor systems. However, the body has been completely redesigned with a rear positioned cabin (instead of the usual forward-cabin of racing models), driver figure, and newly developed spoke wheels for a classic retro buggy style. As the Dirt Cross is based on a purebred race model, performance is guaranteed. Combining the most comprehensive fit out at a great value price, all the fun and performance off-road R/C has to deliver is perfectly optimized into this mid-range 4WD buggy.

Optimal price : performance ratio is realized in this standard EP 4WD buggy based on a high performance racing buggy.
Equipped with proven and reliable shaft-driven 4WD system.

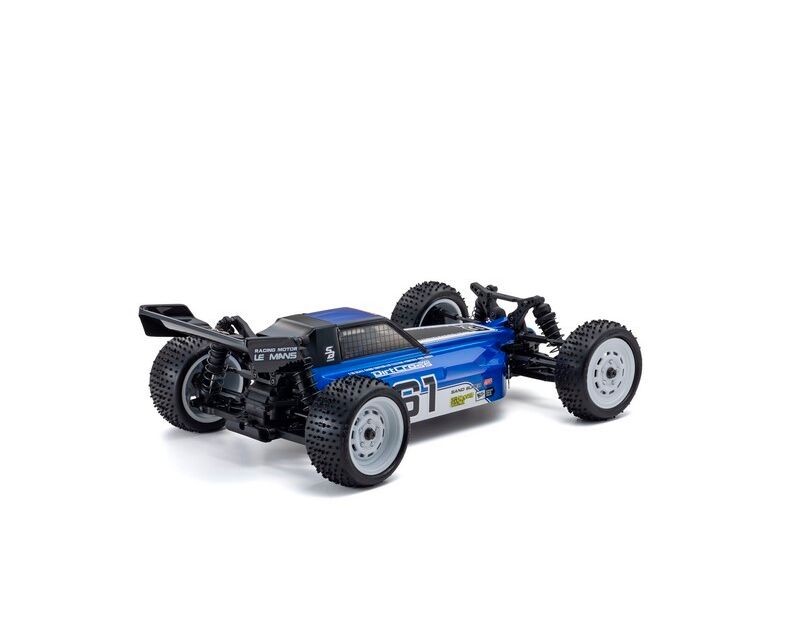

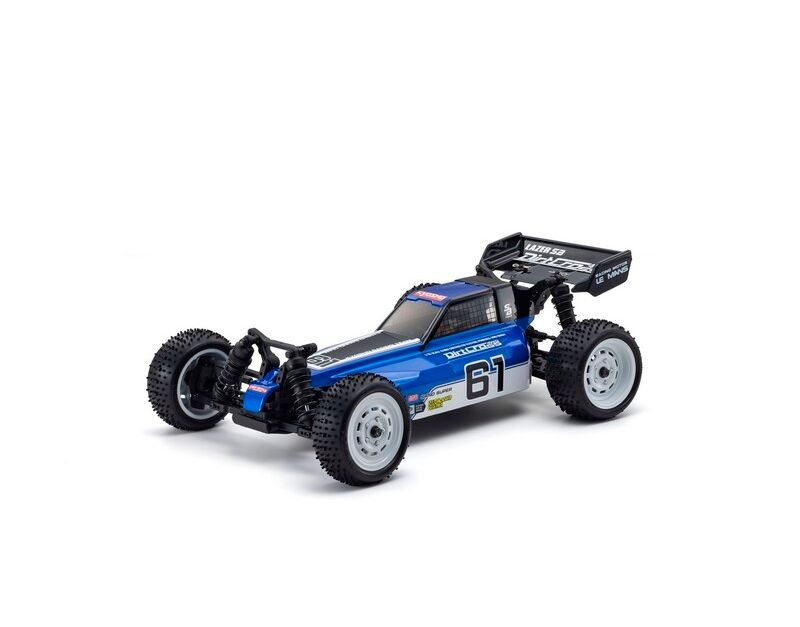

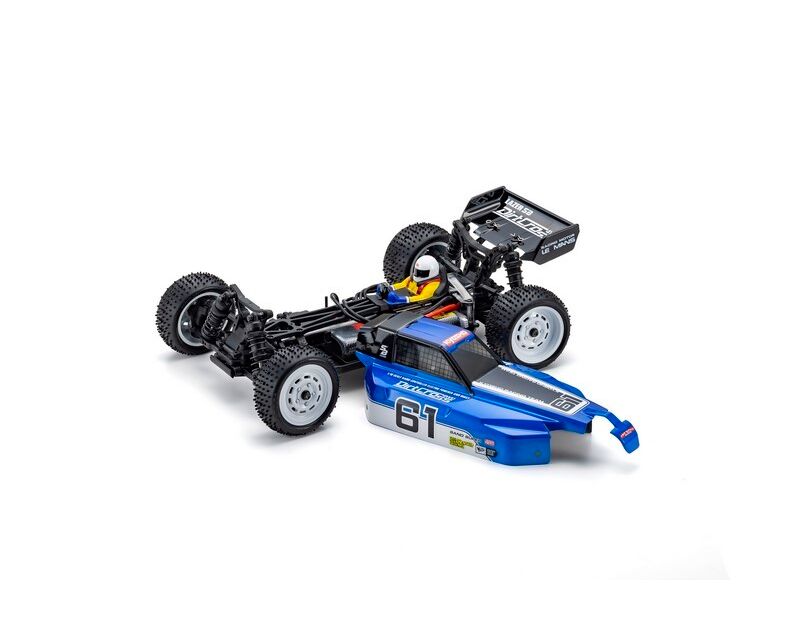

New body is designed with a classic rear cabin style. Also includes rear wing and driver figure.
Front and rear gearboxes are equipped with gear differential, ensuring reliable operational stability over long periods. Can also be replaced with an optional ball differential.

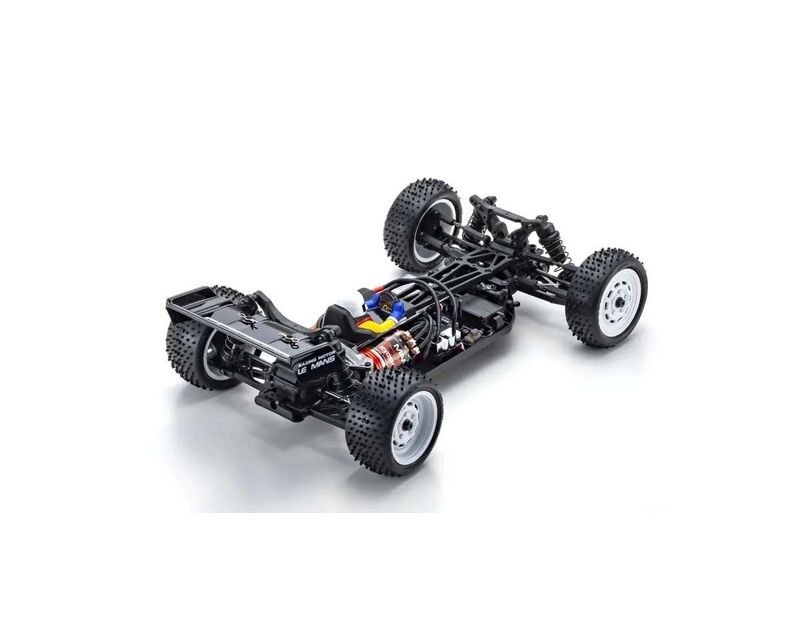

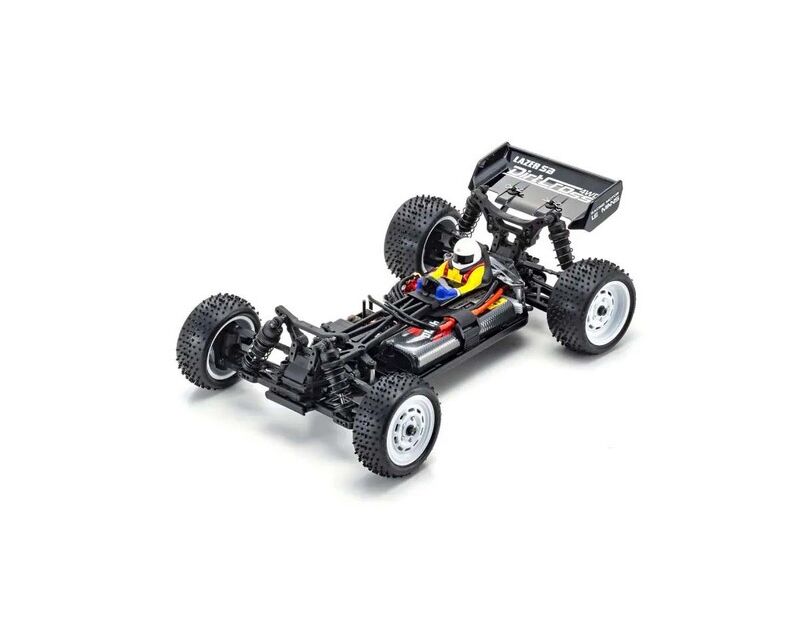

Features high rigidity and lightweight resin main chassis. In addition to various shaped standard batteries, short-type LiPo batteries can also be installed.
Race-proven double wishbone front and rear suspension provides exceptional running stability. Oil shocks are height adjustable.
H-pin tires provide stable grip on a wide range of road surfaces.
Spoke wheels recreate that real racing buggy style with a retro look to match the body.
Full bearing specifications are standard and greatly increase drive system efficiency.
Compatible with various optional parts and shock springs from the Lazer series.

Length 395mm
Width 245mm
Height125mm
Wheelbase 268.5mm
Tread（Ｆ／Ｒ） 209mm／201mm
Tire F:φ88×33mm R:φ88×40mm
Gear Ratio 8.13：1
Weight 約1,450g
Motor (sold separately)

＜ Kit Contents＞
Unassembled kit set
Body
Wing
Tire
Wheels
Pinion Gear(24T)
Ring Gear Grease
Hex wrench（1.5mm/2.0mm/2.5mm）
Cross wrench

Requirement to Run
2ch-3ch R/C car transmitter
Servos
ESC
Motor
Silicon oil for Shock
Batteries for receiver
Charger for battery
Paint for body
Tool
