JX Servo PDI-5508MG 8.2kg/0.09sec.Digital 6V 25T
- Order by 4 PM, delivered tomorrow! (stock items)
- 30 years of RC model building experience
- Top service by professional model builders
- Over 500 manufacturers - 200,000 products
Please sign in so that we can notify you about a reply

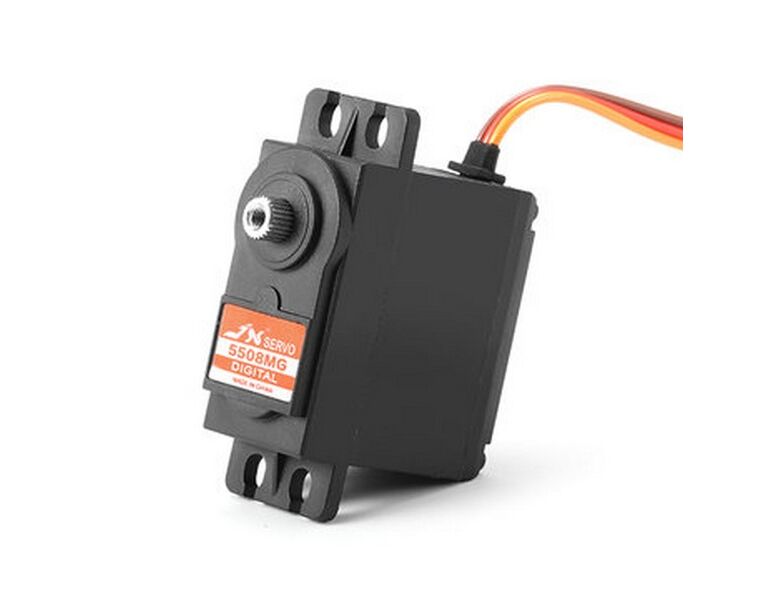

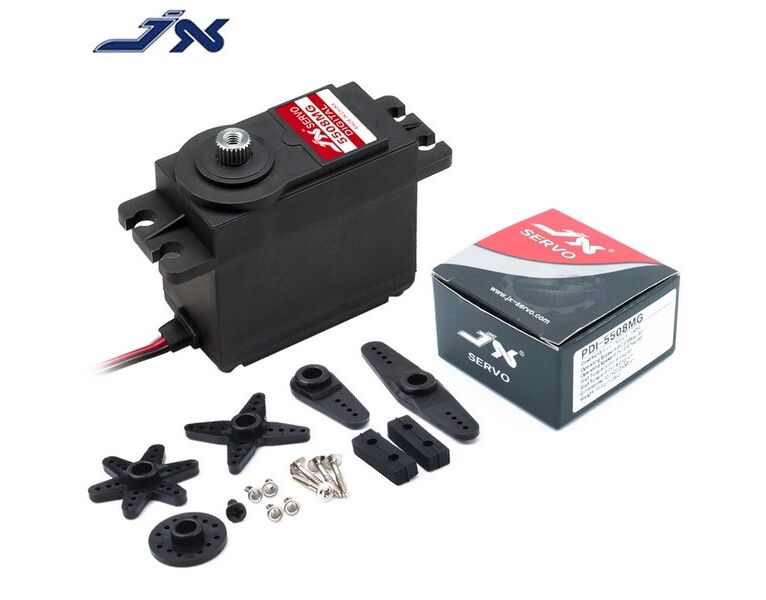

PDI-5508MG 8KG High Precision Metal Gear Digital Standard Servo
FEATURE:
-- High performance digital standard servo
-- High-precision Taiwan-made metal gears
-- High quality brushed motor
-- Dual ball bearings
SPECIFICATIONS:
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.09 sec/60 degrees
Operating Speed (6.0V): 0.07 sec/60 degrees
Stall Torque (4.8V): 6.8 kg.cm
Stall Torque (6.0V): 8.2 kg.cm
Dimensions: 40.5X20.2X38mm
Weight: 55.6 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
FEATURE:
-- High performance digital standard servo
-- High-precision Taiwan-made metal gears
-- High quality brushed motor
-- Dual ball bearings
SPECIFICATIONS:
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.09 sec/60 degrees
Operating Speed (6.0V): 0.07 sec/60 degrees
Stall Torque (4.8V): 6.8 kg.cm
Stall Torque (6.0V): 8.2 kg.cm
Dimensions: 40.5X20.2X38mm
Weight: 55.6 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
Akku
Application:
- Hobby Einsteiger
Width mm approx.:
- 41
Height mm approx.:
- 20
Weight g approx.:
- 55
Ladegeräte
Max. Input voltage:
- 6.0 Volt
Housing material:
Kunstoff
Motoren Elektro
Motor type:
Brushed
Reifen
Modulation:
Digital
Fernsteuerung
Scope of application:
- Fahrzeuge
- Boote / Schiffe
Servos
Housing size:
- Standard Servo
Positioning force kg:
- 8.0
Transmission:
Metall
Servohörner
Length mm approx.:
- 38
Balancer Verlängerungen
Fits for model:
- Tamiya Avante
- Tamiya Blackfoot
- Tamiya CC-01 / CC01
- Tamiya CC-02 / CC02
- Tamiya Clod Buster
- Tamiya CW-01 / CW01
- Tamiya DB01 / DB-01
- Tamiya DB02 / DB-02
- Tamiya DF-03 / DF03
- Tamiya DT-02 / DT02
- Tamiya DT-03 / DT03
- Tamiya Egress
- Tamiya FF-02 / FF02
- Tamiya FF-03 / FF03
- Tamiya FF-04 / FF04
- Tamiya Fire Dragon
- Tamiya G6-01 / G601
- Tamiya GF-01 / GF01
- Tamiya Grasshopper
- Tamiya Hornet
- Tamiya Lunch Box
- Tamiya M-05 / M05
- Tamiya M-06 / M06
- Tamiya M-07 / M07
- Tamiya Monster Beetle
- Tamiya Subaru Brat
- Tamiya Super Storm Dragon
- Tamiya SW-01 / SW01
- Tamiya TA-05 / TA05
- Tamiya TA-07 / TA07
- Tamiya TA02 / TA-02
- Tamiya TA03 / TA-03
- Tamiya TA04 / TA-04
- Tamiya TB-01 / TB01
- Tamiya TB-02 / TB02
- Tamiya TB-03 / TB03
- Tamiya TB-04 / TB04
- Tamiya TB-05 / TB05
- Tamiya TB-06 / TB06
- Tamiya TB-07 / TB07
- Tamiya TC-01 Formula E TC01
- Tamiya Terra Scorcher
- Tamiya TL-01 / TL01
- Tamiya TT-01 / TT-02 / TT01 TT02
- Tamiya TT-02B / TT02B
- Tamiya WR-01 / WR01
- Tamiya WR-02 / WR02
- Tamiya WR-02B / WR02B
- Tamiya WR-02CB / WR02CB
- Tamiya WR-02G / WR02G
- Tamiya WT-01 / WT01
- Tamiya XV-01 / XV01
Akkustecker
Plug:
- JR Uniplug
Werkzeug
Waterproof:
Nein
Servo horn recording:
25 Zähne (Futaba - Savöx - Traxxas usw.) 25T
