HRC 68104 Servo - Analog - 40.5x38x20.3mm / 45.5g - 4.0kg/cm - High Speed
- Order by 4 PM, delivered tomorrow! (stock items)
- 30 years of RC model building experience
- Top service by professional model builders
- Over 500 manufacturers - 200,000 products
Please sign in so that we can notify you about a reply

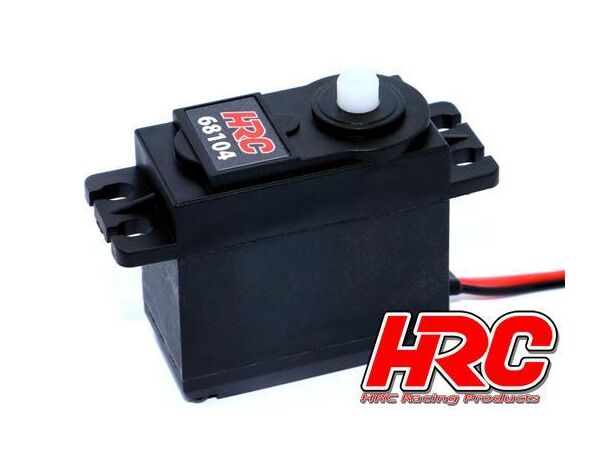

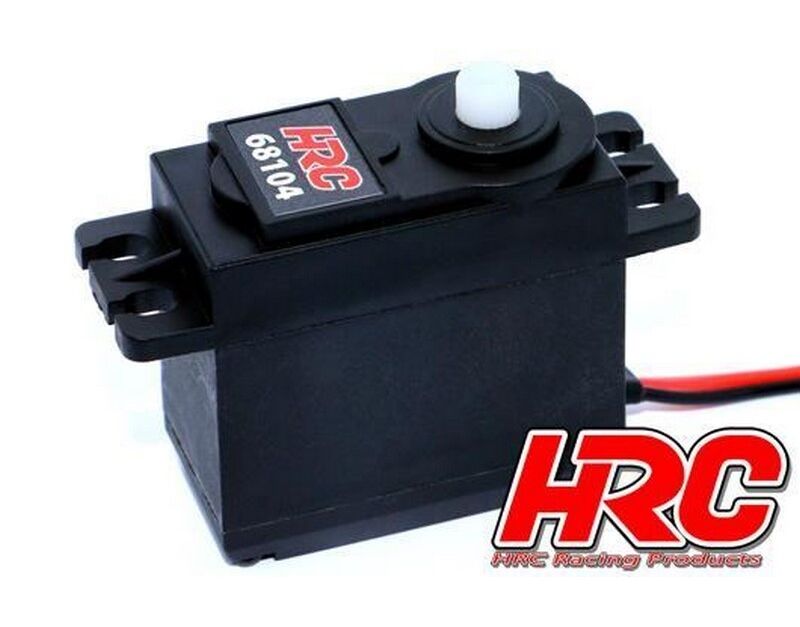

HRC Servo - Analog - 40.5x38x20.3mm / 45.5g - 4.0kg/cm - High Speed
Analog Standard High Speed Servo
Unser neues High Quality 68104 Servo wurde speziell für Standard Einstiegsmodelle und andere Anwendungen entwickelt, die Präzision für einen intelligenten und erschwinglichen Preis erfordern.
Technische Daten:
Voltage: 4.8 ~ 6.0 Volts
Signal type: Analog
Gear: Plastic Gear
Torque: 3.3kg/cm @ 4.8V // 4.0kg/cm @ 6.0V
Speed: 0.15s/60° @ 4.8V // 0.12s/60° @ 6.0V
Dimensions: 40.5 x 38 x 20.3mm
Weight: 45.5g
Case: Nylon Fiber
Servo Arm: 25 splines
Cable: 300mm 26AWG
Connector: UNI Plug
Positioning time sec.:
- 0.12
Manufacturer:
HRC Racing Products
Akku
Application:
- Hobby Einsteiger
Width mm approx.:
- 41
Height mm approx.:
- 21
Weight g approx.:
- 45
Ladegeräte
Max. Input voltage:
- 6.0 Volt
Housing material:
Kunstoff
Motoren Elektro
Motor type:
Brushed
Reifen
Modulation:
Analog
Fernsteuerung
Scope of application:
- Fahrzeuge
- Boote / Schiffe
Servos
Housing size:
- Standard Servo
Positioning force kg:
- 4.0
Transmission:
Kunstoff
Servohörner
Length mm approx.:
- 38
Akkustecker
Plug:
- JR Uniplug
Werkzeug
Waterproof:
Nein
Servo horn recording:
25 Zähne (Futaba - Savöx - Traxxas usw.) 25T
