GPM ALU FRONT+REAR SHOCKS LOW CENTER OF GRAVITY

GPM Racing - TRAXXAS - SLASH 4x4 - RUS47580FR RUSTLER VXL Aluminum Front+Rear Shocks (Low Center Of Gravity Version)

Alu Tuning für Traxxas Modelle für bessere Performance, Stabilität und Optik in hochwertigem 6061T6 Aluminium.

This item is suitable for TRAXXAS Rustler 4X4 VXL, TRAXXAS Slash 4X4, TRAXXAS SLASH 4X4 LOW CG and TRAXXAS Slash PRO Short Course

Original Name / Part No.: 6864+6867

Part location: Front & rear shocks position

Is this part adjustable? YES

How: Adjust the screw on top of spring or change to another spring.

Purpose: Adjust the hardness of the shocks.

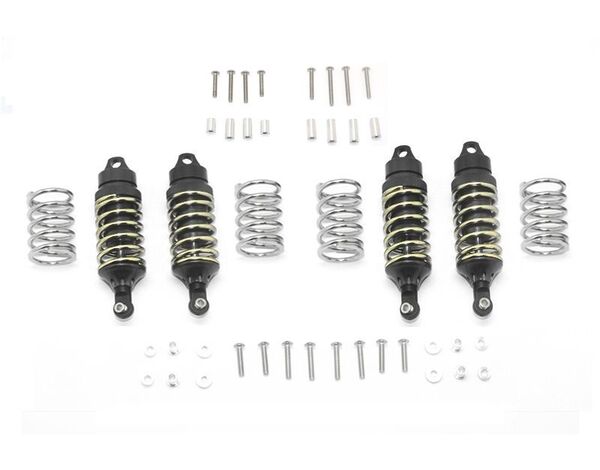

This product includes :

Front Shock 2pcs

Rear Shock 2pcs

Short Spring 2pcs

Long Spring 2pcs

Stainless Steel Round Head Screw 3x14 4pcs

Stainless Steel Round Head Screw 3x16 6pcs

3x6x2.5 Aluminum Collar 4pcs

3m Collar 4pcs

3m Washer 4pcs

3x6x8 Aluminum Collar 2pcs

3x6x12 Aluminum Collar 4pcs

3x6x16 Aluminum Collar 2pcs

Stainless Steel Round Head Screw 3x20 4pcs

Stainless Steel Round Head Screw 3x25 2pcs

Major advantages of upgrading to this part/product :

1. The product is made thicker than original with different spring coil: Gold (on product) 2.6mm. Silver (separate ones) 2.2mm for more powerful and stable use.

2. Shocks are made shorter than original: Front 75mm. Rear 80mm…this helps lower the vehicle (can go as low as 6mm from ground).

3. Upgrade to this products to suit a more high-speed drive on flat surface roads.

Note: When use on Slash: As the body is lowered, the shell will hit the tire, please use the aluminum collars between the body post and the shock mount to support the shell. Use different size collar for different adjustment of the shock angle. When the body is at the highest, use front 8mm with rear 12mm collars. When the body is at the lowest, use front is 12mm with rear 16mm collars.

Suitable for TRAXXAS RUSTLER 4X4 VXL 67076-4, SLASH 1/10 4X4, SLASH 1/10 4X4 LCG, SLASH 2WD

GPM ALU Stossdämpfer Vorne und Hinten Schwarz (4) für Fahrzeug Tieferlegung Traxxas Rustler 4x4, Slash 4x4, Slash 2WD
