GPM Alu Motorbefestigung blau X-MAXX

GPM Aluminium Motorbefestigung blau MAXX

Alu Tuning für Traxxas Maxx und Maxx Slash für bessere Performance, Stabilität und Optik in hochwertigem 6061T6 Aluminium. Ersetzt 1:1 und passgenau das Originalteil.

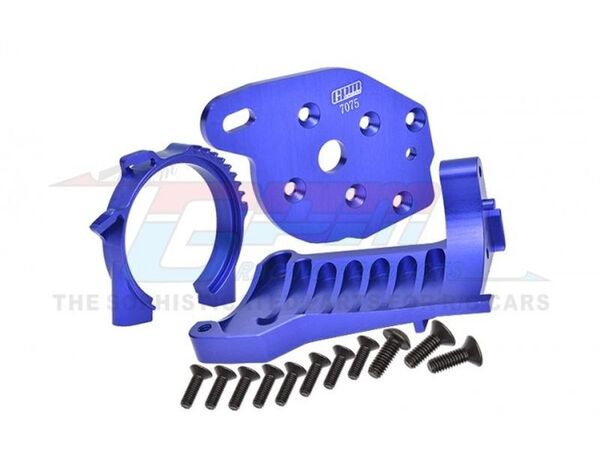

Packaging Includes:

Bottom Mount-1pc

Stabilize Plate-1p

Stabilize Ring-1p

Grade 12.9 Black Round Head Screw 4x12-2pcs

Grade 12.9 Black Round Head Screw 4x8-1pc

Grade 12.9 Black Flat Head Screw 3x8-8pcs

Original Name / Part No:

8960

Part Location:

Motor Area

Does this product replace a specific part or function?

Yes

Product major function & usage:

Support, stabilize and adjust the position of motor.

Is this part adjustable? If yes … how and why/purpose?

How: Insert the stabilizing pin on different positioning holes on the bottom mount.

Purpose: Adjust the position of motor in order to adjust the space between motor gear and main gear.

Major advantages of upgrading to this product:

1. Made with a quality light weight high tensile strength aluminum 6061 T6 for greater durability.

2. Aluminum 6061 T6 material lets the motor cool down faster.

Note: When installing the motor stabilizing mount: Remove the four screws at the bottom of the motor, put on the stabilizing ring, then replace the screws at the bottom of the motor.

Suitable Model:

TRAXXAS-1/10 4WD MAXX MONSTER TRUCK -89076-4

TRAXXAS-1/10 4WD MAXX W/WIDE MAXX MONSTER TRUCK-89086-4
