FTX OUTBACK HI-ROCK 4X4 RTR 1:10 TRAIL CRAWLER

FTX OUTBACK HI-ROCK 4X4 RTR 1:10 TRAIL CRAWLER Grau Waterproof ESC Brushed Motor Combo T-Plug

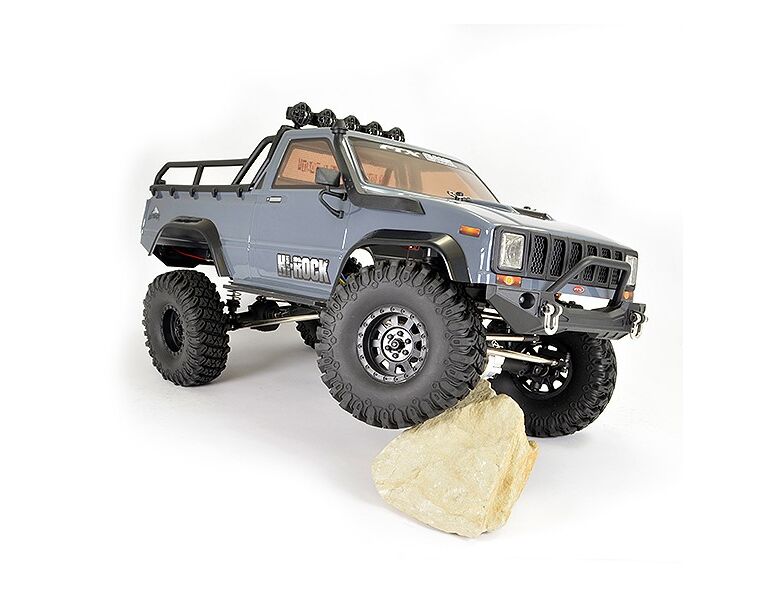

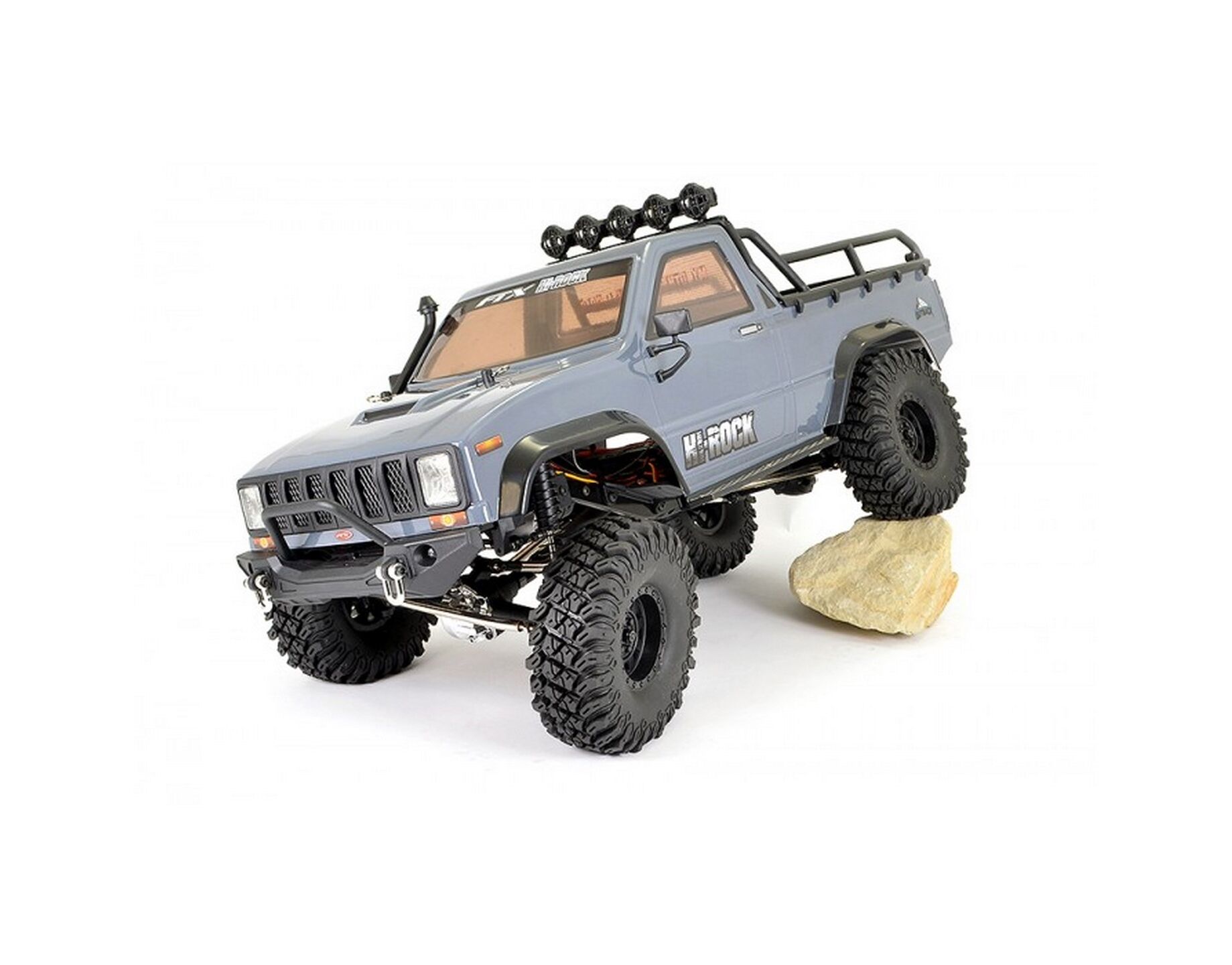

The evolution of the Outback trail chassis hits new heights with the new Hi-Rock edition from FTX. As trail and crawler fans continue to crave both scale performance and scale looks, we have looked to address both with the Hi-Rock.

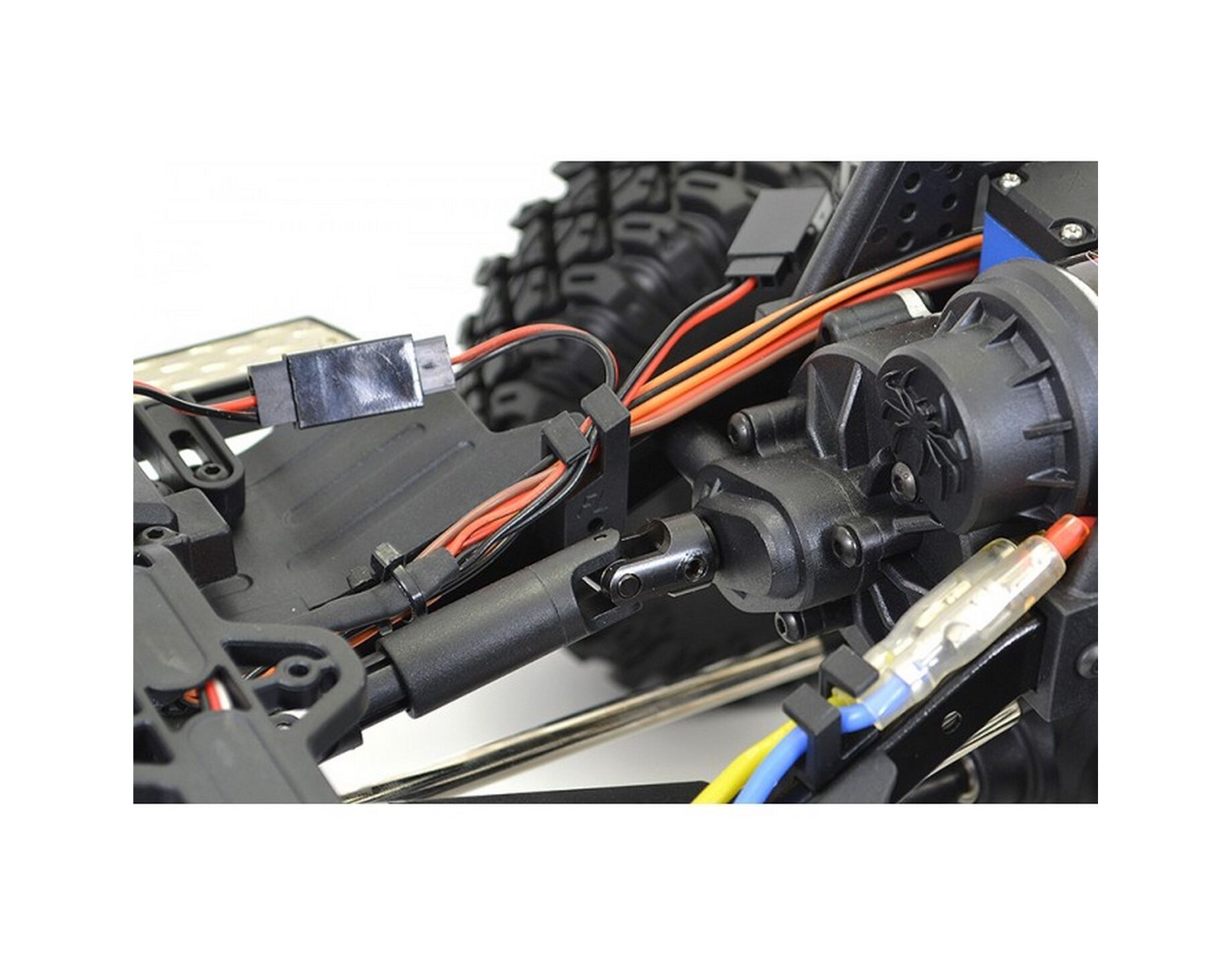

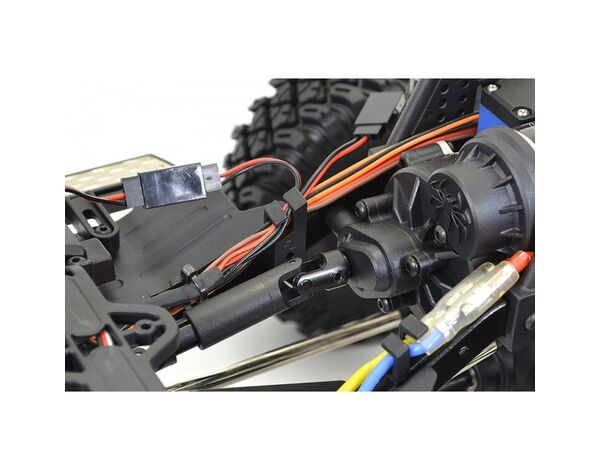

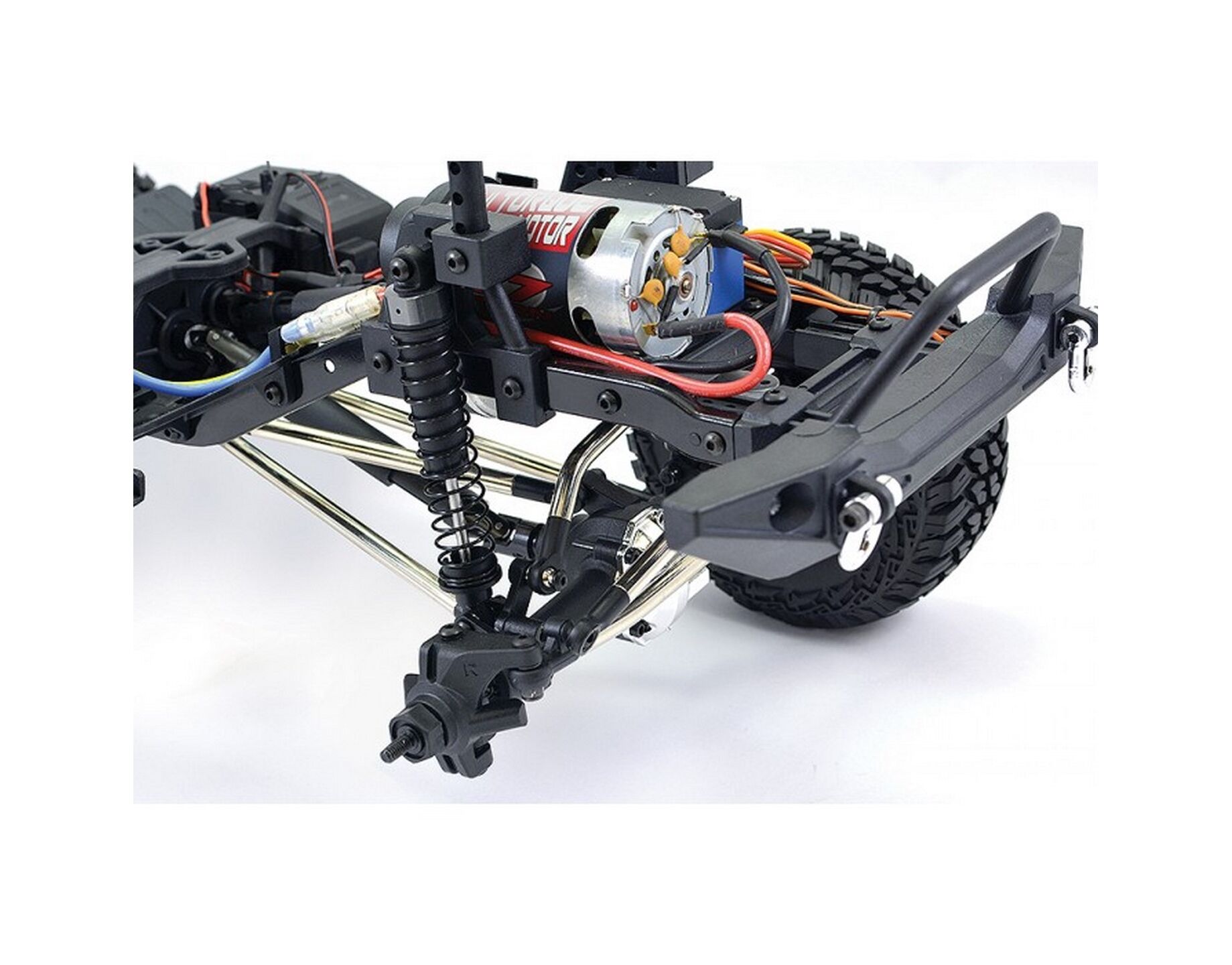

Featuring a new split transmission, the motor is now mounted directly above the front axle alongside the steering servo providing extra weight up front for better traction when climbing ascents. The steering angle has been increased to a 45° angle for further improved trail maneuverability. An adjustable drivetrain slipper can be set to protect the transmission and driveshafts in the event of a lock up, while internal axle and gearbox metal gears provide long term durability.

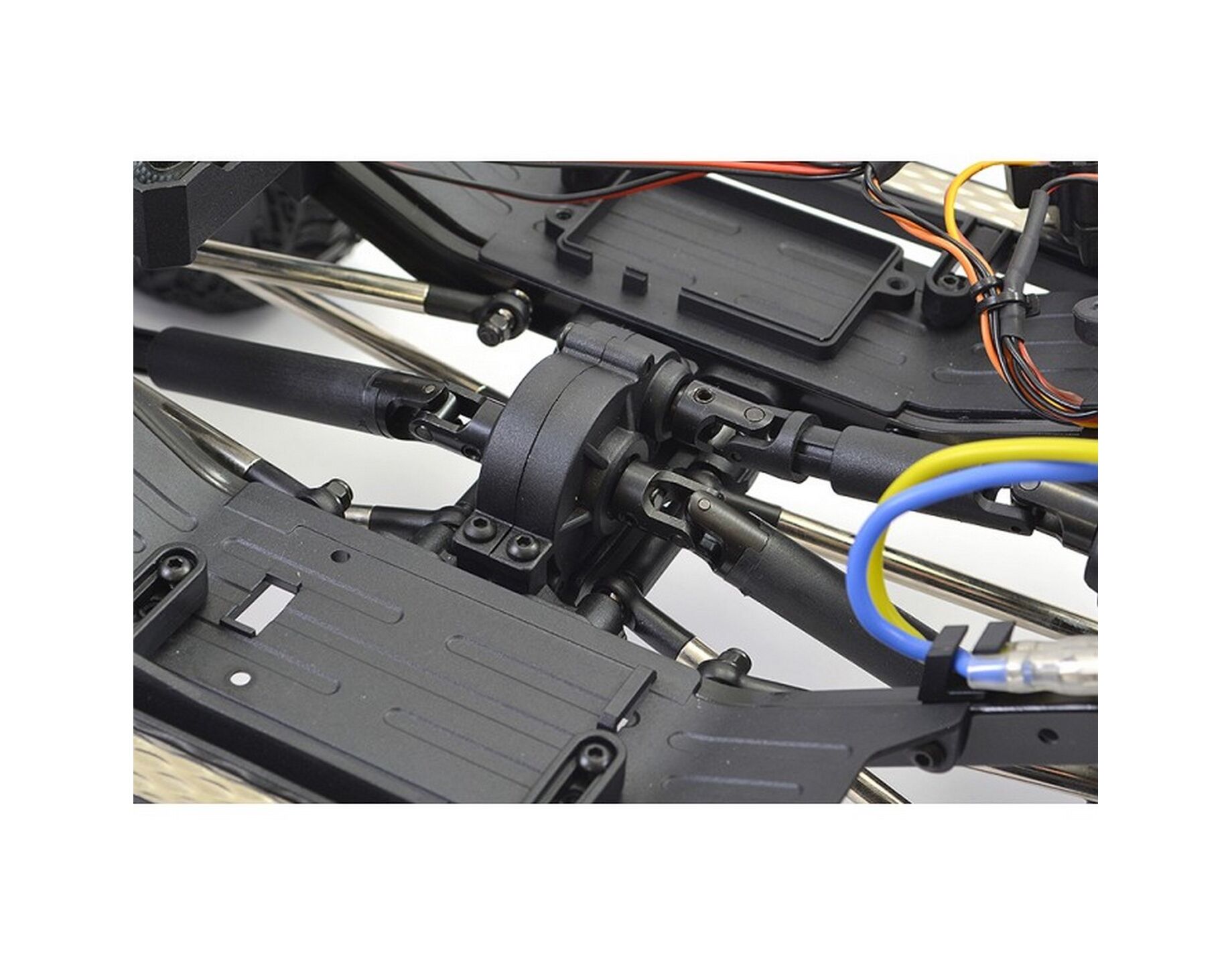

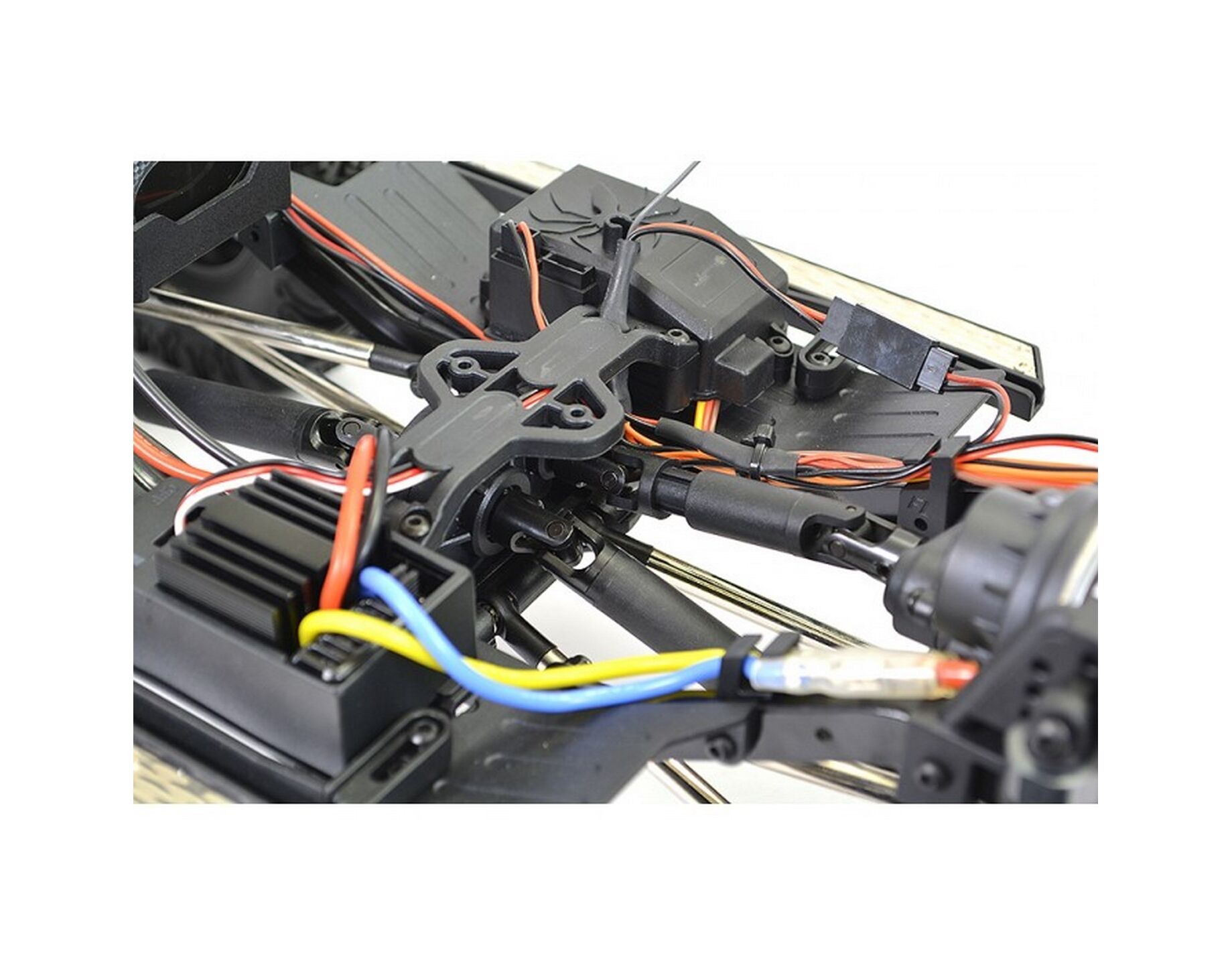

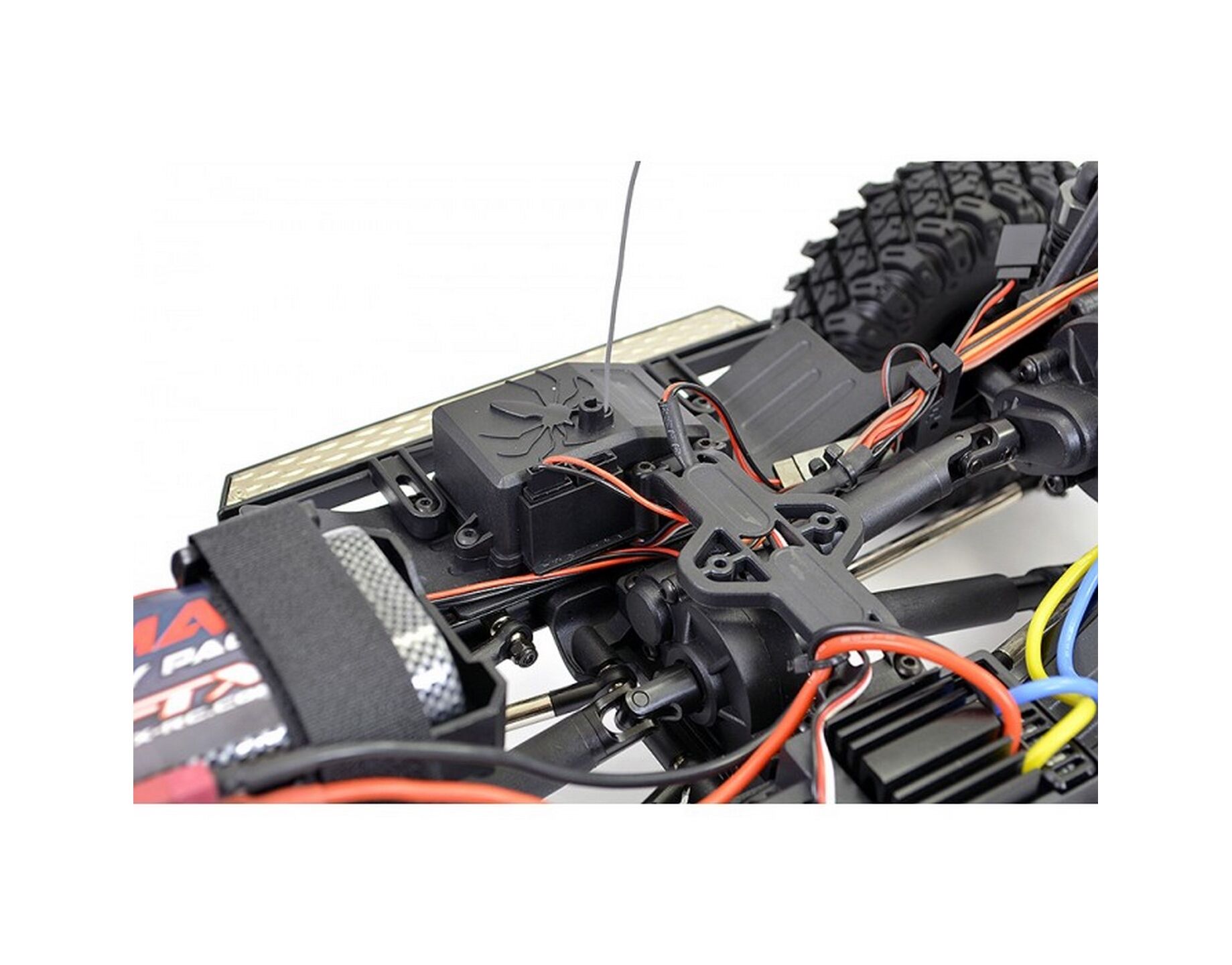

The split transmission layout provides a much lower centre section allowing for aftermarket interiors to be mounted for added scale realism. The moulded side chassis plates have aluminium plates on the exterior while the inner plates provide protection from the elements as well as mounting receiver and Hobbywing speed control. The moulded receiver box features additional plug in ports for LED lights and aftermarket winches.

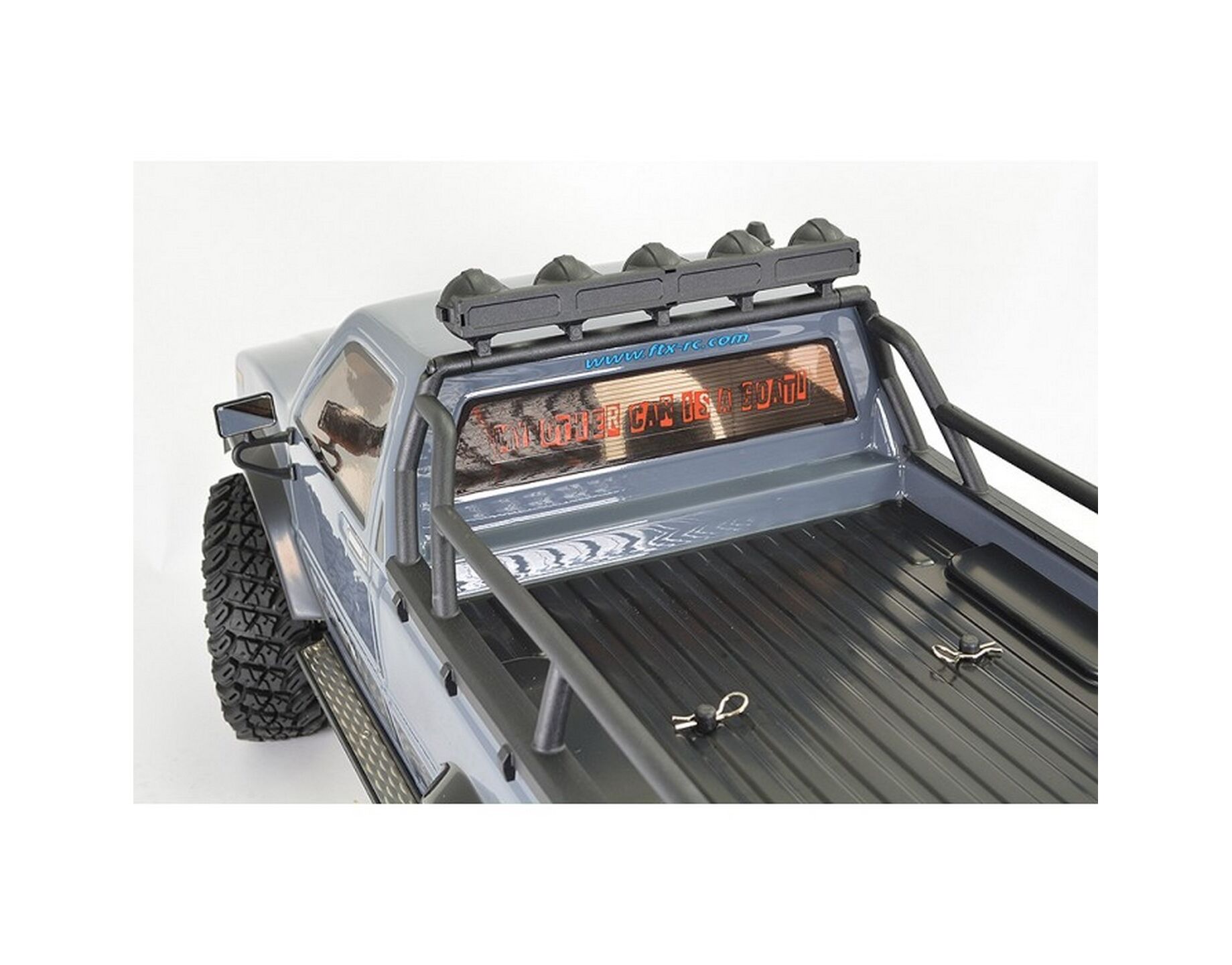

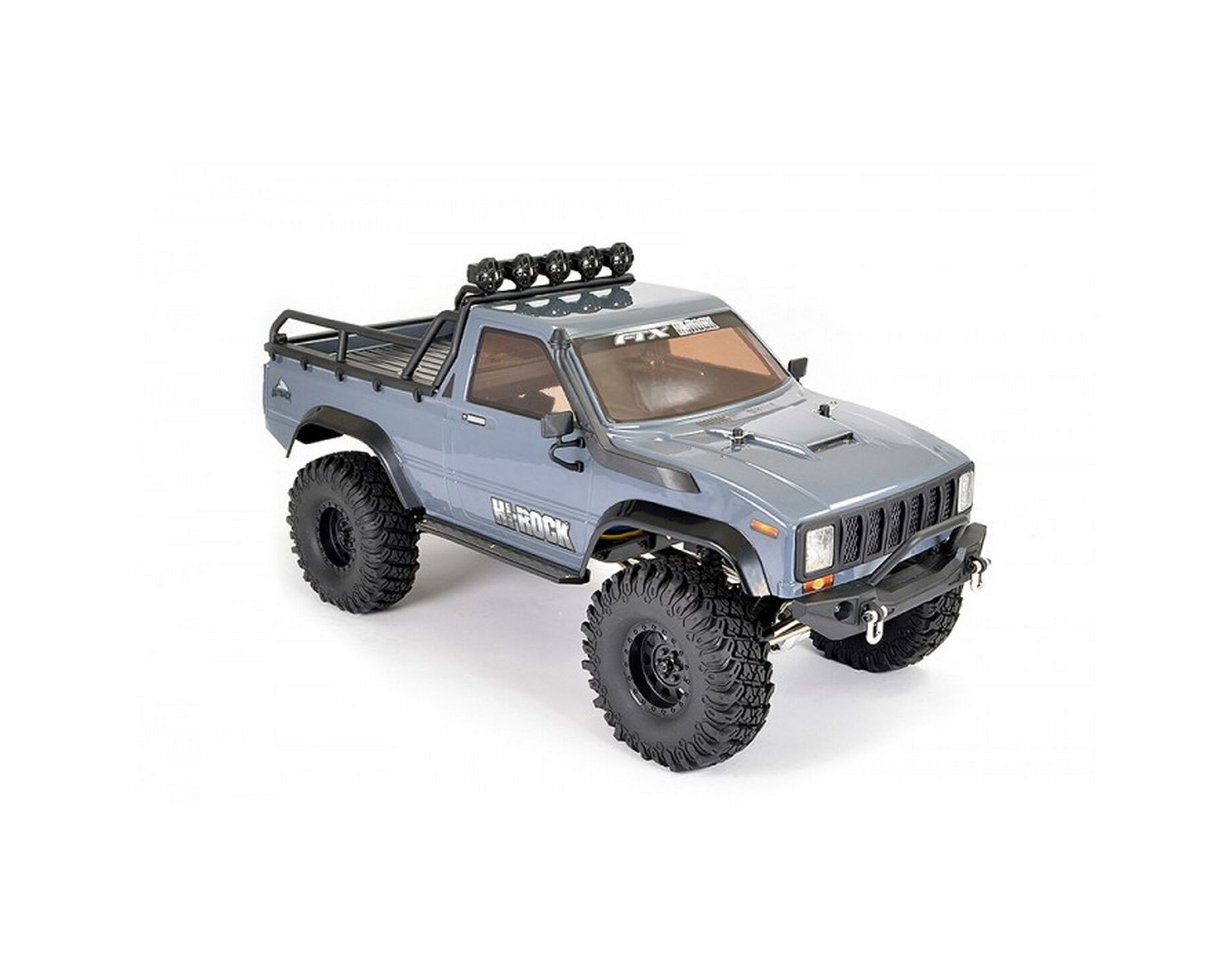

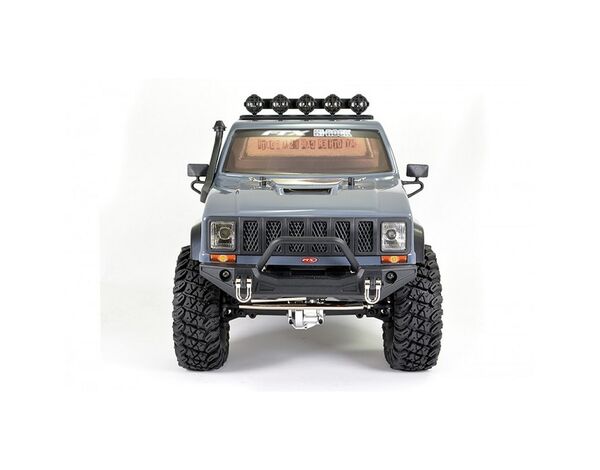

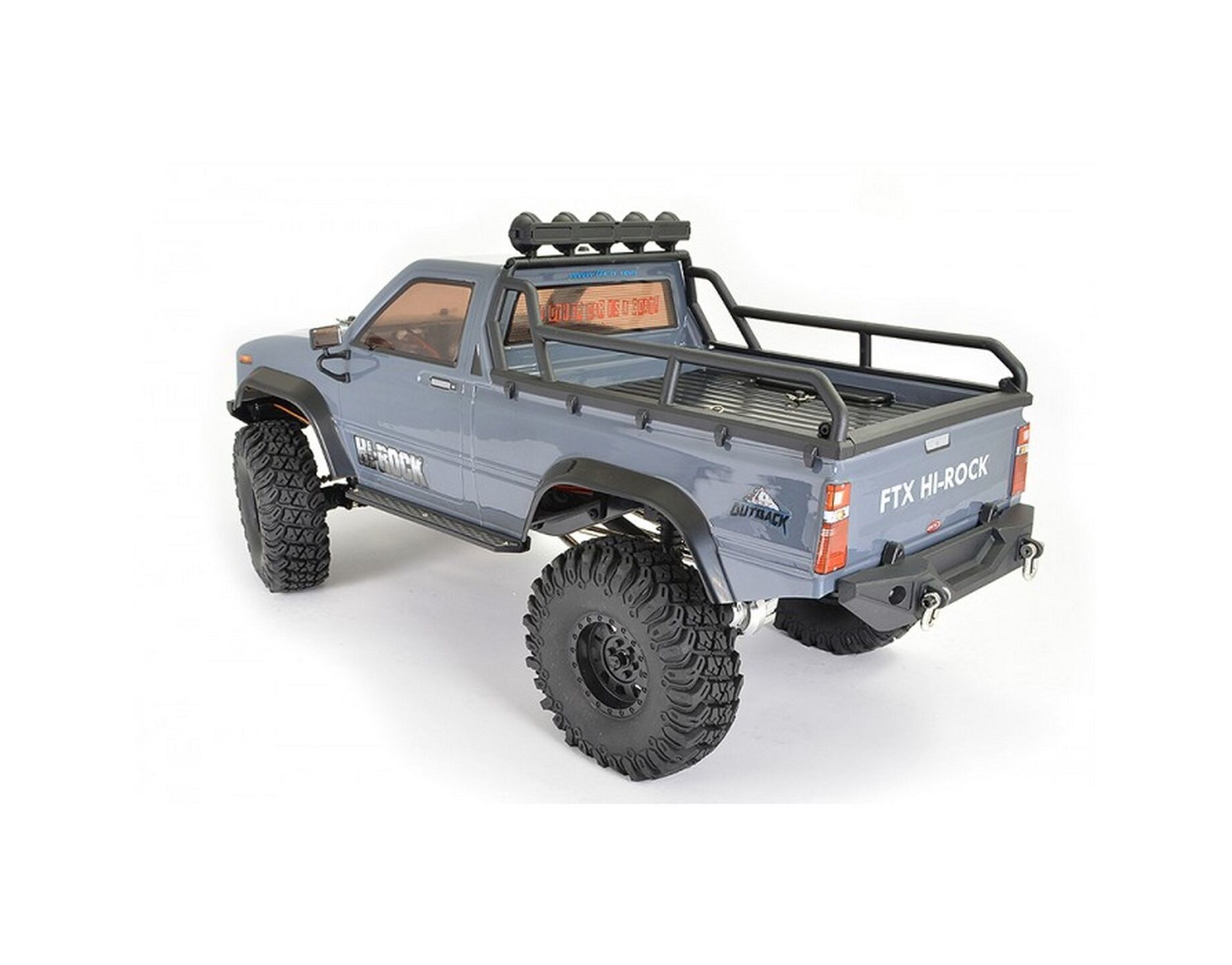

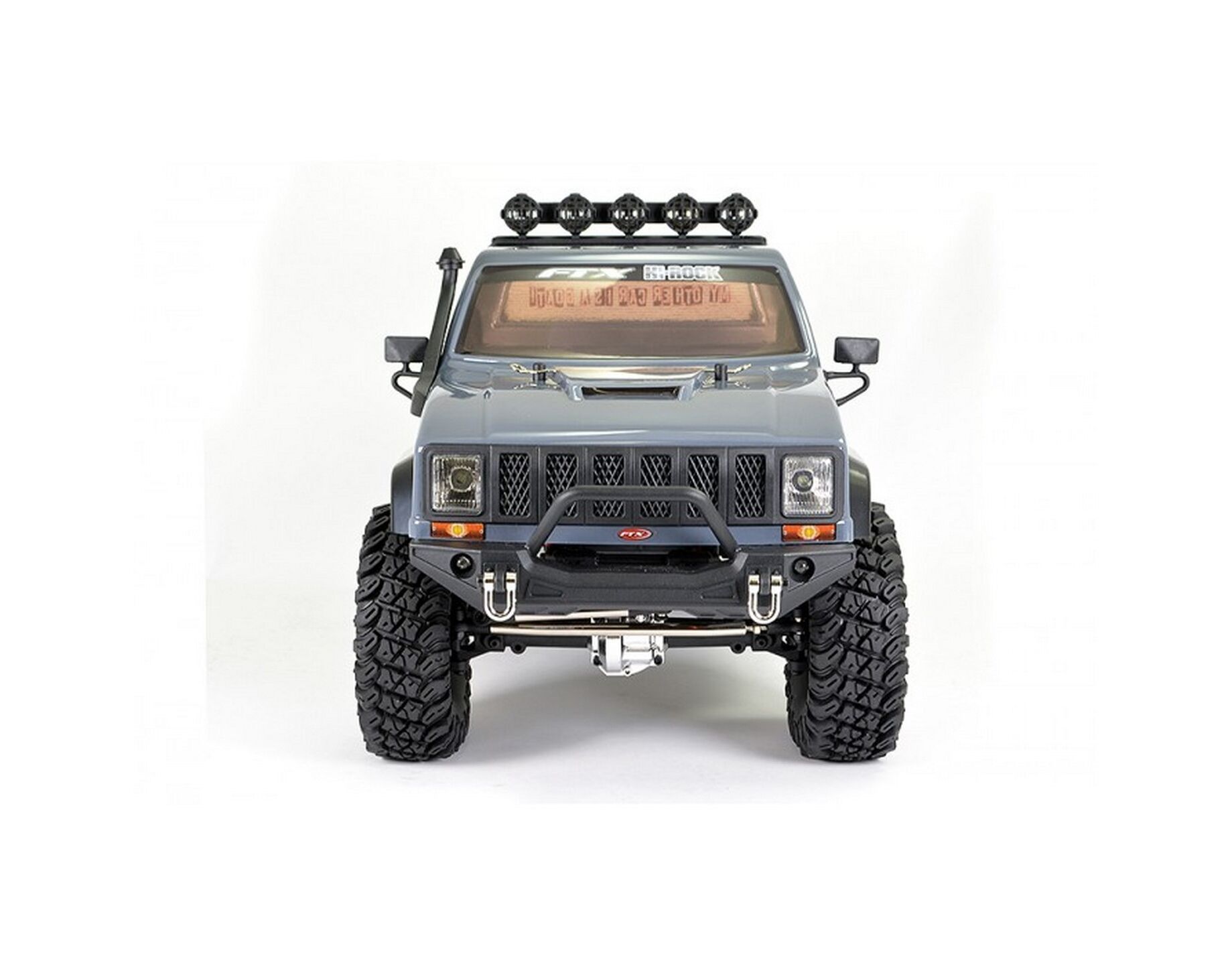

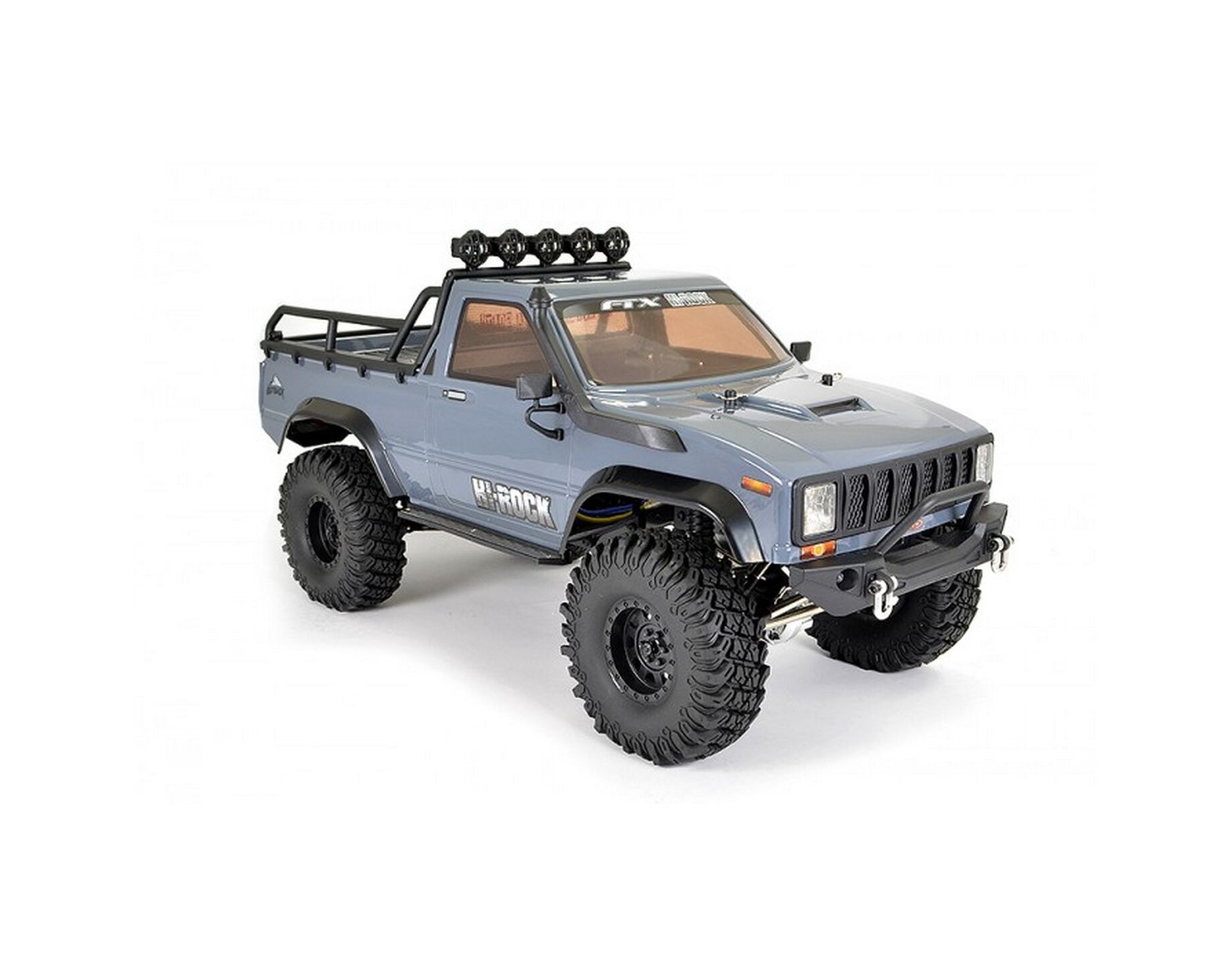

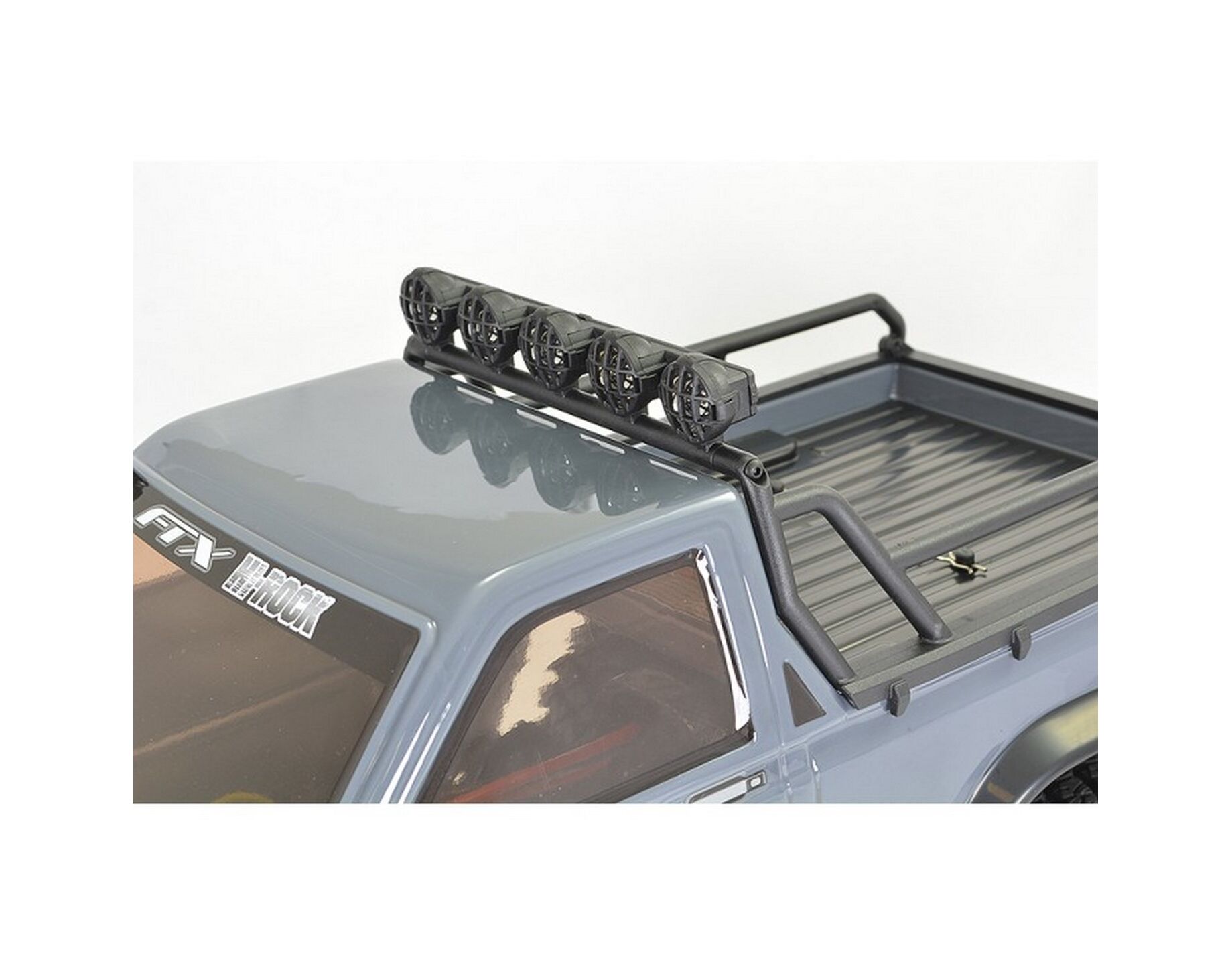

The classic pick-up inspired bodyshell comes complete with moulded accessories such as front grill & LED light buckets, snorkel, mirrors, wipers, roll bar cage and spotlights (for optional LED’s). Front and rear bumpers feature mounted LED lights and tow hooks to top off that scale look.

Take to the trails and raise the bar with the FTX Outback Hi-Rock!

Features

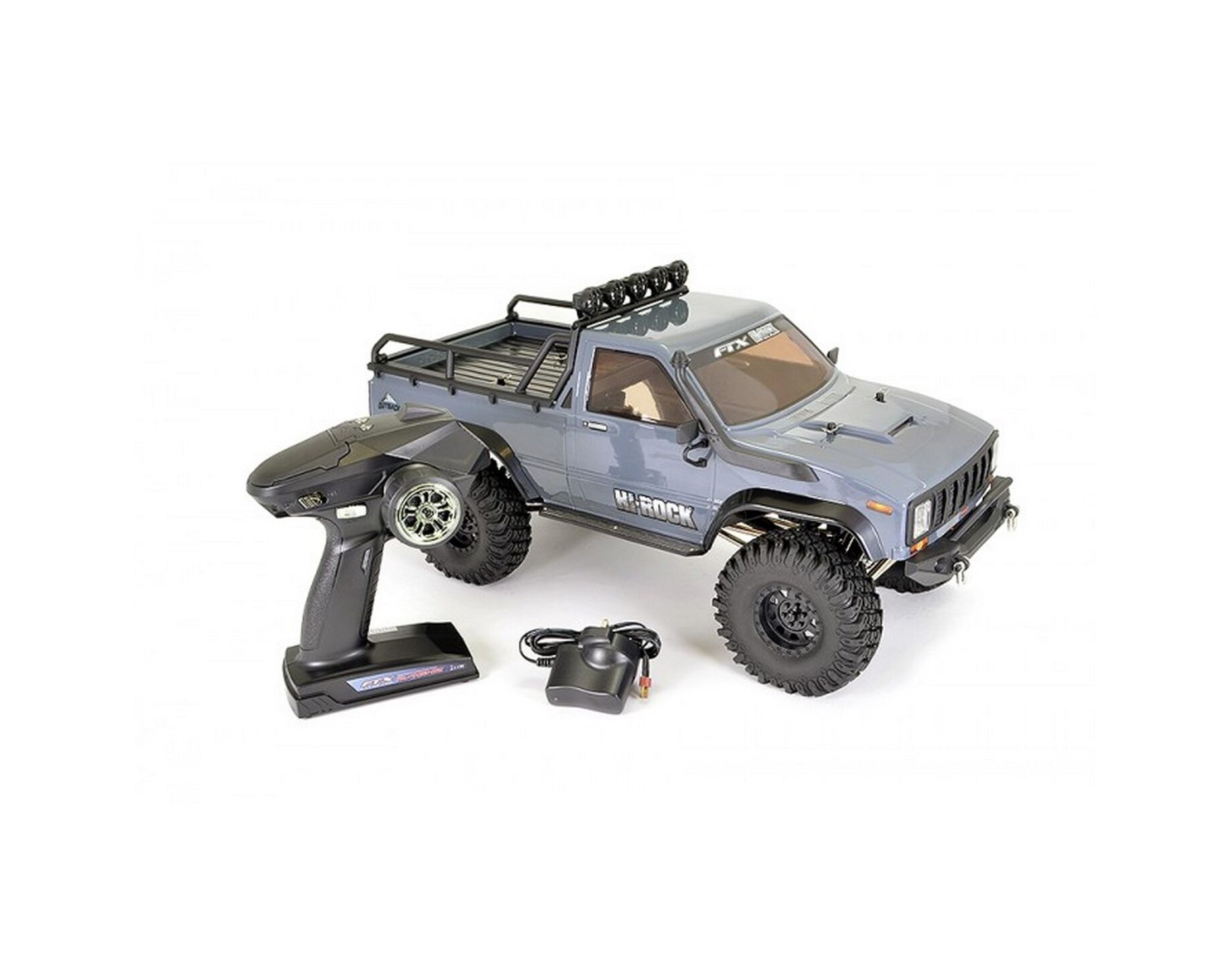

99% Ready-to-Run

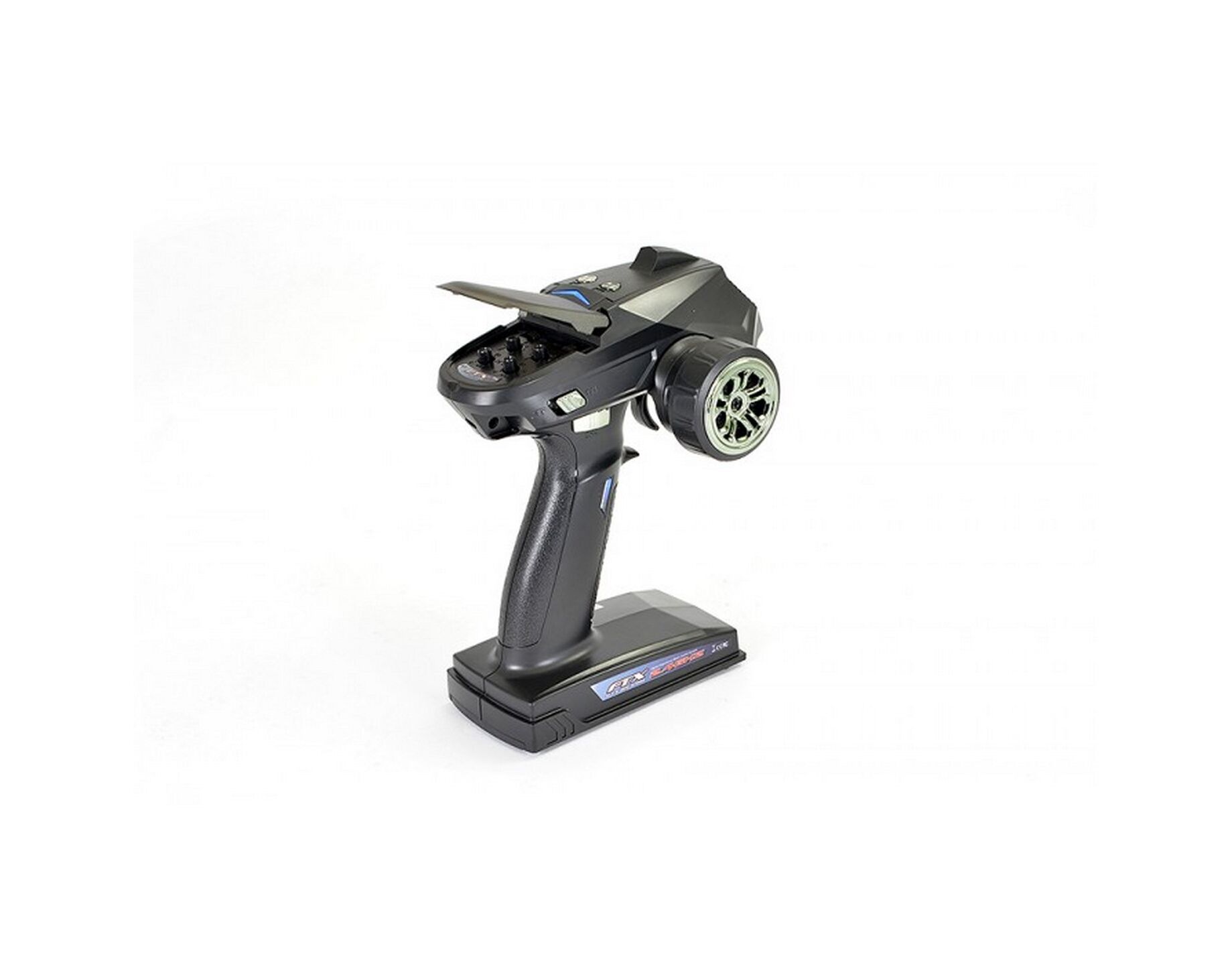

4ch 2.4ghz radio for lights & winch options

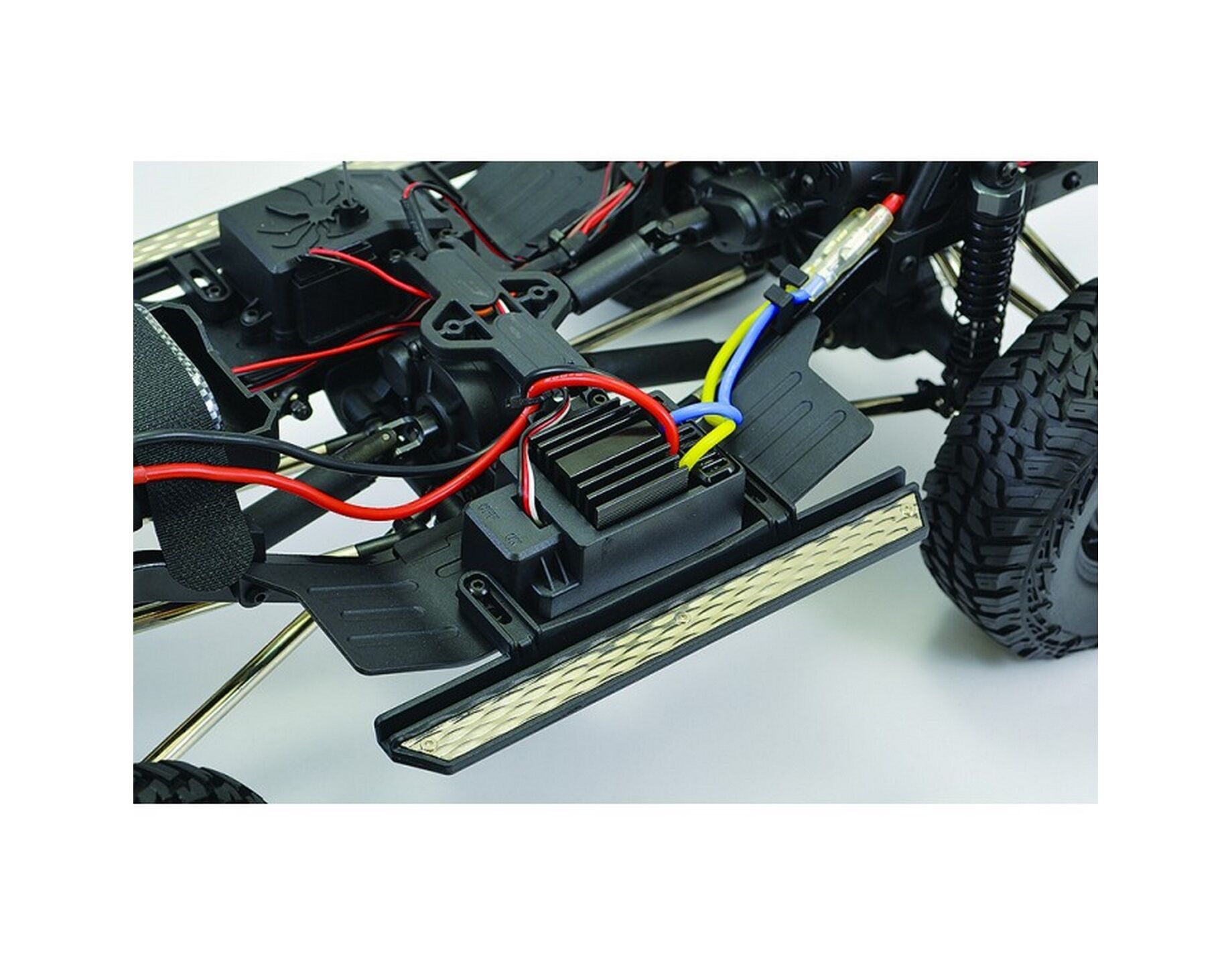

Hobbywing HW1040 40A Waterproof ESC

15kg metal geared waterproof servo

550 brushed 17 Turn motor

7.2v 2000mah NiMH battery & charger

Ball bearings

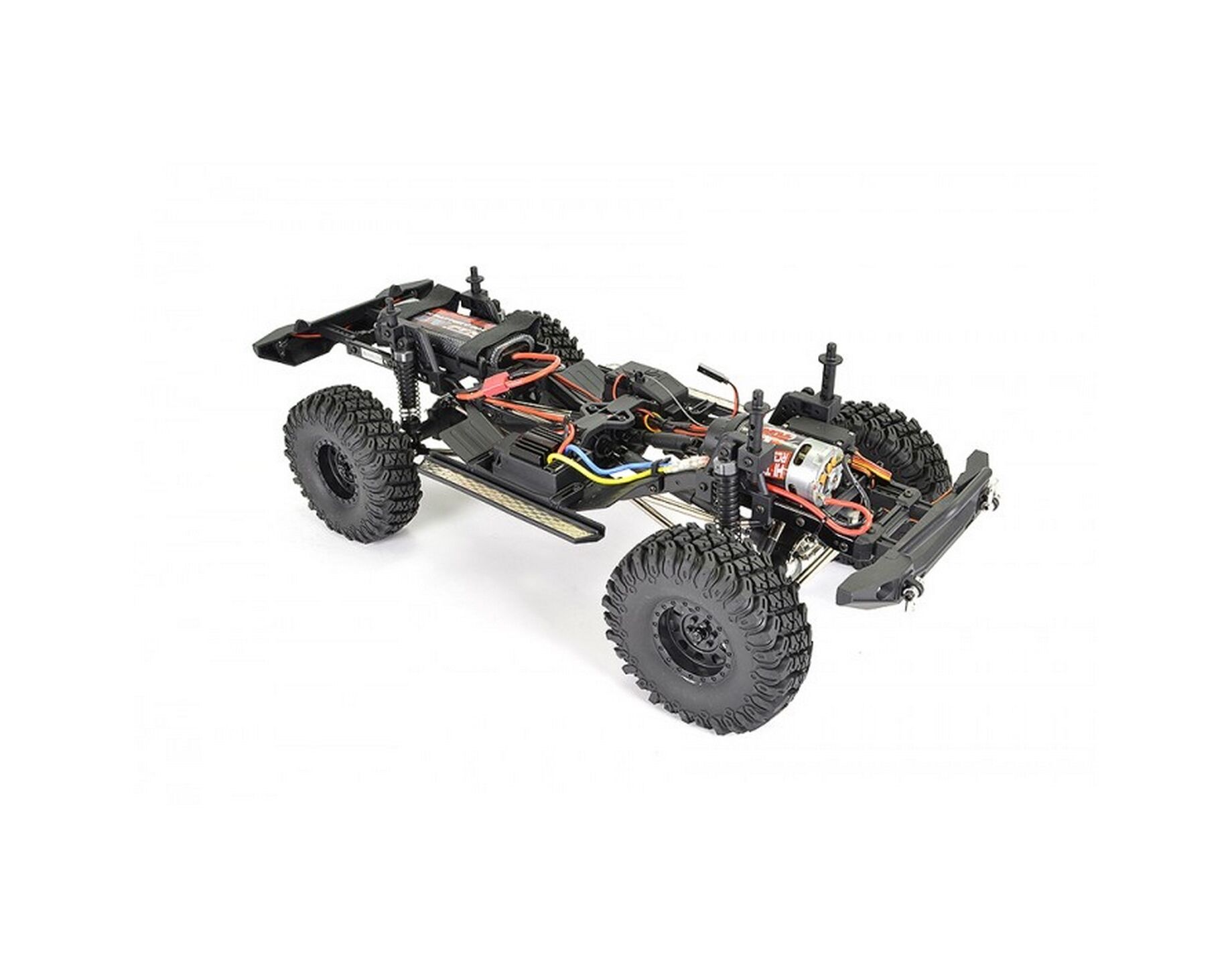

Twin rail metal frame chassis

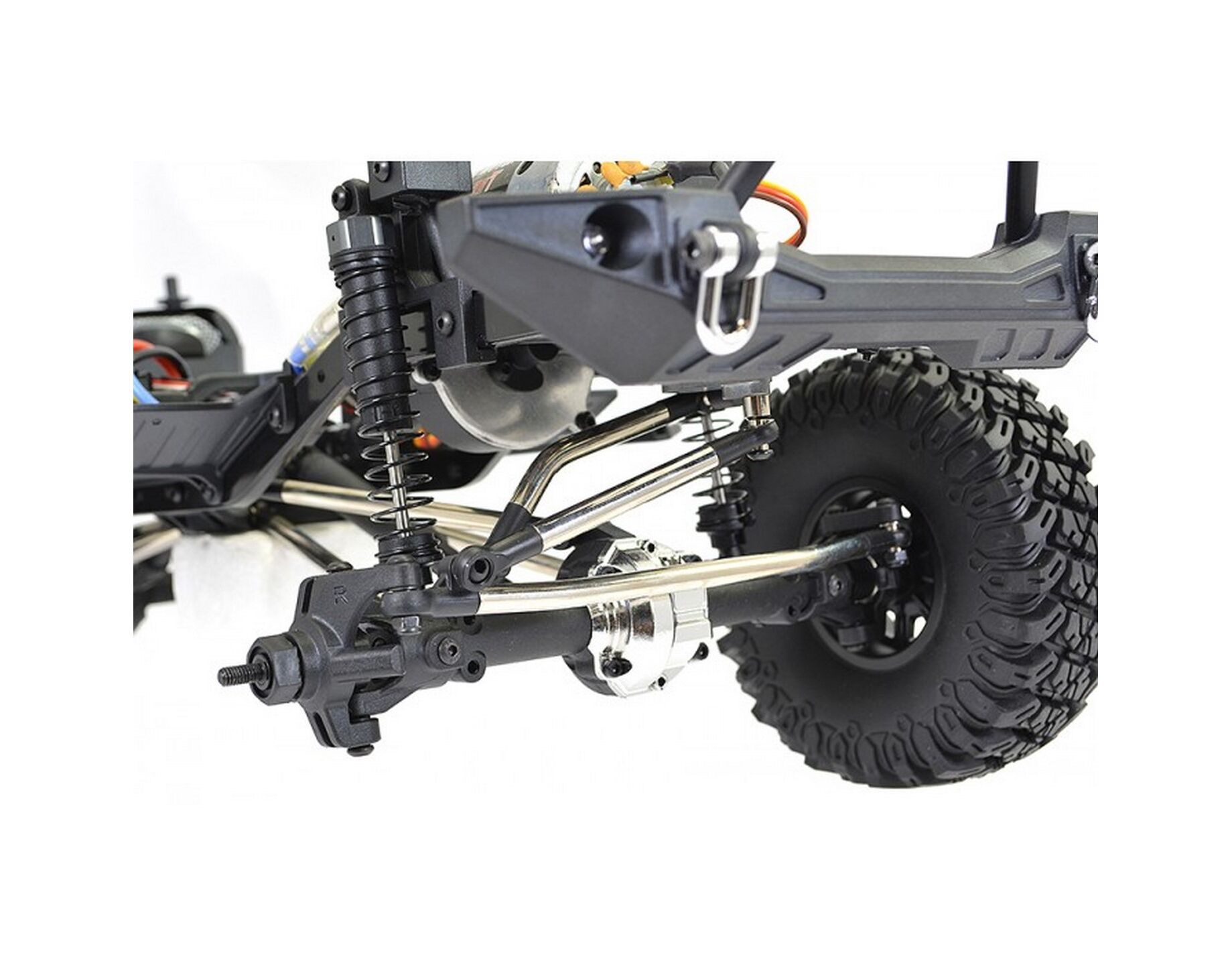

6mm steel multi-link suspension

Telescopic universal driveshafts

Steel CVA front universal driveshafts

Oil filled shock absorbers

Metal axle & transmission gears

Front & rear high clearance locked axles

Adjustable central footplate for ESC & receiver mounting

Receiver box with external third & forth channel ports for options such as LED, sound module or winch

Split transmission system for better low-speed torque output

Lower mid section accommodates interiors

Transmission slipper clutch

Raised chassis mounted steering servo & panhard bar

Front mounted motor for better weight bias

Scale styled wheels

High grip all terrain tyres

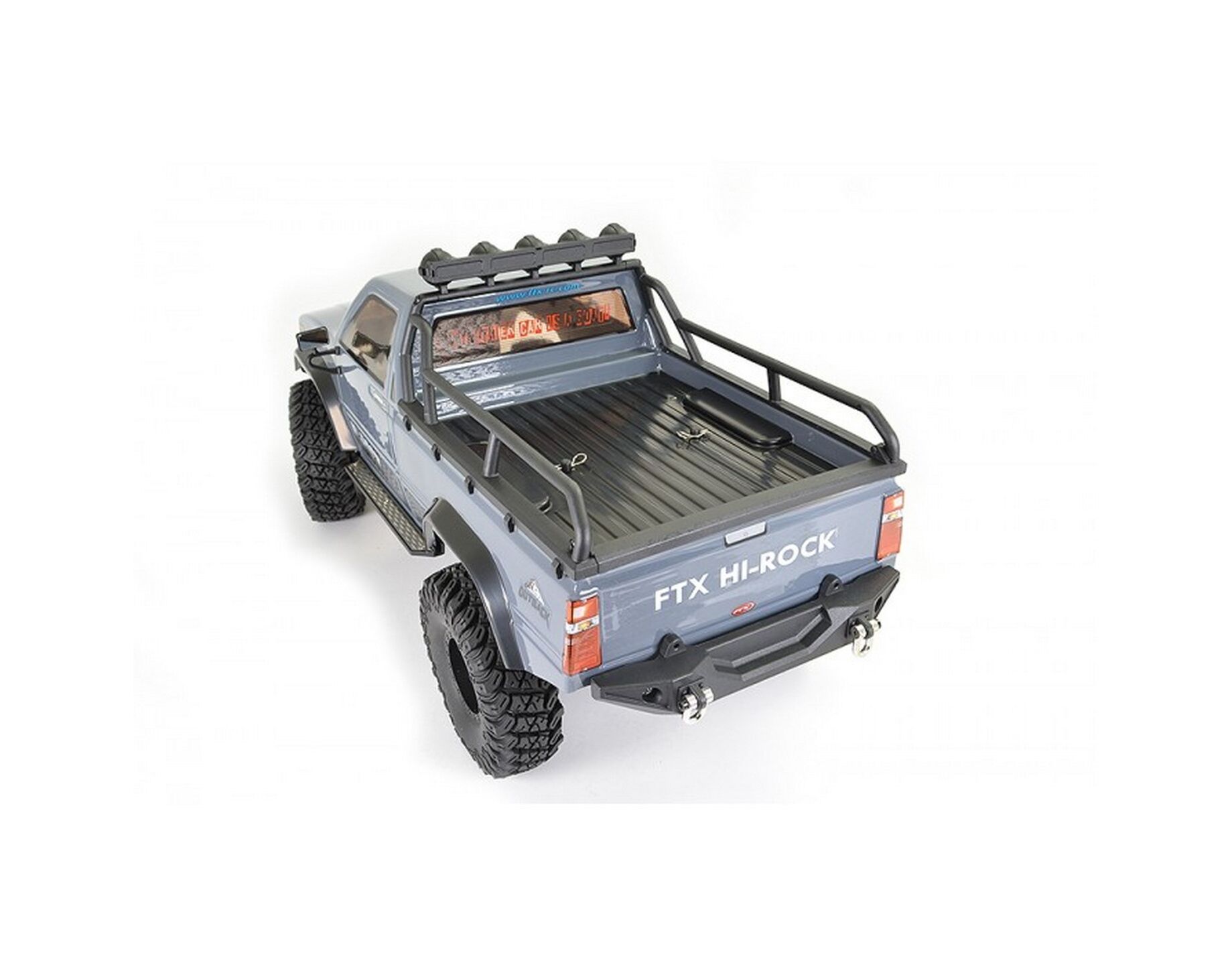

Scale looking front & rear bumpers with shackles & factory fitted LED lights

Scale side metal footplate

Moulded scale body accessories including snorkel, side mirrors & grill

Specifications

Length: 560mm

Width: 240mm

Height: 240mm

Weight: 2600g

Wheelbase: 313mm

Gear Ratio: 56.6:1 – 33.3:1

Tyre Diameter: 120mm

Wheel Diameter: 54mm

Ground Clearance: 80mm
