EZRun Brushless Set 18A 7800KV Motor + Programmer
- Order by 4 PM, delivered tomorrow! (stock items)
- 30 years of RC model building experience
- Top service by professional model builders
- Over 500 manufacturers - 200,000 products
Please sign in so that we can notify you about a reply

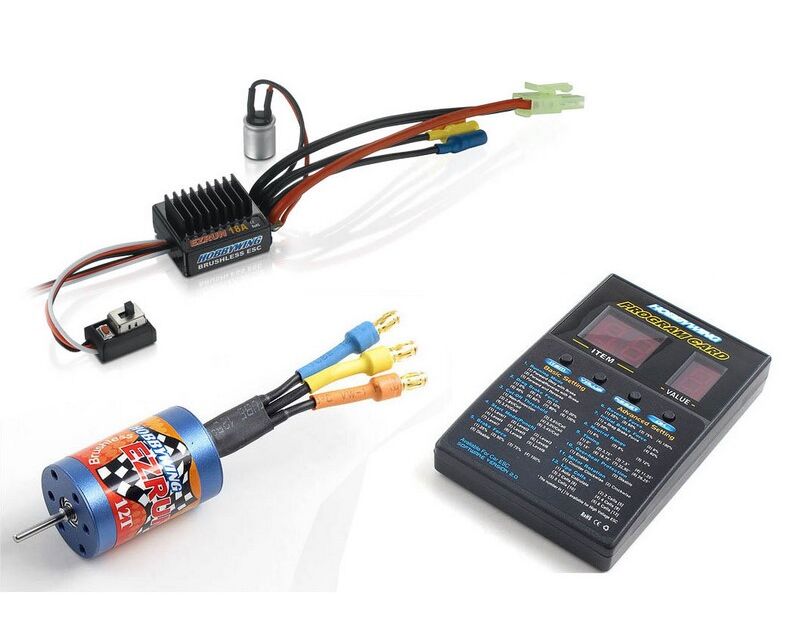

Hobbywing EZRun Brushless System w/ 18A ESC 7800KV Motor + Programmer
Komplettset mit Regler + 7800Kv Motor + Programmierkarte
Geeignet für 1/18 Micro Cars
-
Akkus von: 4-9 cells NiMH/NiCd oder 2-3 LiPo Zellen.
-
Grösse Regler: 31.5mm(L) * 24mm(B) * 15mm(H)
-
Gewicht Regler: ohne Kabel 19g
Englischer Text:
2 Specification of The Motor
|
Model |
KV |
Diameter |
Length |
Shaft |
Shaft Length |
|
|
12T/SL-2030 |
7800 |
20.0 |
30.0 |
2.00 |
10 |
|
|
Lochkreis für Befestigung 13/14/16mm |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 Features
3.1 Compatible with all sonsorless brushless motor.
3.2 Use top quality electronic components to enhance the current endurance ability of the ESC.
3.3 Excellent start-up, acceleration and linearity features.
3.4 With 2 running modes (Racing mode and Forward/Backward mode).
3.5 With 4 steps of maximum reverse force adjustment.
3.6 Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
3.7 With 4 start modes (Also called "Punch" ) from "Soft" to "Very aggressive".
3.8 Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
3.9 With 8 steps of timing adjustment to get the best compatibility with various of motors.
3.10 Easily program with only one button and compatible with pocket-sized program card.
3.10 Easily program with only one button and compatible with pocket-sized program card.
3.11 Motor uses top quality materials:
Aluminium shell (case)
High quality magnets
Copper wires of high temperature endurance
Good quality bearings.
3.12 Dustproof design for the motor
Aluminium shell (case) High quality magnets Copper wires of high temperature endurance Good quality bearings. 3.12 Dustproof design for the motor
Gebrauchsanweisung in Englisch.
Bitte Beachtet die AGB`s Betreffend: " Garantie auf Elektronik Artikel "
Programmable (external):
Ja
Manufacturer:
Hobbywing
Akku
Application:
- Hobby Einsteiger
- Hobby Racer / Basher
Fahrtenregler
Max. Operating voltage:
- 7.4 Volt
Fan size:
- 280 (D=24mm)
Lipo cell count max.:
- 2
Motoren Elektro
Shaft diameter mm:
- 2 mm
Speed KV per volt:
7800
Max. BEC ampere:
- 1
Number of poles:
- 4
Brushless Set
Connections:
- Plug and Drive (ohne Lötarbeiten)
Speed km / h approx.:
- 50
BEC tension:
- 6.0 Volt
Lüfter / Kühlkörper
Fan:
Nein
Reifen
Controller type:
- Brushless Sensorless
Diameter mm approx.:
- 20
Karosserien
Size scale:
- 1/18
Vehicle type:
- Buggy Offroad
- Stadium Truck / Truggy Offroad
- Monster Truck Offroad
- Tourenwagen Onroad
Fernsteuerung
Scope of application:
- Fahrzeuge
Output max. Watt approx.:
- 20
Empfänger
Max. Continuous current ampere:
- 20
Servohörner
Length mm approx.:
- 30
Akkustecker
Plug:
Mini Tamiya
Werkzeug
Waterproof:
Nein
