ETRONIX PHOTON 2.1FW COMBO W/13.0R 2950KV MOTOR/60

Write a review
CHF 119.90
Including tax
Not in stock at supplier. Delivery date unknown. (Delivery time min. 4 weeks)
+ −
Add to comparison list Add to wish list Rate this product
ET0420

Further products by ETRONIX >

  • Order by 4 PM, delivered tomorrow! (stock items)
  • 30 years of RC model building experience
  • Top service by professional model builders
  • Over 500 manufacturers - 200,000 products

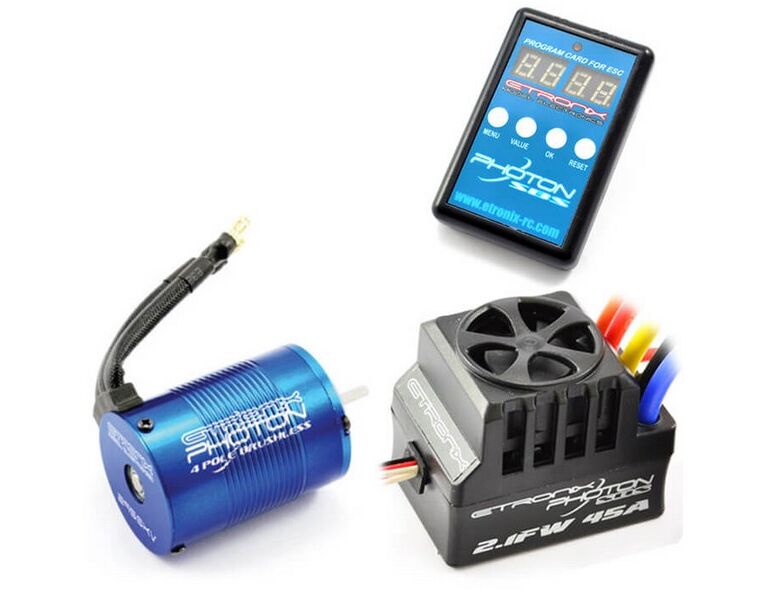

ETRONIX PHOTON 2.1FW COMBO W/13.0R 2950KV MOTOR/60A ESC

The convenience and performance of brushless technology is available for everyone with the Photon Sensorless Waterproof System from Etronix. Simple to set-up and with a range of sensible KV rated motors for most r/c car applications and abilities the Photon is the ideal brushless start-up package or upgrade from a stock brushed set-up.An ideal choice for any 1/10th buggy, truggy, short course or truck application.

With the supplied programmable set up card (ET0107) the user can finely tune ten different parameters within the ESC to suit their particular needs.

When choosing your new ESC/ESC and motor combo, please take note of the relevant motor and battery cell count limits.

ESC MOTOR LIMIT:

2S Battery - 4350KV

3S Battery - 3450KV

4S Battery - 2950KV

ADJUSTABLE PARAMETERS

Cutoff Voltage (automatically detects the number of cells)

Running Mode (forward w/o reverse, forward/reverse, forward with pause then reverse)

Motor Timing (very low, low, normal, high, very high)

Initial Acceleration (low, medium, high, very high)

Throttle Percent Reverse (20% through to 100%)

Throttle Limit (0% through to 90%)

Percentage Braking (10% through to 100%)

Percentage Drag Brake (0% through to 30%)

Motor Rotation (normal, reverse)

Neutral Range (deadband setting 2% through to 10%)

ESC SPEC CHECK:

5-10 Cell NiMH/NiCd) or 2-3S LiPo

BEC Output: 6V/2A

Resistance: 0.0007ohm

Motor Type: 4 Pole sensorless brushless motor

Max Continuous Current: 60A

Burst Current: 380A

Waterproof: Yes

Dimensions : 44x32x37mm (without fan)

Weight : 95g

Manufacturer:
ETRONIX
